Hexagon nut

  • Brand:

    T,TGR,XDM,OEM as requirement
  • Brief:

    DIN934 hex nuts
  • Surface:

    Black oxide, Nickel, Possivation, Tin, Zinc Clear, Zinc Yellow, Zinc black
  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc
  • Size:

    M1-M160,1/4-6,Custom-made
  • MOQ:

    According to size
inquiry now
product details

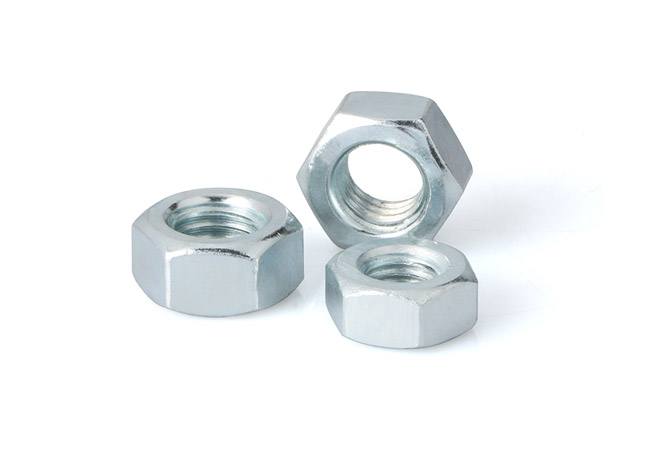

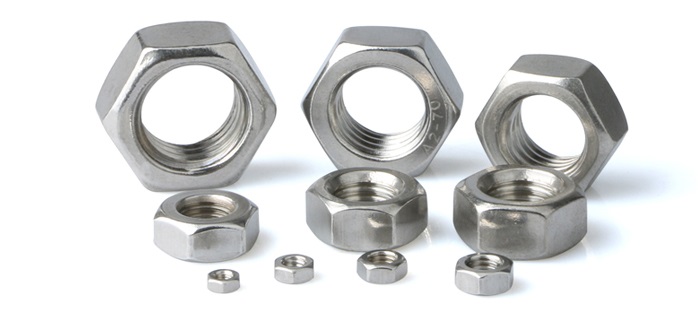

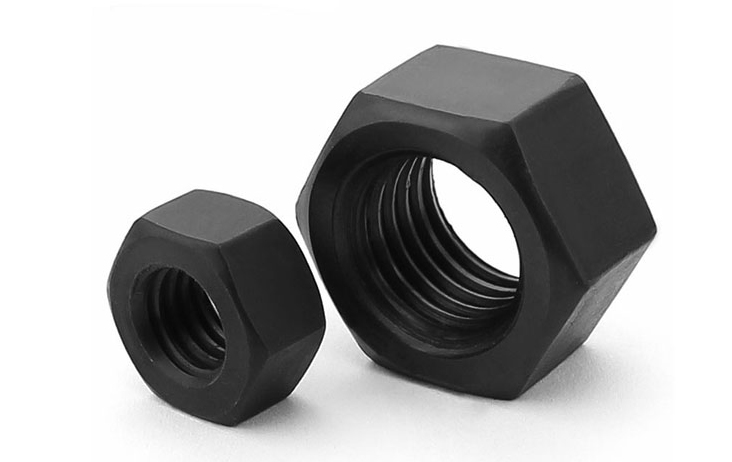

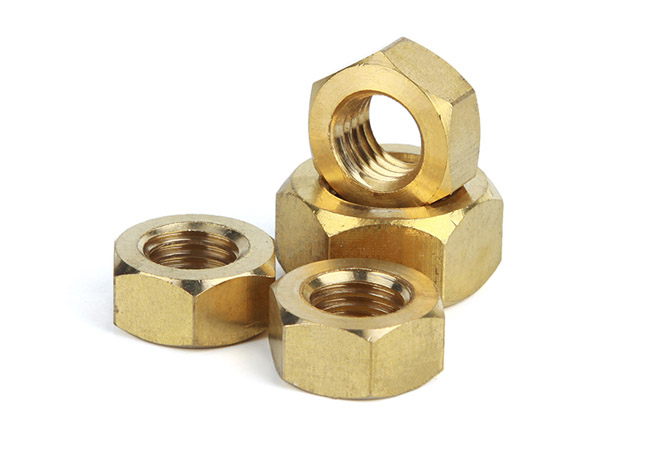

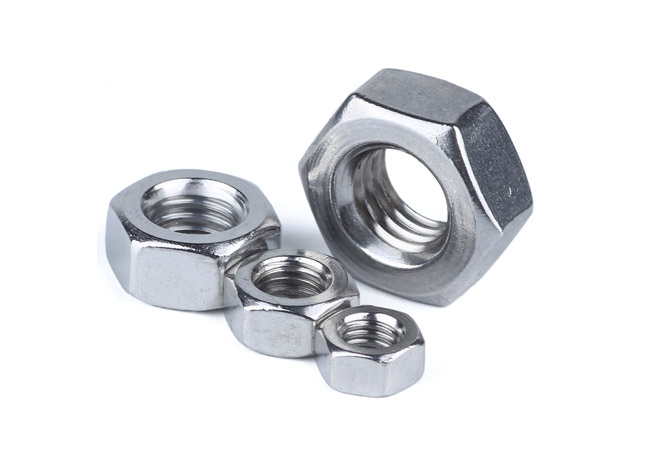

Hex nuts are one of the most common nuts available and are used with anchors, bolts, screws, studs, threaded rods and on any other fastener that has machine screw threads. Hex is short for hexagon, which means they have six sides. Hex nuts are also known as: finished hex nuts, hex full nuts. Lock washers may used with hex nuts .

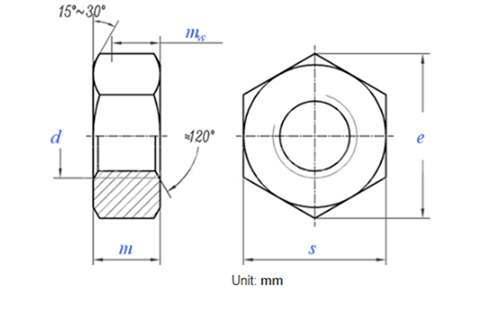

Thread Size d M1 M1.2 M1.4 M1.6 (M1.7) M2 (M2.3) M2.5 (M2.6) M3 (M3.5) M4 M5 M6 (M7) M8
P Pitch Pitch 0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.45 0.45 0.5 0.6 0.7 0.8 1 1 1.25
Fine thread / / / / / / / / / / / / / / / 1
Fine thread / / / / / / / / / / / / / / / /
m max=nominal size 0.8 1 1.2 1.3 1.4 1.6 1.8 2 2 2.4 2.8 3.2 4 5 5.5 6.5
min 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.75 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14
mw min 0.44 0.6 0.76 0.84 0.92 1.08 1.24 1.4 1.4 1.73 2.04 2.32 2.96 3.76 4.16 4.91
s max=nominal size 2.5 3 3 3.2 3.5 4 4.5 5 5 5.5 6 7 8 10 11 13
min 2.4 2.9 2.9 3.02 3.38 3.82 4.32 4.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73
min 2.71 3.28 3.28 3.41 3.82 4.32 4.88 5.45 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38
* - - - - - - - - - - - - - - - -
per 1000 units ≈ kg 0.03 0.054 0.063 0.076 0.1 0.142 0.2 0.28 0.72 0.384 0.514 0.81 1.23 2.5 3.12 5.2
Thread Size d M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48
P Pitch Pitch 1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
Fine thread 1 1.5 1.5 1.5 1.5 2 1.5 2 2 2 2 3 3 3 3 3
Fine thread 1.25 1.25 / / 2 1.5 2 / / / / / / / / /
m max=nominal size 8 10 11 13 15 16 18 19 22 24 26 29 31 34 36 38
min 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4
mw min 6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16 16.56 18.16 19.76 21.92 23.52 25.9 27.5 29.1
s max=nominal size 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75
min 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.1 68.1 73.1
min 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6
* - - - - - - - - - - - - - - - -
per 1000 units ≈ kg 11.6 17.3 25 33.3 49.4 64.4 79 110 165 223 288 393 502 652 800 977
Thread Size d (M52) M56 (M60) M64 (M68) M72 (M76) M80 (M85) M90 M100 M110 M125 M140 M160
P Pitch Pitch 5 5.5 5.5 6 6 / / / / / / / / / /
Fine thread 3 4 4 4 4 6 6 6 6 6 6 6 6 6 6
Fine thread / / / / / 4 4 4 4 4 4 4 4 / /
m max=nominal size 42 45 48 51 54 58 61 64 68 72 80 88 100 112 128
min 40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1 66.1 70.1 78.1 85.8 97.8 109.8 125.5
mw min 32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7 52.9 56.1 62.5 68.6 78.2 87.8 100
s max=nominal size 80 85 90 95 100 105 110 115 120 130 145 155 180 200 230
min 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5 152.5 177.5 195.4 225.4
min 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02 172.32 200.57 220.8 254.7
* - - - - - - - - - - - 170 196 216 248
per 1000 units ≈ kg 1220 1420 1690 1980 2300 2670 3040 3440 3930 4930 6820 8200 13000 17500 26500
