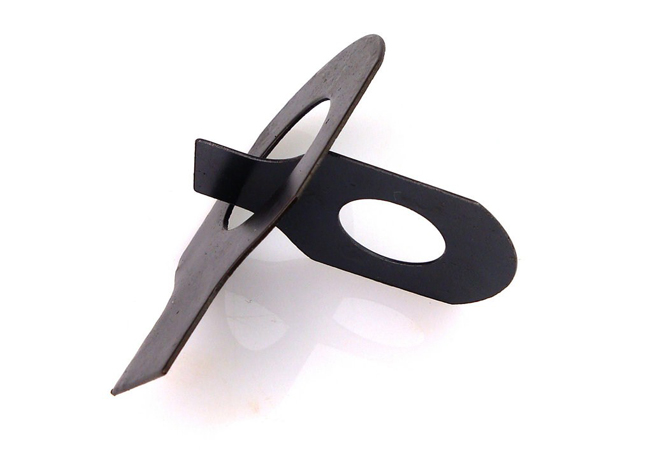

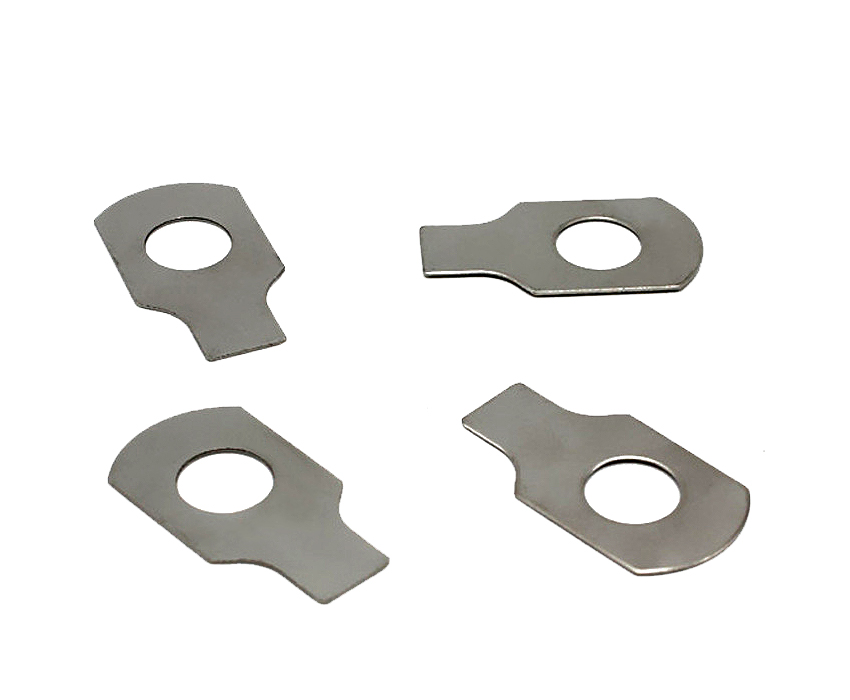

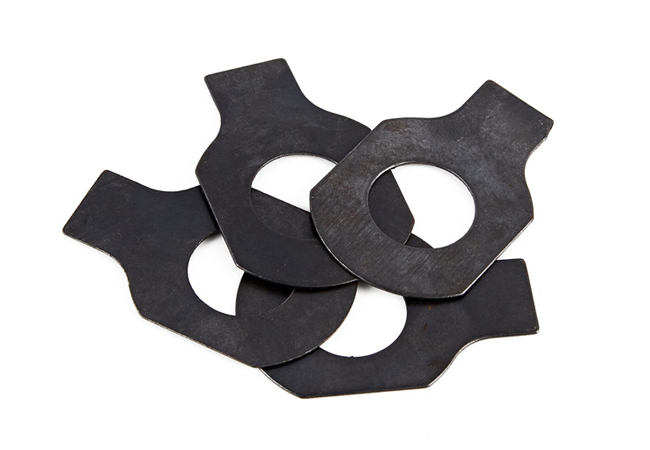

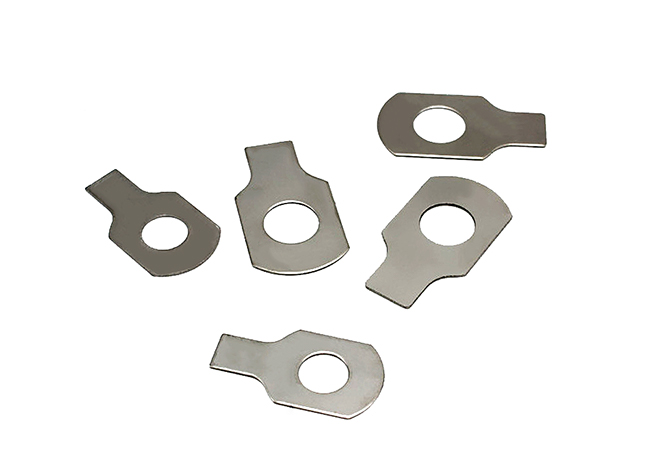

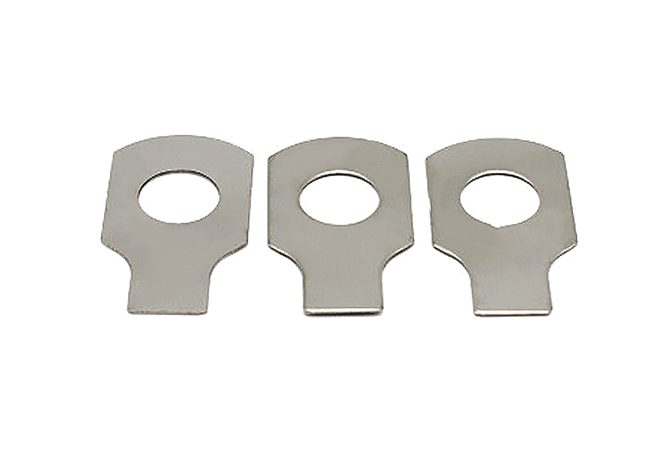

Tab washers with long tab

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN93, CNS 159, Tab Washer with long Tab

  • Surface:

    Black, Plain Color,Galvanized, etc.

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    3.2-54,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Tab washers with long tabs require very little turning force using which they efficiently handle the torque. These washers can also be easily sealed to prevent any water loss while being operated on.

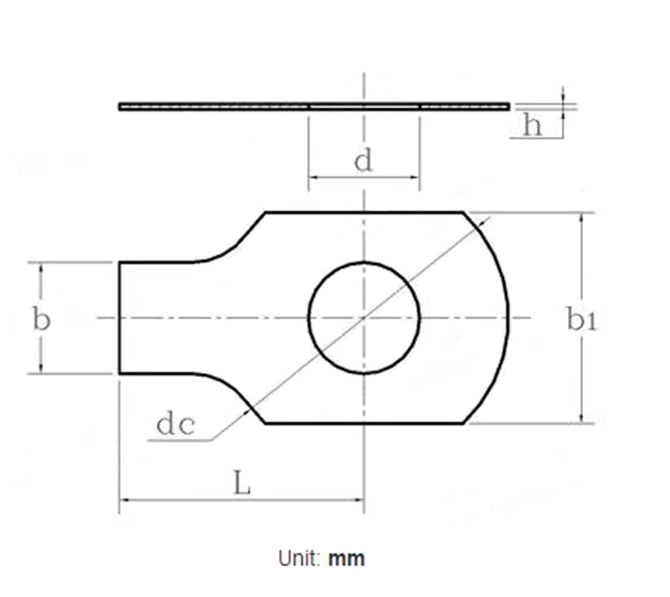

For thread diameter M2.5 M3 M4 M5 M6 M8 M10 M12 (M14) M16
d max 2.95 3.5 4.5 5.6 6.76 8.76 10.93 13.43 15.43 17.43
min 2.7 3.2 4.2 5.3 6.4 8.4 10.5 13 15 17
dc max 8 10 14 17 19 22 26 32 32 40
min 7.64 9.64 13.57 16.57 18.48 21.48 25.48 31.38 31.38 39.38
L Nominal Size 10 12 14 16 18 20 22 28 28 32
min 9.71 11.65 13.65 15.65 17.65 19.58 21.58 27.58 27.58 31.5
max 10.29 12.35 14.35 16.35 18.35 20.42 22.42 28.42 28.42 32.5
h 0.4 0.4 0.4 0.5 0.5 0.5 0.5 1 1 1
b 3 4 5 6 7 8 10 12 12 15
b1 6 7 9 11 12 16 19 21 25 32
per 1000 units ≈ kg 0.17 0.25 0.42 0.74 0.91 1.27 1.7 4.8 5.12 8.21
For thread diameter (M18) M20 (M22) M24 (M27) M30 M36 M42 M48
d max 19.52 21.52 23.52 25.52 28.52 31.62 37.62 43.62 50.62
min 19 21 23 25 28 31 37 43 50
dc max 45 45 50 50 58 63 75 88 100
min 44.38 49.38 49.38 49.38 57.26 62.26 74.26 87.13 99.13
L Nominal Size 36 36 42 42 48 52 62 70 80
min 35.5 36.5 41.5 41.5 47.5 51.4 61.4 69.4 79.4
max 36.5 36.5 42.5 42.5 48.5 52.6 62.6 70.6 80.6
h 1 1 1 1 1.5 1.5 1.5 1.5 1.5
b 18 18 20 20 24 26 30 35 40
b1 38 38 39 42 48 55 65 78 90
per 1000 units ≈ kg 10.93 11.83 12.61 12.68 25.81 31.17 43.81 60.28 77.9
