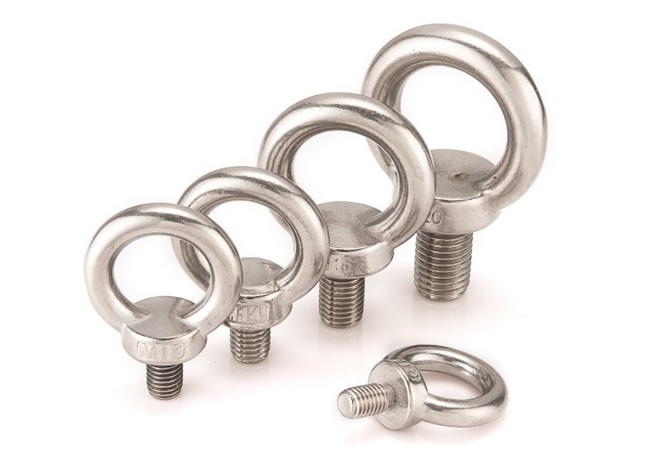

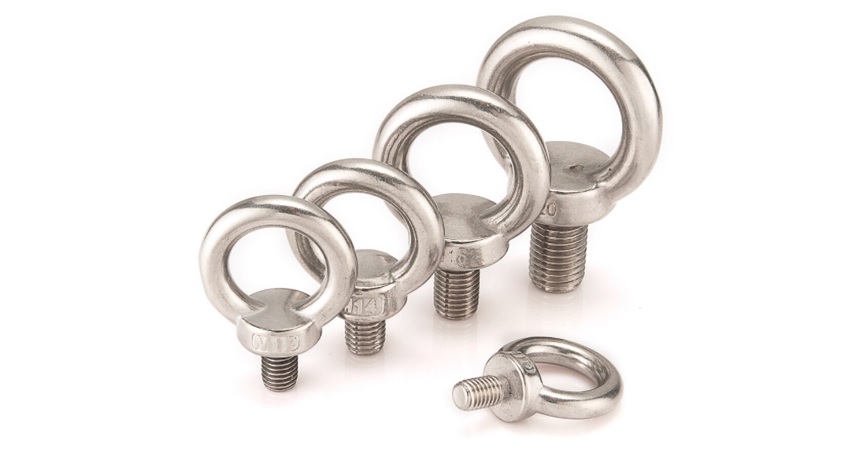

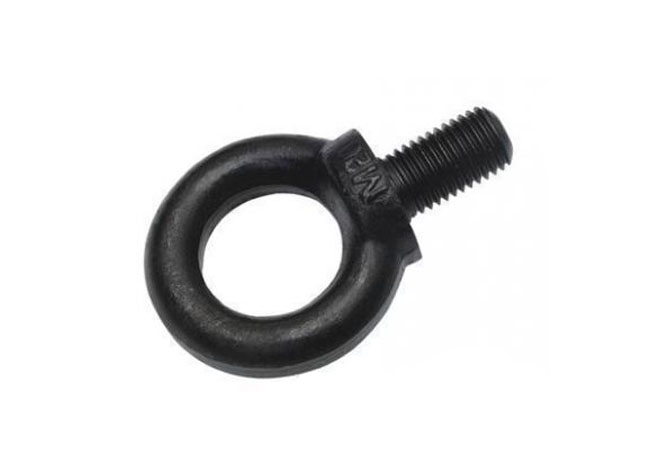

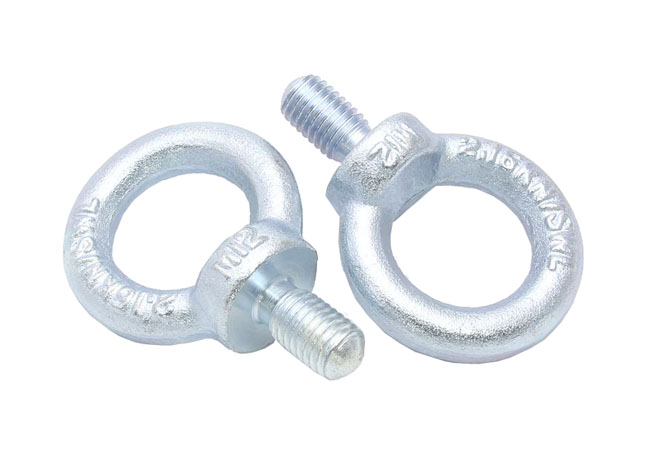

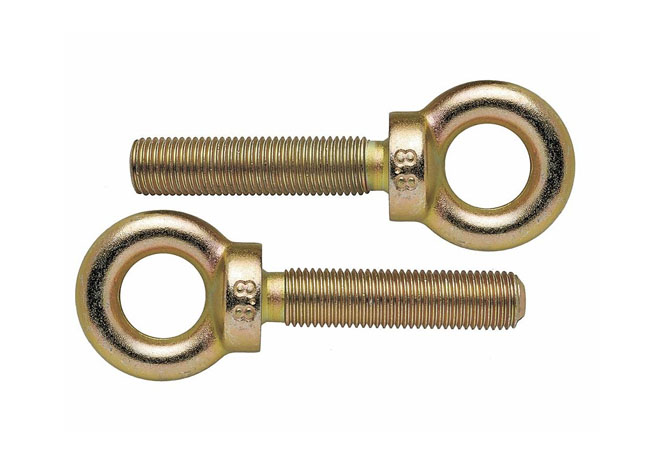

Lifting Eye Bolts

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

  • Surface:

    HDG,plain,black,galvanized,yellow zinc,nickel plated,dacromet,etc

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M8-M100,1/4-2,Custom-made

  • MOQ:

    According to size
inquiry now
product details

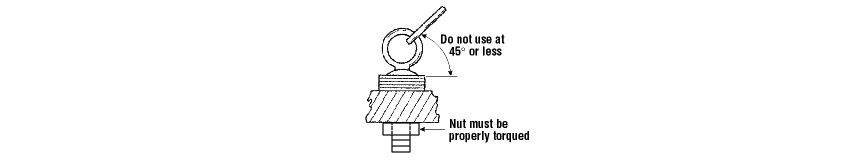

Used as a lifting or securement point,eye bolts are some of the most commonly used rigging fittings.

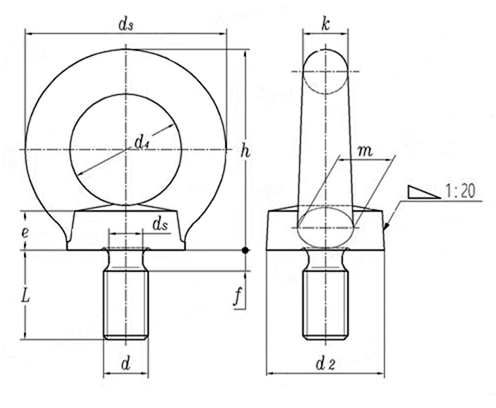

Screw Thread d M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33
d2 Nominal Size 20 20 25 30 35 35 40 40 50 50 65 65 75
min 19.5 19.5 24.5 29.5 34.5 34.5 39.5 39.5 49.4 49.4 64.3 64.3 74.3
max 20.9 20.9 25.9 30.9 36.1 36.1 41.1 41.1 51.2 51.2 66.3 66.3 76.5
d3 Nominal Size 36 36 45 54 63 63 72 72 90 90 108 108 126
min 35.5 35.5 44.5 53.5 62.5 62.5 71.5 71.5 89.4 89.4 107.3 107.3 125.2
max 37.1 37.1 46.1 55.1 64.1 64.1 73.1 73.1 91.2 91.2 109.5 109.5 127.7
d4 Nominal Size 20 20 25 30 35 35 40 40 50 50 60 60 70
min 19.1 19.1 24.1 29.1 33.9 33.9 38.9 38.9 48.8 48.8 58.7 58.7 68.5
max 20.5 20.5 25.5 30.5 35.5 35.5 40.5 40.5 50.6 50.6 60.7 60.7 70.7
e Nominal Size 6 6 8 10 12 12 14 14 18 18 22 22 26
min 5.5 5.5 7.5 9.5 11.5 11.5 13.5 13.5 17.5 17.5 21.4 21.4 25.3
max 6.9 6.9 8.9 10.9 12.9 12.9 14.9 14.9 19.1 19.1 23.2 23.2 27.3
f max 2.5 2.5 3 3.5 4 4 5 5 6 6 7 7 8
ds max=nominal size 4.4 6 7.7 9.4 11 13 14.4 16.4 18.4 19.6 22.6 25 28
min 4.22 5.82 7.48 9.18 10.73 12.73 14.13 16.13 18.07 19.27 22.29 24.67 27.61
h Nominal Size 36 36 45 53 62 62 71 71 90 90 109 109 128
min 35.5 35.5 44.5 52.5 61.5 61.5 70.5 70.5 89.4 89.4 108.3 108.3 127.2
37.1 37.1 46.1 54.1 63.1 63.1 72.1 72.1 91.2 91.2 110.5 110.5 129.7
k Nominal Size 8 8 10 12 14 14 16 16 20 20 24 24 28
min 7.5 7.5 9.5 11.5 13.5 13.5 15.5 15.5 19.5 19.5 23.4 23.4 27.3
max 8.9 8.9 10.9 12.9 14.9 14.9 16.9 16.9 21.1 21.1 25.2 25.2 29.3
L Nominal Size 13 13 17 20.5 27 27 30 30 36 36 45 45 54
min 12.65 12.65 16.65 20.08 26.58 26.58 29.58 29.58 35.5 35.5 44.5 44.5 53.5
max 13.35 13.35 17.35 20.92 27.42 27.42 30.42 30.42 36.5 36.5 45.5 45.5 54.5
m Nominal Size 10 10 12 14 16 16 19 19 24 24 28 28 32
min 9.5 9.5 11.5 13.5 15.5 15.5 18.5 18.5 23.5 23.5 27.4 27.4 31.3
max 10.9 10.9 12.9 14.9 16.9 16.9 19.9 19.9 25.1 25.1 29.2 29.2 33.3
per unit ≈ kg 0.0572 0.06 0.11 0.18 0.27 0.28 0.438 0.45 0.725 0.74 1.624 1.66 2.596
Screw Thread d M36 M39 M42 M45 M48 M52 M56 M60 M64 M72×6 M80×6 M100×6 　
d2 Nominal Size 75 85 85 100 100 110 110 120 120 150 170 190 /
min 74.3 84.3 84.3 99.2 99.2 108.9 108.9 118.9 118.9 148.8 168.5 188.5 /
max 76.5 86.5 86.5 101.7 101.7 112.1 112.1 122.1 122.1 152.4 173 193 /
d3 Nominal Size 126 144 144 166 166 184 184 206 206 260 296 330 /
min 125.2 143.2 143.2 164.9 164.9 182.8 182.8 204.8 204.8 258.5 294.3 328.3 /
max 127.7 145.7 145.7 168.1 168.1 186.4 186.4 208.4 208.4 263 299.3 333.3 /
d4 Nominal Size 70 80 80 90 90 100 100 110 110 140 160 180 /
min 68.5 78.5 78.5 88.3 88.3 98.1 98.1 107.9 107.9 137.6 157.3 177 /
max 70.7 80.7 80.7 90.8 90.8 100.9 100.9 111.1 111.1 141.2 161.3 181.5 /
e Nominal Size 26 30 30 35 35 38 38 42 42 50 55 60 /
min 25.3 29.3 29.3 34.2 34.2 37.1 37.1 41.1 41.1 48.9 53.8 58.8 /
max 27.3 31.3 31.3 36.7 36.7 39.9 39.9 43.9 43.9 52.1 57.4 62.4 /
f max 8 9 9 10 10 11 11 12 12 12 12 12 /
ds max=nominal size 30.3 33.3 35.6 38.6 41 45 48.3 52.3 55.7 63.7 71.7 91.7 /
min 29.91 32.91 35.21 38.21 40.61 44.54 47.91 51.84 55.24 63.24 71.24 91.16 /
h Nominal Size 128 147 147 168 168 187 187 208 208 260 298 330 /
min 127.2 146.2 146.2 166.9 166.9 185.8 185.8 206.8 206.8 258.5 296.3 328.3 /
129.7 148.7 148.7 170.1 170.1 189.4 189.4 210.4 210.4 263 301.3 333.3 /
k Nominal Size 28 32 32 38 38 42 42 48 48 60 68 75 /
min 27.3 31.3 31.3 37.2 37.2 41.1 41.1 47.1 47.1 58.9 66.8 73.8 /
max 29.3 33.3 33.3 39.7 39.7 43.9 43.9 49.9 49.9 62.1 70.4 77.4 /
L Nominal Size 54 63 63 68 68 78 78 90 90 100 112 130 /
min 53.5 62.4 62.4 67.4 67.4 77.4 77.4 89.3 89.3 99.3 111.3 129.2 /
max 54.5 63.6 63.6 68.6 68.6 78.6 78.6 90.7 90.7 100.7 112.7 130.8 /
m Nominal Size 32 38 38 46 46 50 50 58 58 72 80 88 /
min 31.3 37.3 37.3 45.2 45.2 49.1 49.1 57.1 57.1 70.9 78.8 86.8 /
max 33.3 39.5 39.5 47.7 47.7 51.9 51.9 59.9 59.9 74.1 82.4 90.4 /
per unit ≈ kg 2.65 3.78 4.03 6.244 6.38 8.566 8.8 12.13 12.4 23.3 34.2 49.1 /
