T head bolt

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

  • Surface:

    HDG,plain,black,galvanized,yellow zinc,nickel plated,dacromet,etc

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M5-M48,Custom-made

  • MOQ:

    According to size
inquiry now
product details

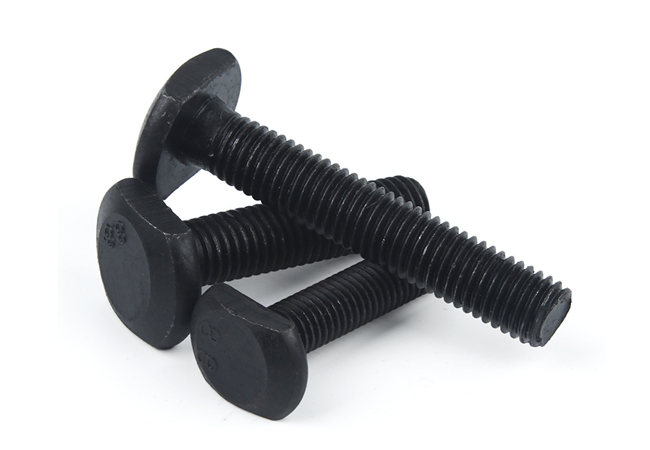

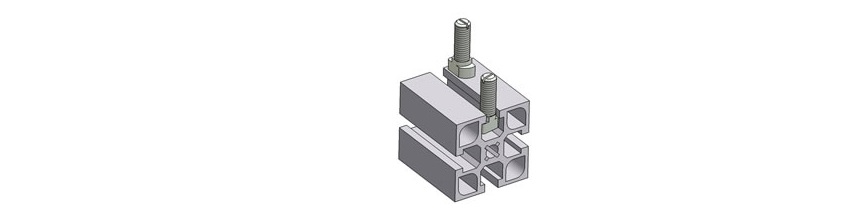

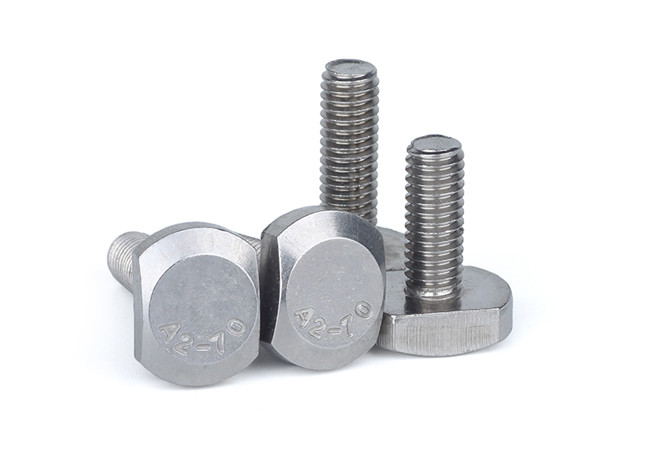

T Head bolt has a T shape or square shape head. Its a common used fastener that supply with a nut to joint the target object which has a T shaped slot and with its T shaped head sit flush or below the surface of the surrounding material.

Screw Thread d M5 M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48
P Pitch 0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 3.5 4.5 5
b L≤125 16 18 22 26 30 38 46 54 66 78 / /
125＜L≤200 / / 28 32 36 44 52 60 72 84 96 108
L＞200 / / / / / 57 65 73 85 97 109 121
dk 12 16 20 25 30 38 46 58 75 85 95 105
k max 4.24 5.24 6.24 7.29 8.89 11.95 14.35 16.35 20.42 24.42 28.42 32.5
min 3.76 4.76 5.76 6.71 8.31 11.25 13.65 15.65 19.58 23.58 27.58 31.5
s max=nominal size 9 12 14 18 22 28 34 44 56 67 76 86
min 8.64 11.57 13.57 17.57 21.16 27.16 33 43 54.8 65.1 74.1 83.8
ds max=nominal size 5 6 8 10 12 16 20 24 30 36 42 48
min 4.7 5.7 7.64 9.64 11.57 15.57 19.48 23.48 29.48 35.38 41.38 47.38
h 2.8 3.4 4.1 4.8 6.5 9 10.4 11.8 14.5 18.5 22 26
x max 2 2.5 3.2 3.8 4.2 5 6.3 7.5 8.8 10 11.3 12.5
Weight of per 1000 steel products(≈kg) - - - - - - - - - - - -
