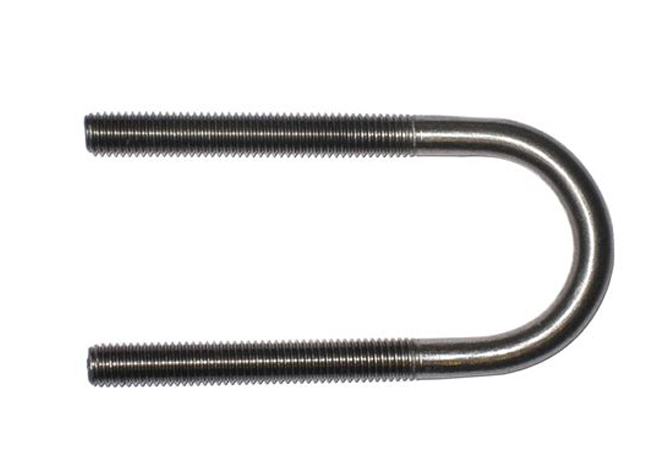

U bolt

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

  • Surface:

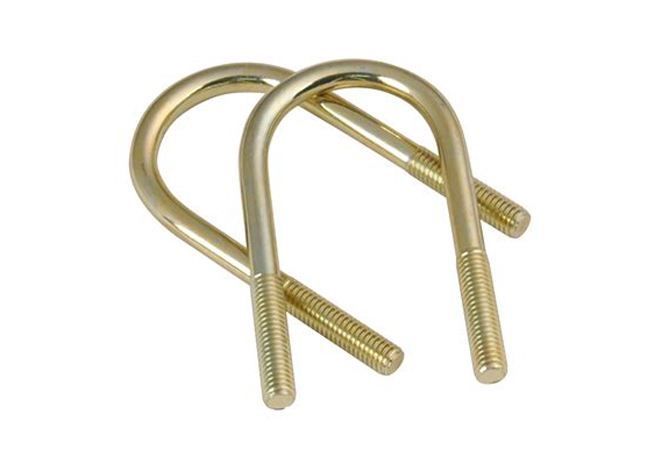

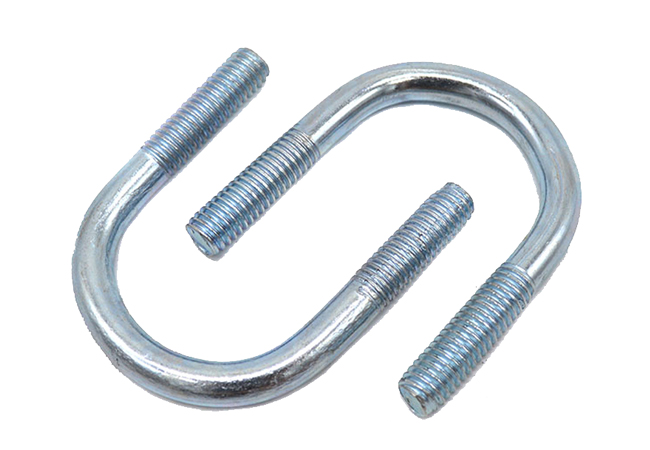

    HDG,plain,black,galvanized,yellow zinc,nickel plated,dacromet,etc

  • Material:

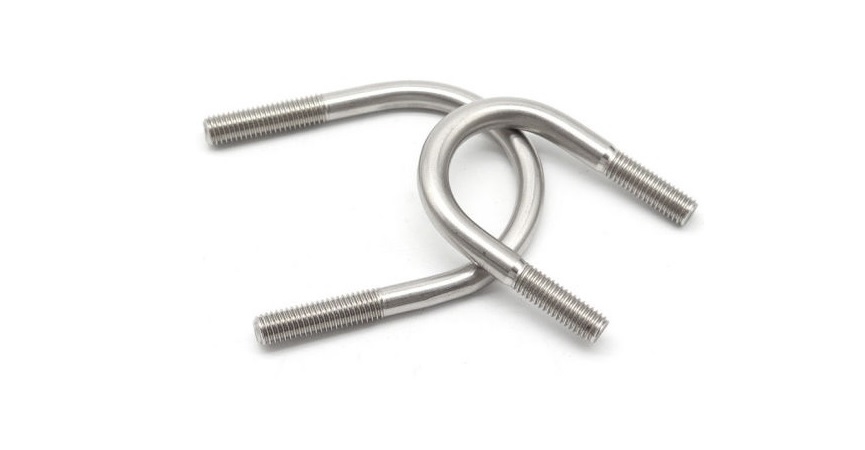

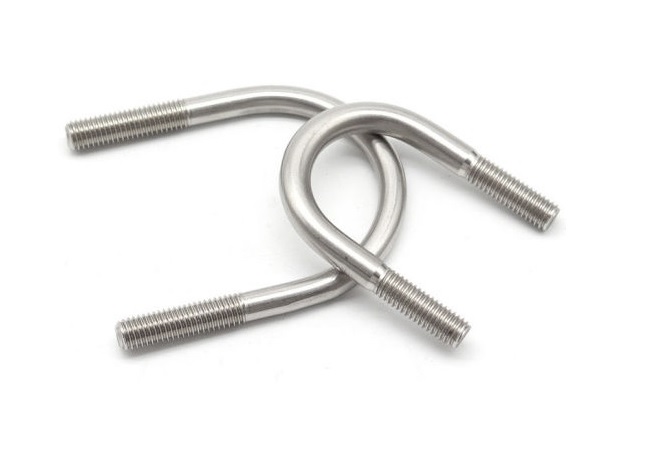

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M6-M24,Custom-made

  • MOQ:

    According to size
inquiry now
product details

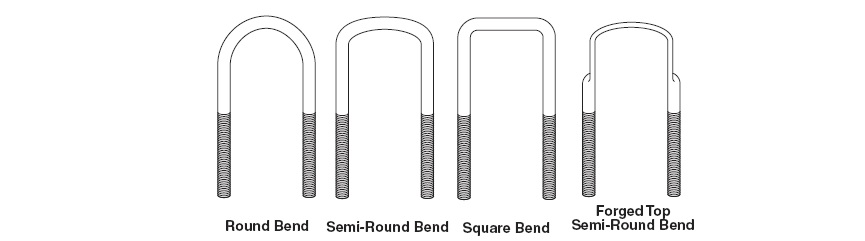

U Bolts are used heavily in building and construction. The u,or bent,shape of the bolt keeps it firmly in place,adding security and stability to the join.

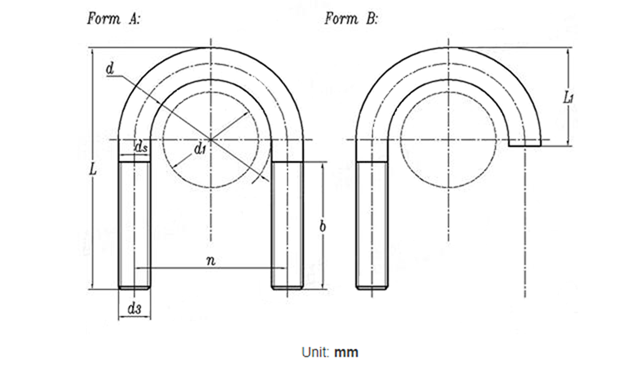

Nominal Diameter d 30 38 46 52 64 82 94 120 148
d1 d1 25~26.9 30~33.7 38~42.4 44.5~48.3 57~60.3 76.1 88.9 108~114.3 133~139.7
Nominal Metric 20 25 32 40 50 65 80 100 125
Inch 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 -
b ① 40 40 50 50 50 50 50 60 60
ds 10 10 10 10 12 12 12 16 16
d3 M10 M10 M10 M10 M12 M12 M12 M16 M16
L ① 70 76 86 92 109 125 138 - -
L1 28 31 37 40 49 57 66 171 191
per 1000 units≈kg Type A 9.4 10.5 12 12.9 22.2 25.9 28.8 64 72.7
Type B 6.8 7.7 9 9.7 16.8 19.8 22.4 - -
Nominal Diameter d 176 202 228 282 332 378 428 530 -
d1 d1 159~168.3 (191)~193.7 216~219.1 267~273 318~323.9 355.6~368 406.4~419 508~521 -
Nominal Metric 150 -175 200 250 300 350 400 500 -
Inch - - - - - - - - -
b ① 60 60 70 70 70 70 70 70 -
ds 16 16 20 20 20 24 24 24 -
d3 M16 M16 M20 M20 M20 M24 M24 M24 -
L ① - - - - - - - - -
L1 217 249 283 334 385 435 487 589 -
per 1000 units≈kg Type A 83.4 95.8 169.8 202.8 235 382 429 522 -
Type B - - - - - - - - -
① L and h1 are minimum dimensions and apply to a plate thickness of 10 mm.
