Inner hexagon expansion anchor bolt

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

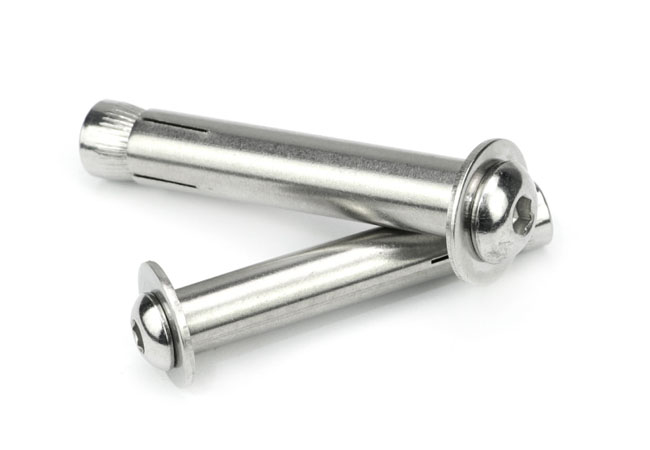

    hex socket round head anchor bolt

  • Surface:

    Black oxide,Nickel, possivation,Tin, Zinc Clear, Zinc Yellow, Zinc black

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M6-M24

  • MOQ:

    According to size
inquiry now
product details

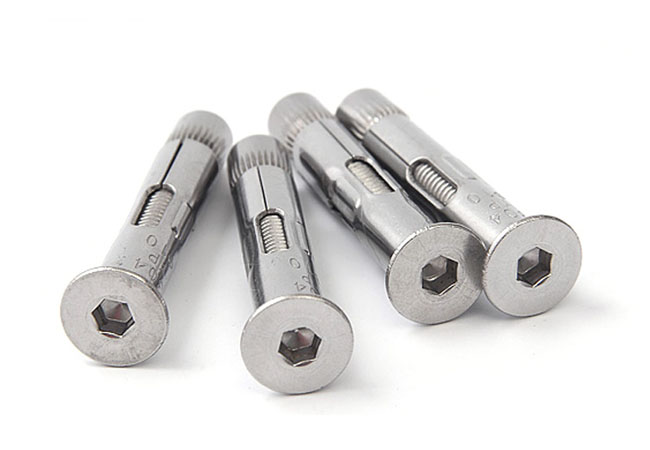

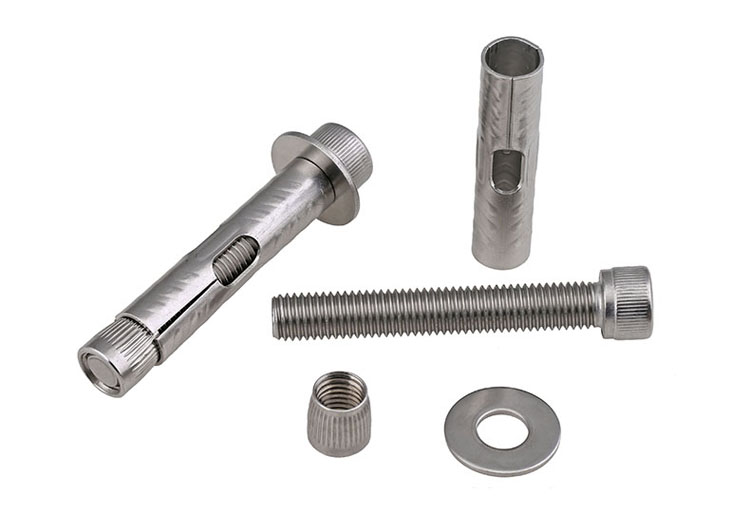

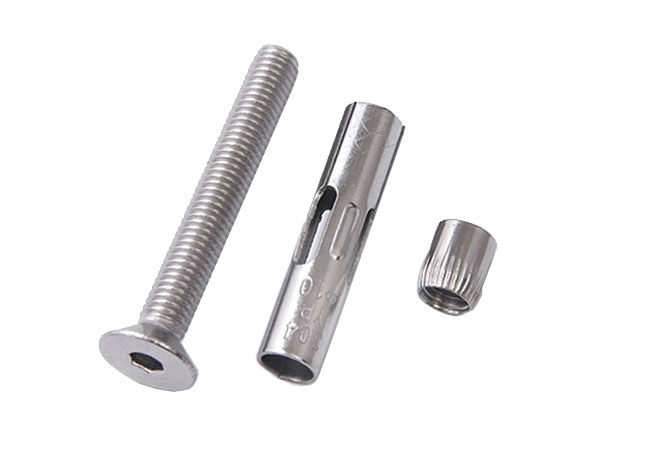

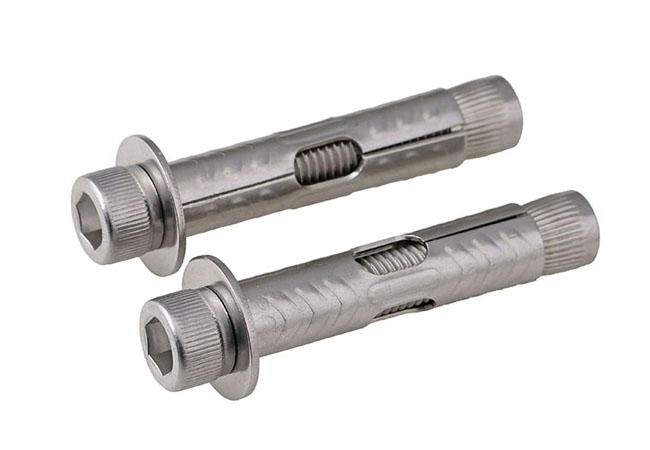

These are hex socket sleeve anchors, these have a sleeve that expands as you tighten the bolt for a secure hold in block and brick. They're often used to mount shelving and anchor bollards and guard rails.

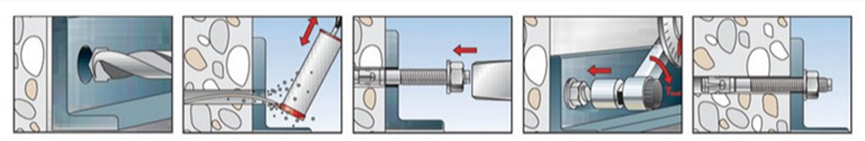

1. Drill
2. Clean the hole
3. Anchor objects aligned holes, insert the anchor bolt
4. Rotating the nut clockwise
5. Do not stop until you cannot tun screw any more

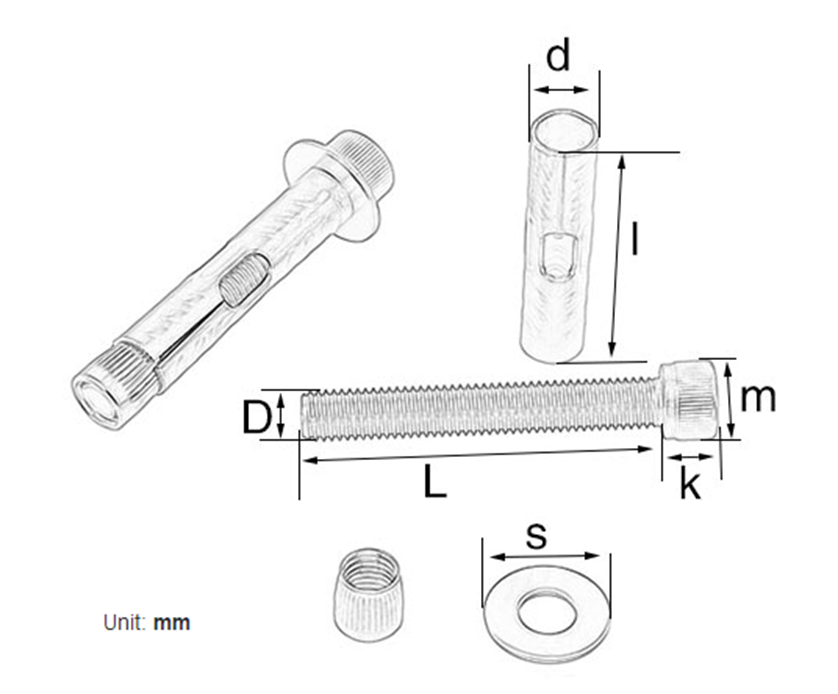

Size D L d l m k S drilling bit spanner
M6*40 6 40 8 30 10 5.7 18 8 5
M6*50 50 40
M6*60 60 50
M6*70 70 60
M6*80 80 70
M6*100 100 90
M8*60 8 60 10 45 13 7.64 20 10 6
M8*70 70 55
M8*80 80 65
M8*100 100 85
M8*120 120 105
M10*60 10 60 12 40 16 9.64 25 12 8
M10*70 70 50
M10*80 80 60
M10*90 90 70
M10*100 100 80
M10*120 120 100
M12*80 12 80 16 65 18 11 28 16 10
M12*90 90 75
M12*100 100 85
M12*120 120 95
M12*150 150 105
