Wedge anchors

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    wedge anchor bolt

  • Surface:

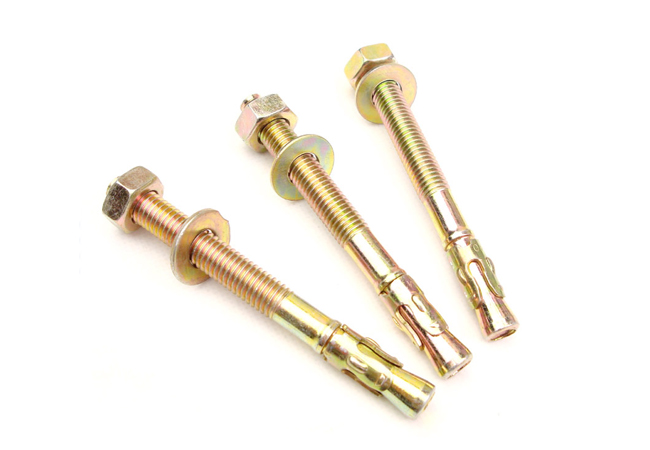

    Black oxide,Nickel, possivation,Tin, Zinc Clear, Zinc Yellow, Zinc black

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M6-M24

  • MOQ:

    According to size
inquiry now
product details

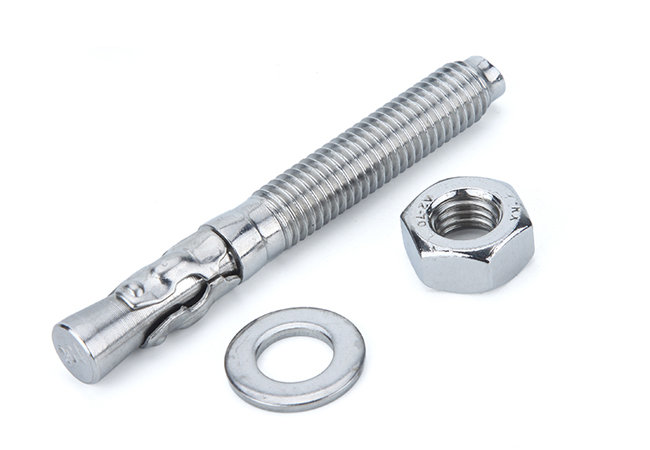

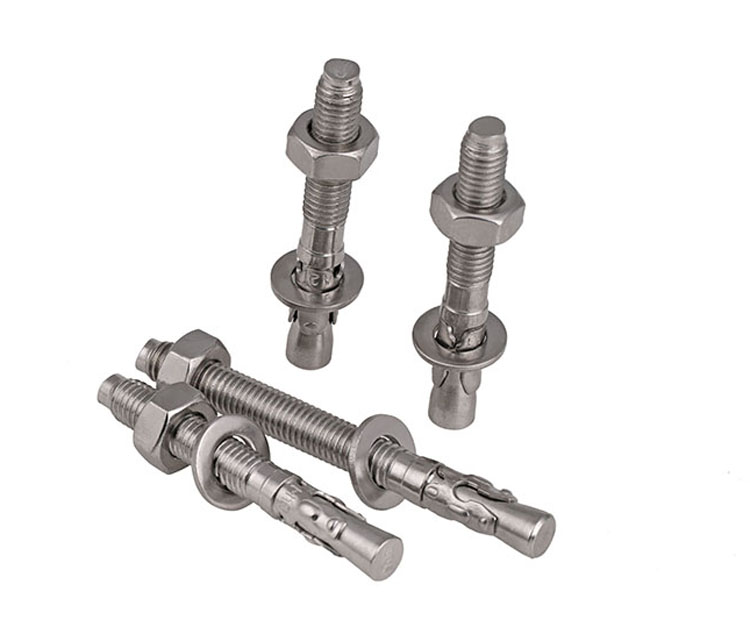

These are wedge anchors, the base expands as you tighten the nut for a secure hold in concrete. They're often used to anchor machinery.

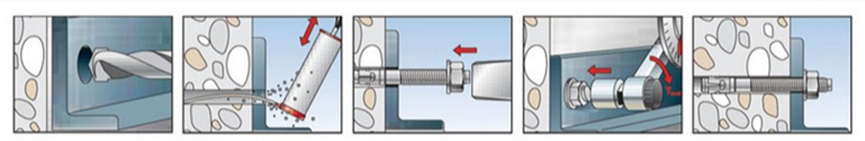

1. Drill
2. Clean the hole
3. Anchor objects aligned holes, insert the anchor bolt
4. Rotating the nut clockwise
5. Do not stop until you cannot tun screw any more

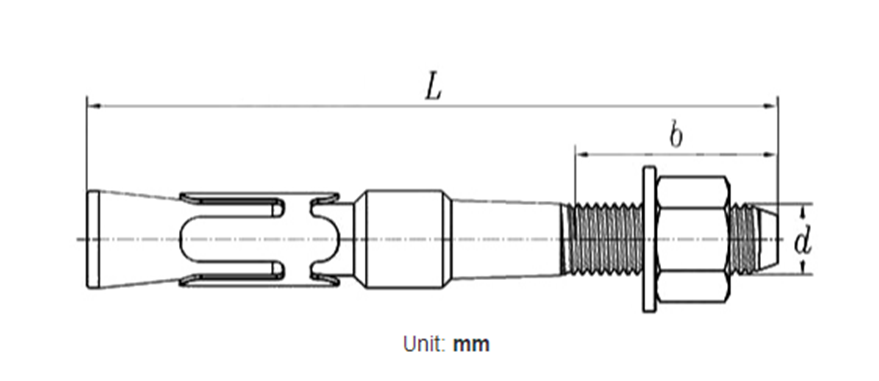

Screw Thread d M8 M8 M8 M10 M10 M10 M12 M12 M12 M12 M12
L 75 95 115 90 110 130 115 145 185 215 235
b 25 25 25 30 30 30 35 35 35 35 35
Hole size(Diameter) 8 8 8 10 10 10 12 12 12 12 12
Hole size(Depth) 65 65 65 80 80 80 95 95 95 95 95
per unit≈kg 0.031 0.038 0.044 0.061 0.068 0.08 0.106 0.138 0.156 0.191 0.21
