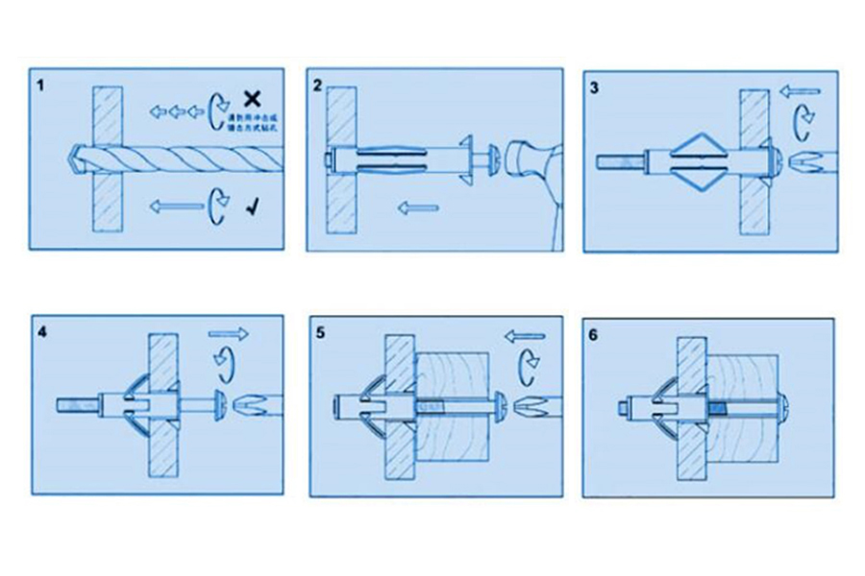

A drilled hole is required for installation. Screws can be removed repeatedly without affecting the anchor. To install, tap the anchor into the material until flush. Insert a screw and turn it to expand the anchor. For high volume tasks, use the optional installation tool—it doesn't require any twisting.

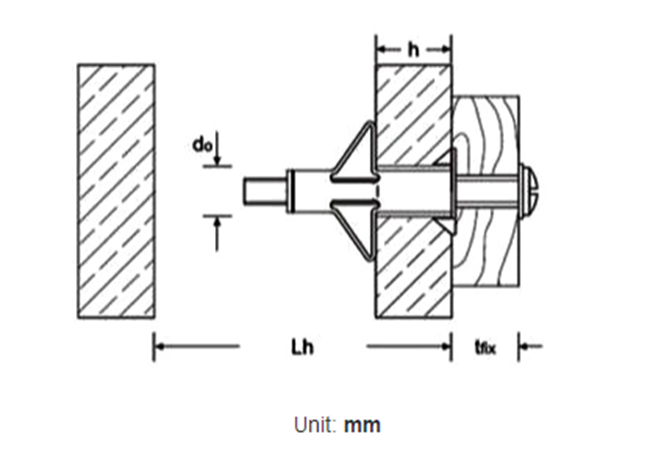

| Model | Drilling Diameter | Length of anchor sleeve | Specification for screws | Length of sleeve neck | Minimum borehole depth | Model | Nominal maximum thickness of mounting | |||
| Titular | Optimal | Utmost | ||||||||
| MxL-K | do | Length of anchor sleeve | MxL | K | Lh | h | hfit | hm | tfixmax | |
| M4X32-6 | 8 | 32 | M4x40 | 6 | 42 | 6 | 5-7 | 3-9 | 20 | |
| M4X38-12 | 8 | 38 | M4X45 | 12 | 47 | 12 | 11-13 | 8-15 | 20 | |
| M5X52-12 | 10 | 52 | M5X58 | 12 | 60 | 12 | 11-13 | 3-16 | 30 | |
| M6X52-12 | 12 | 52 | M6X58 | 12 | 60 | 12 | 11-13 | 3-16 | 30 | |
| M6X65-24 | 12 | 65 | M6X73 | 24 | 75 | 24 | 23-25 | 18-30 | 30 | |
