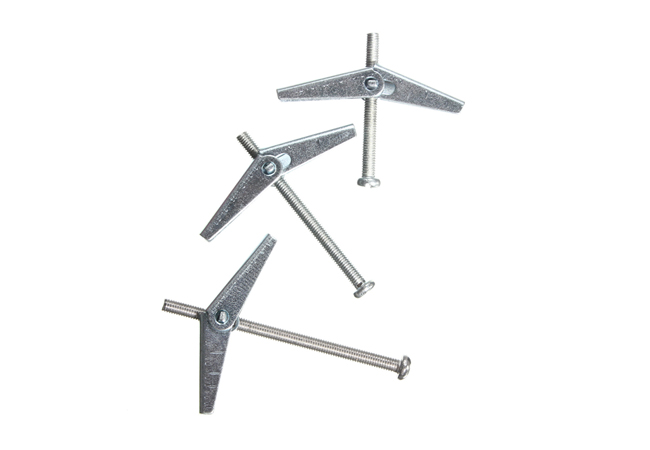

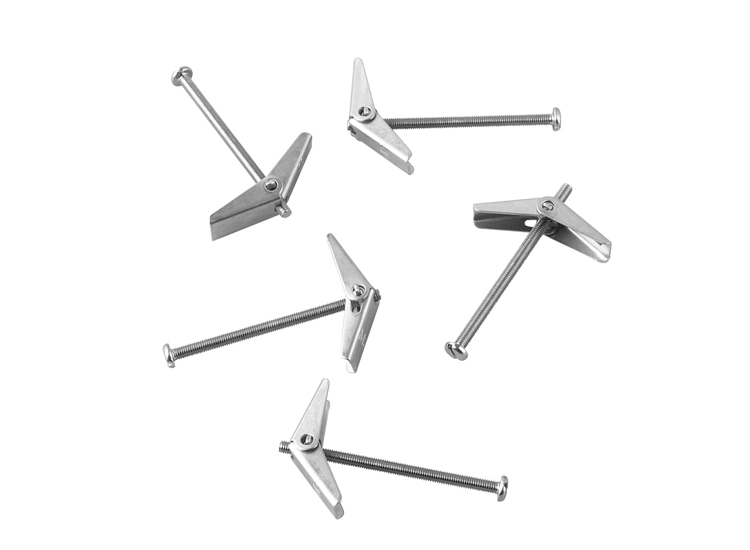

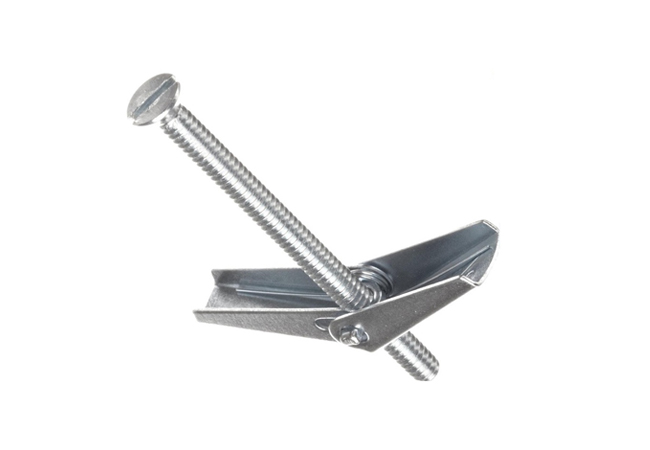

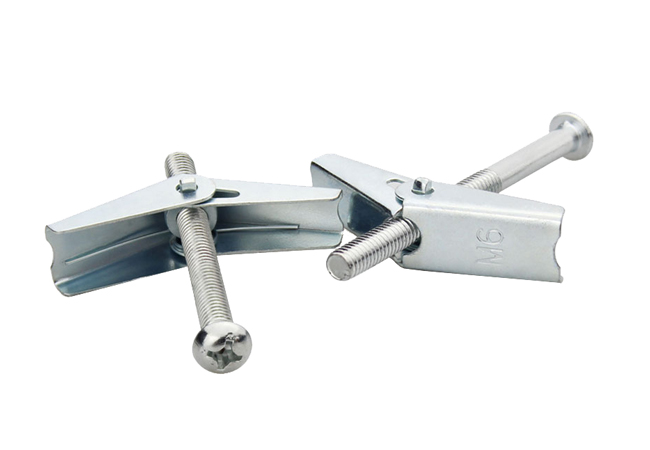

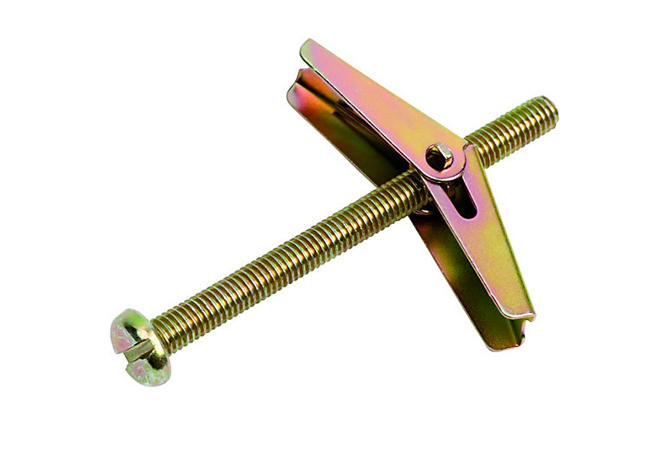

A spring-loaded toggle holds against the back of the material. To install, insert the bolt through your fixture and thread the toggle onto it. Next, fold the toggle wings flush against the bolt and push them through a drilled hole until they pop open on the other side.Pull back on the bolt and tighten. Bolts are zinc-plated steel to resist corrosion in wet environments. The bolt is reusable, but the toggle will fall behind the wall when the bolt is removed.

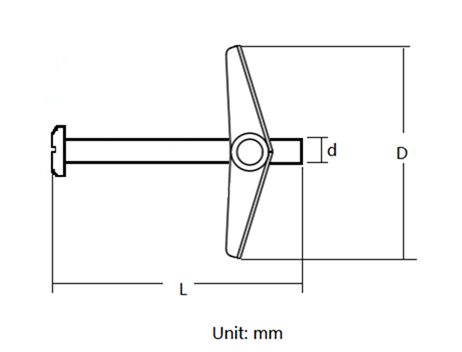

| Screw Thread d | M3 | M4 | M5 | M6 | M8 | M10 | |
| Perforating width | 10 | 12 | 16 | 18 | 22 | 25 | |

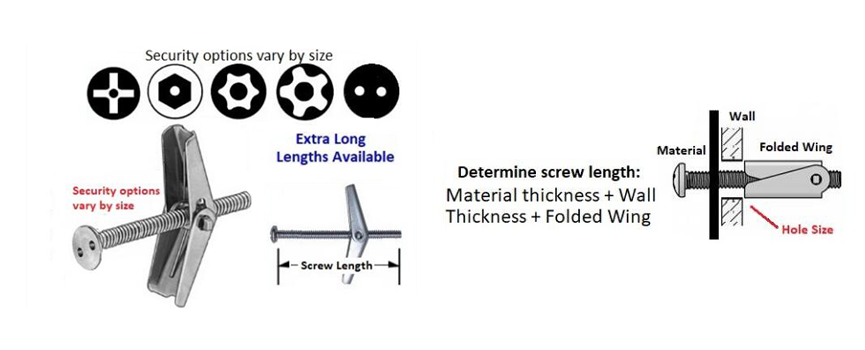

| L Min | wall thickness +22 | wall thickness +22 | wall thickness +28 | wall thickness +30 | wall thickness +40 | wall thickness +40 | |
| D | 40 | 40 | 50 | 55 | 75 | 75 | |
| loading capacity(kg) | 20 | 30 | 50 | 70 | 120 | 200 |
