Brand:
T,TGR,XDM,OEM as requirementBrief:
hook achor bolt, sleeve anchorSurface:
Black oxide,Nickel, possivation,Tin, Zinc Clear, Zinc Yellow, Zinc blackMaterial:
stainless steel304,316,316L,317,317L,carbon steel,etcSize:
80*40-12*130,Custom-madeMOQ:
According to size

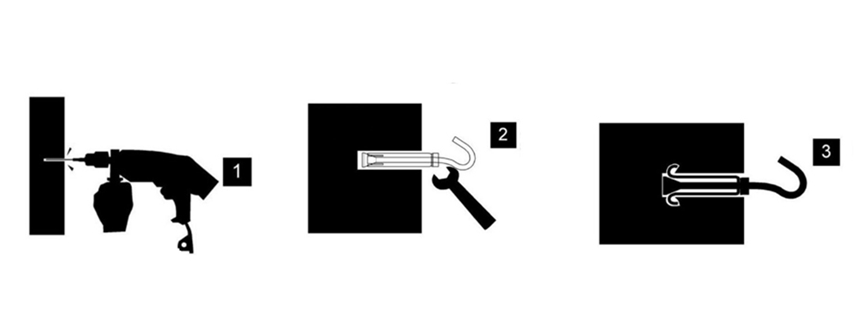

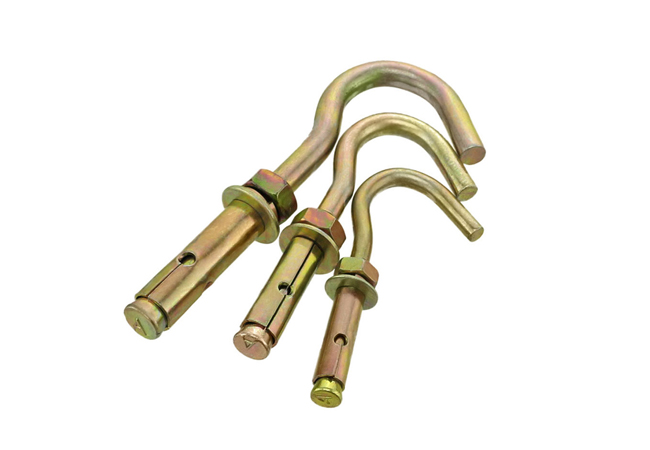

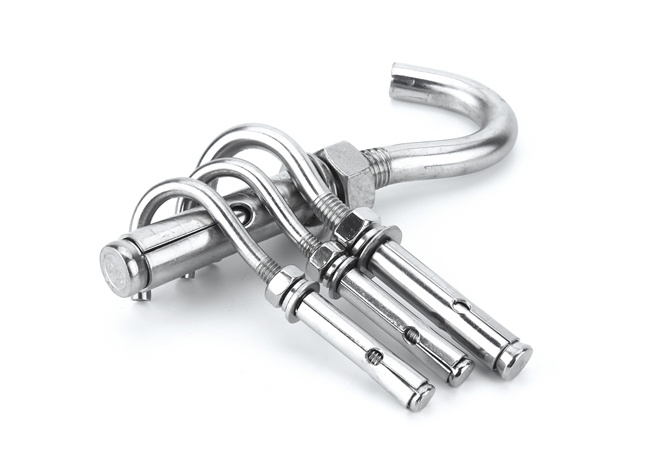

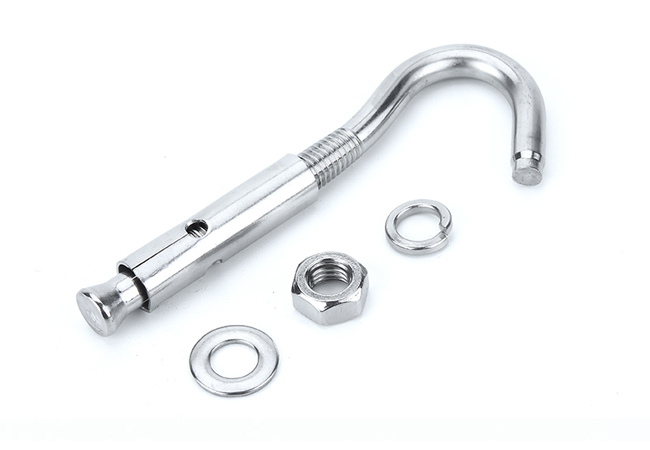

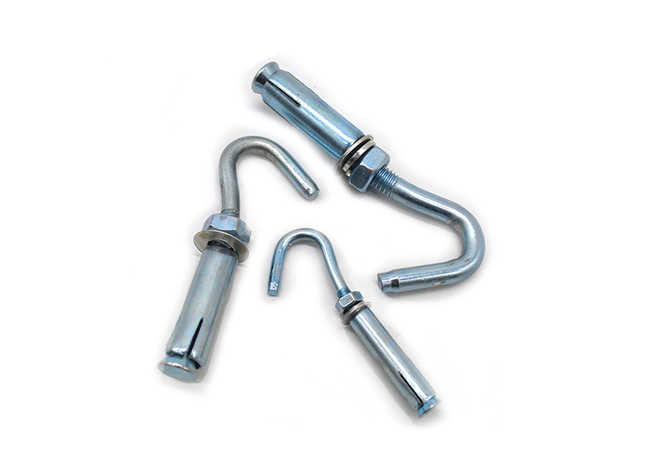

These are hook anchor bolt.There have a sleeve that expands as you tighten the bolt for a secure hold in block and brick. They're often used to mount shelving and anchor bollards and guard rails.

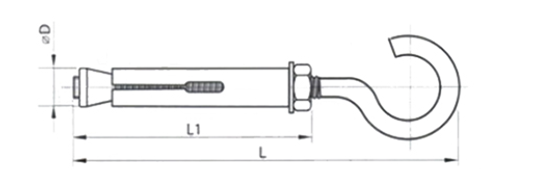

| Size | φ D | M | L1 | L |
| M6 | 8 | 6 | 35 | 87 |
| M8 | 10 | 6 | 37 | 99 |
| M10 | 12 | 8 | 38 | 110 |
| M12 | 14 | 8 | 48 | 130 |
