Hexalobular socket pan head screws

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Anti-theft Security Tapping screw, ISO7380

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    ST2.9-ST6.3

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

Tamper resistance, Six lobes with solid post in center of recess,ISO7380,available for ISO ROHS,SGS Vandal Resistant and Tamper Resistant, this is the Bryce Tam 6-Lobe™ type of TORX® Pin screw. The TORX Pin is an age-old, tamper-resistant screw similar to the Hex-Pin™ but supports a slightly higher torque value making it preferred over the Hex-Pin™ for many applications.

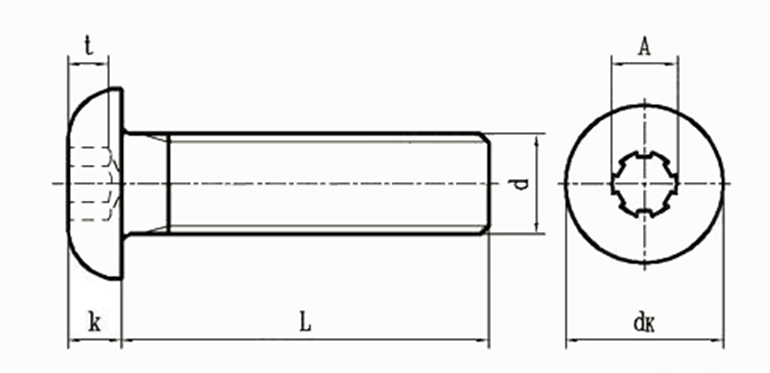

Screw Thread d 0# 1# 2# 3# 4# 5# 6# 8# 10# 1/4 5/16 3/8 1/2 5/8
d Nominal Diameter 0.06 0.073 0.086 0.099 0.112 0.125 0.138 0.164 0.19 0.25 0.313 0.375 0.5 0.625
PP UNC - 64 56 48 40 40 32 32 24 20 18 16 13 11
UNF 80 72 64 56 48 44 40 36 32 28 24 24 20 18
UNEF - - - - - - - - - 32 32 32 28 24
dk max 0.114 0.139 0.164 0.188 0.213 0.238 0.262 0.312 0.361 0.437 0.547 0.656 0.875 1
min 0.104 0.129 0.154 0.176 0.201 0.226 0.25 0.298 0.347 0.419 0.527 0.636 0.851 0.97
k max 0.032 0.039 0.046 0.052 0.059 0.066 0.073 0.087 0.101 0.132 0.166 0.199 0.265 0.331
min 0.026 0.033 0.038 0.044 0.051 0.058 0.063 0.077 0.091 0.122 0.152 0.185 0.245 0.311
A Nominal Size 0.048 0.06 0.06 0.072 0.072 0.096 0.096 0.111 0.145 0.183 0.216 0.251 0.372 0.454
t min 0.02 0.028 0.028 0.035 0.035 0.044 0.044 0.052 0.07 0.087 0.105 0.122 0.175 0.21
L max 0.5 0.5 0.5 0.5 0.5 0.5 0.63 0.75 1 1 1 1.25 2 2
