Male-Female Hex Standoffs

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    available for ISO ROHS,SGS

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    0-14

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

Male-Female Hex Standoffs are threaded fasteners that have female threads at each end so components can be screwed into both sides to connect and space materials. Their hexagonal shape allows for a firm grip with a wrench to hold the standoff in place during assembly. They are often used as a coupling nut to join male threaded parts.

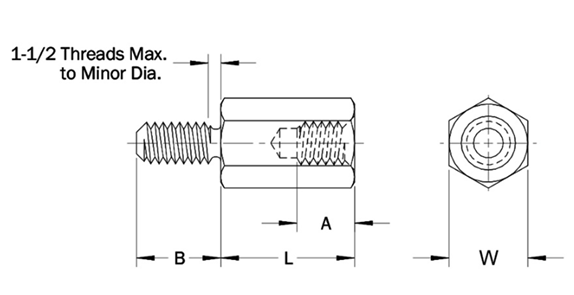

Thread Thread A B
qty per inch Min. (1) Thread Length Code
0-80 80 0.187 0.094
2-56 56 0.187 0.156
4-40 40 0.25 0.187
6-32 32 0.375 0.25
8-32 32 0.437 0.375
10-32 32 0.5 0.375
12/24 24 0.5 0.375
1/4-20 20 0.625 0.5
5/16-18 18 0.625 0.5
3/8-16 16 0.625 0.625
7/16-14 14 0.625 0.625
