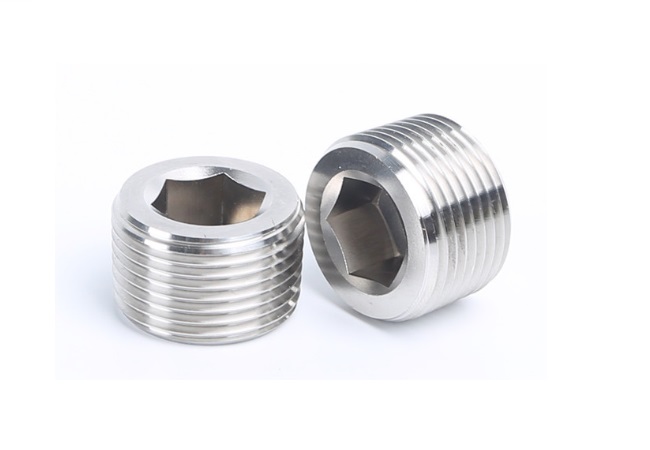

Socket Pipe Plugs

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Inner Hexagon male pipe plug socket

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Aluminum, copper, brass, stainless steel, steel, iron, alloy, zinc etc.

  • Size:

    M1.4-M14 also customized.

  • MOQ:

    Feel free t contact us for further inquiry.
inquiry now

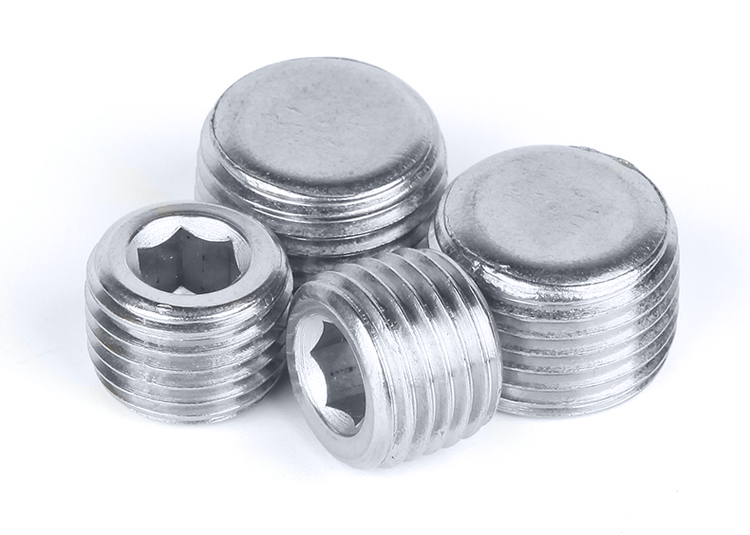

product details

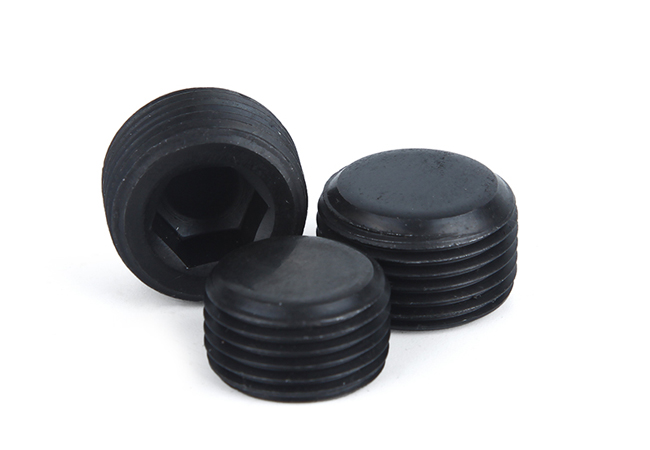

Socket tapered thread pipe plug, Pipe Plug, Pipe Fitting,Taper Plug with Hex Hole, available for ISO ROHS,SGS ,Building Industry Machinery
Other Relevant Standards:
DIN 908 Hexagon Socket Screw Plugs
DIN 909 Hexagon Head Pipe Plugs
DIN 910 Heavy-duty hexagon head screw plugs
DIN 5586 Compressed-air equipment for rail vehicles, screw plugs
DIN 7604 Light-duty hexagon head screw plugs

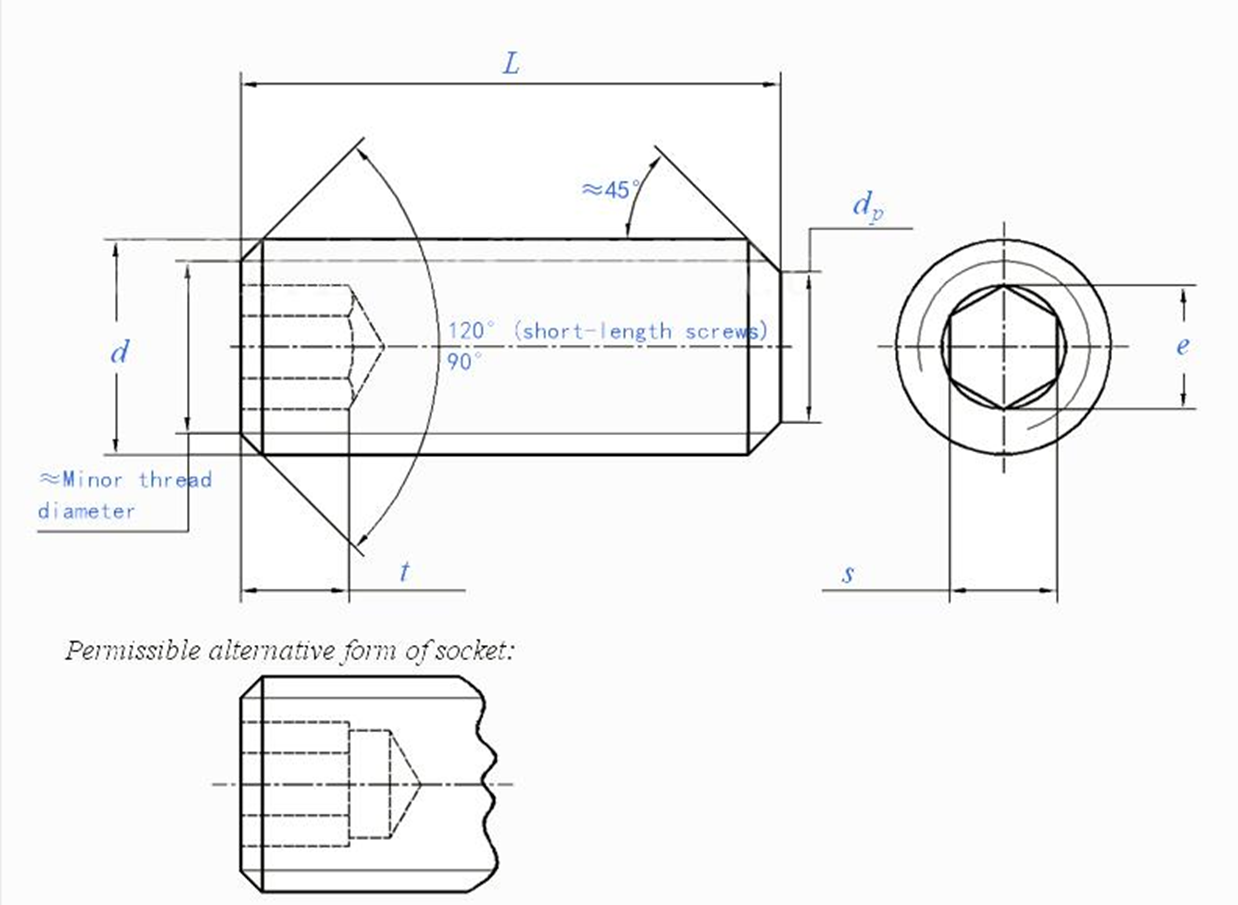

Screw Thread d M1.4 M1.6 (M1.8) M2 M2.5 M3 M4 M5 M6
P Pitch 0.3 0.35 0.35 0.4 0.45 0.5 0.7 0.8 1
dp max 0.7 0.8 0.9 1 1.5 2 2.5 3.5 4
min 0.45 0.55 0.65 0.75 1.25 1.75 2.25 3.2 3.7
e min 0.803 0.803 0.803 1.003 1.427 1.73 2.3 2.87 3.44
s Nominal Size 0.7 0.7 0.7 0.9 1.3 1.5 2 2.5 3
max 0.724 0.724 0.724 0.902 1.295 1.545 2.045 2.56 3.08
min 0.711 0.711 0.711 0.889 1.27 1.52 2.02 2.52 3.02
t min short 0.6 0.7 0.8 0.8 1.2 1.2 1.5 2 2
long 1.4 1.5 1.6 1.7 2 2 2.5 3 3.5
Screw Thread d M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
P Pitch 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
dp max 5.5 7 8.5 10 12 13 15 17 18
min 5.2 6.64 8.14 9.64 11.57 12.57 14.57 16.57 17.57
e min 4.58 5.72 6.86 6.86 9.15 11.43 11.43 13.72 13.72
s Nominal Size 4 5 6 6 8 10 10 12 12
max 4.095 5.095 6.095 6.095 8.115 10.115 10.115 12.142 12.142
min 4.02 5.02 6.02 6.02 8.025 10.025 10.025 12.032 12.032
t min short 3 4 4.8 5.6 6.4 7.2 8 9 10
long 5 6 8 9 10 11 12 13.5 15
