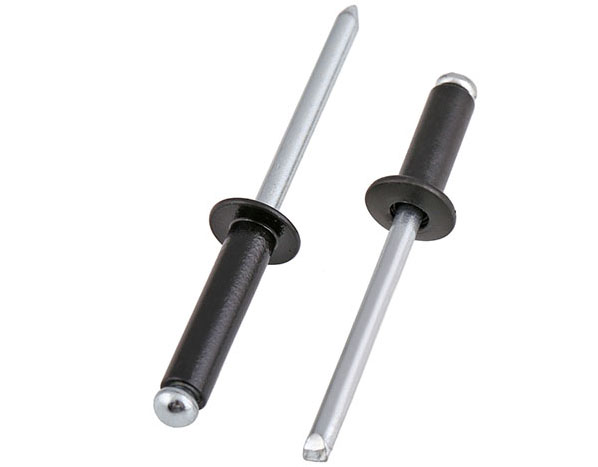

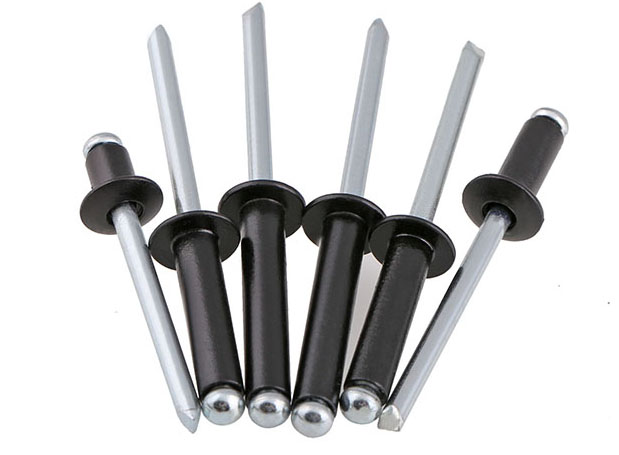

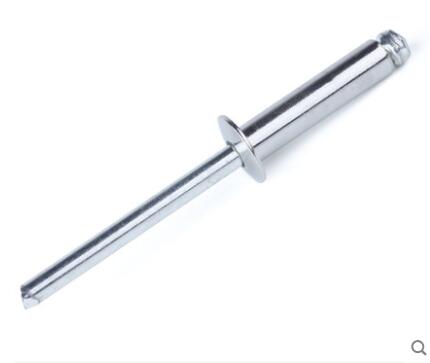

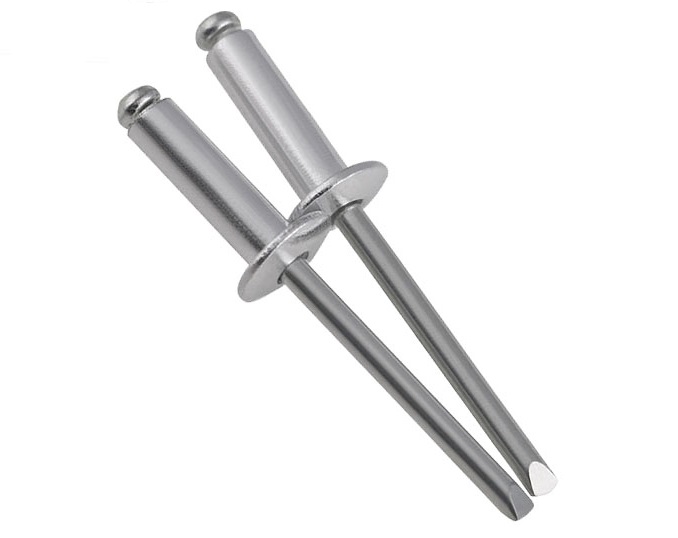

Open end round head blind rivet

  • Brand:

    T,TGR,XDM,OEM as requirement
  • Brief:

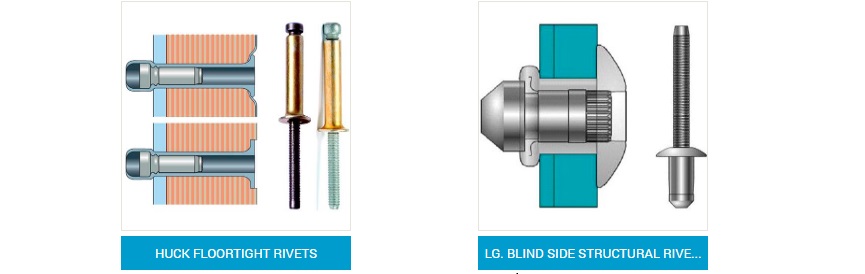

    Huck Floortight Rivets, Floor Rivets
  • Surface:

    Black Oxide, Brass, Nickel, Passivation, Tin, Zinc Clear, Zinc Yellow, Zinc Black
  • Material:

    Aluminum/Aluminum,Aluminum/Steel,Steel/Steel,
    Stainless/Stainless,Stainless/Steel,Copper/Steel,
    Copper/Steel
  • Size:

    Φ2.4-Φ6.4,3/32-1/4,Custom-made
  • MOQ:

    According to size
inquiry now
product details

Standard,Large Flange,Countersunk Head,Closed End.

Screw Thread d Φ2.4 Φ3 Φ3.2 Φ4 Φ4.8 Φ5 Φ6 Φ6.4
d max 2.48 3.08 3.28 4.08 4.88 5.08 6.08 6.48
min 2.25 2.85 3.05 3.85 4.65 4.85 5.85 6.25
dk max 5 6.3 6.7 8.4 10.1 10.5 12.6 13.4
min 4.2 5.4 5.8 6.9 8.3 8.7 10.8 11.6
k max 1 1.3 1.3 1.7 2 2.1 2.5 2.7
d1 max 1.55 2 2 2.45 2.95 2.95 3.4 3.9
L1 min 25 25 25 27 27 27 27 27
