Hex Keys

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

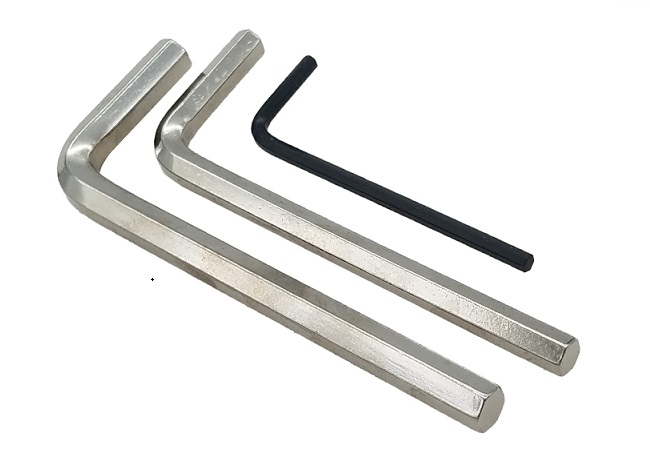

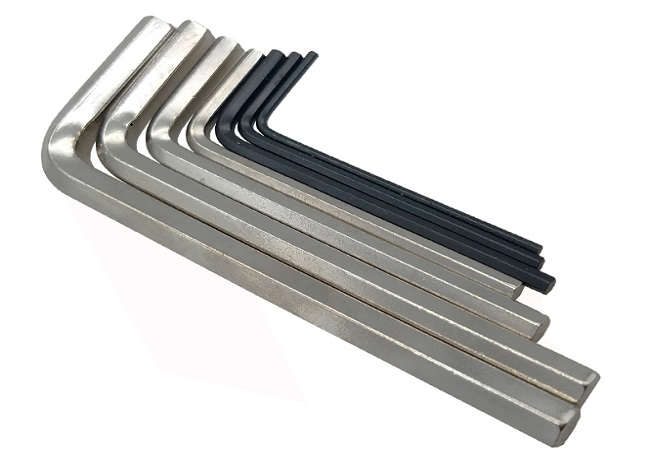

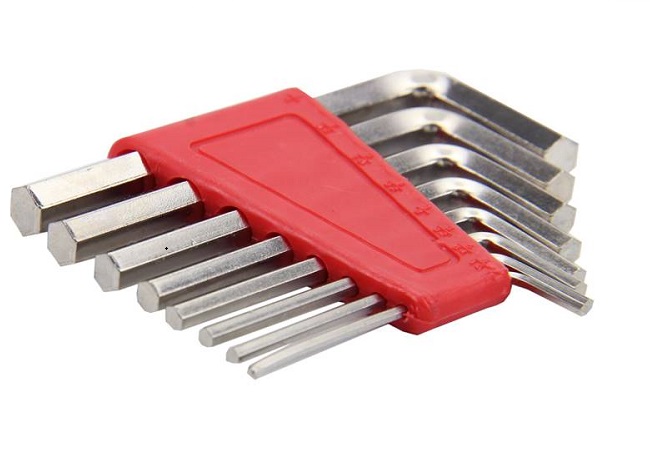

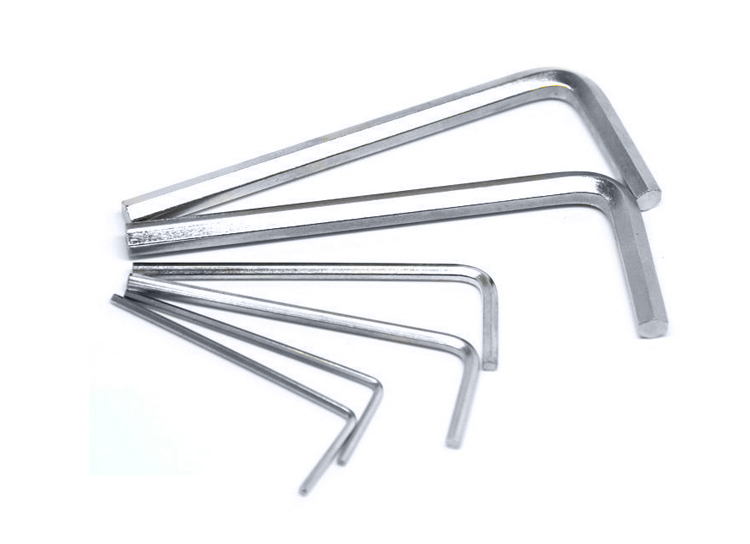

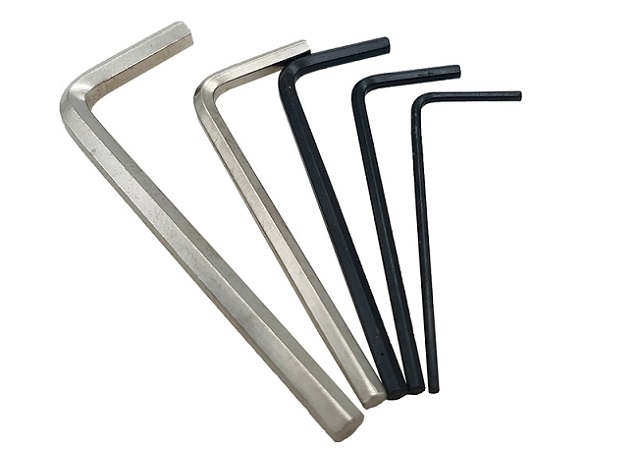

    Hand Tool Sets Allen Key,L-Shaped Hex Allen Key, Allen Wrenches

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    M0.7-M36

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

Long Arm,Short Arm & Tamper Proof Hex Keys. All Keys supplied in Stainless Steel 304/316/316L etc.

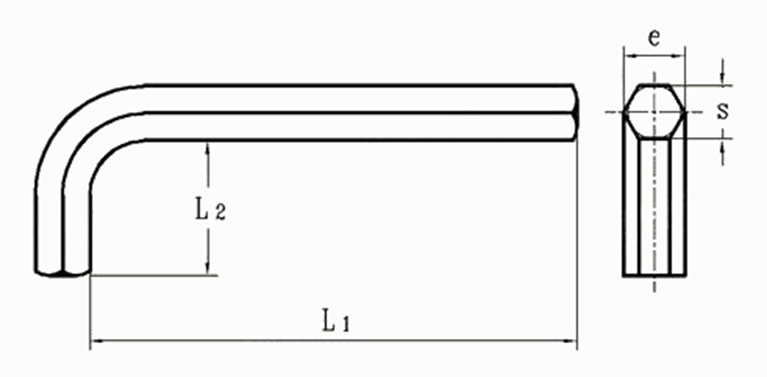

Screw Thread d 0.7 0.9 1.3 1.5 2 2.5 3 4 5 6 7
s max 0.711 0.911 1.33 1.5 2 2.5 3 4 5 6 7
min 0.698 0.676 1.244 1.475 1.96 2.46 2.96 3.952 4.952 5.952 6.942
e max 0.79 0.99 1.42 1.68 2.25 2.82 3.39 4.53 5.67 6.81 7.95
min 0.76 0.96 1.37 1.63 2.18 2.75 3.31 4.44 5.58 6.71 7.84
L1 max 32 32 40 45 50 56 63 70 80 90 95
min 30 30 38 43 48 53 60 66 76 86 90
L2 max 6 10 12 14 16 18 20 25 28 32 34
min 5 9 11 13 15 17 18 23 26 30 32
Screw Thread d 8 10 12 14 17 19 22 24 27 32 36
s max 8 10 12 14 17 19 22 24 27 32 36
min 7.942 9.942 11.89 13.89 16.89 18.87 21.87 23.87 26.87 31.84 35.84
e max 9.09 11.37 13.65 15.93 19.35 21.63 25.05 27.33 30.75 36.45 41.01
min 8.97 11.23 13.44 15.7 19.09 21.32 24.71 26.97 30.36 35.98 40.5
L1 max 100 112 125 140 160 180 200 224 250 315 355
min 95 106 119 133 152 171 190 213 238 300 338
L2 max 36 40 45 56 63 70 80 90 100 125 140
min 34 38 42 53 60 67 76 86 95 119 133
