Retaining ring for shaft

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    "E" Rings,Lock Washers,GB896,DIN6799

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    M0.8-M6,Custom-made

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

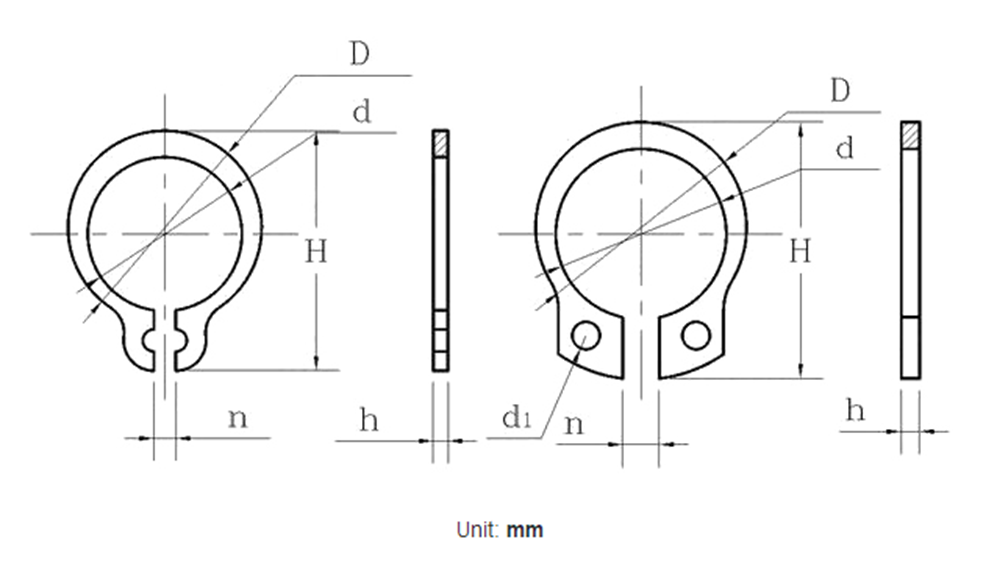

Nominal Diameter d 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
d max 2.74 3.74 4.74 5.64 6.56 7.46 8.46 9.4 10.3 11.1 12 13 13.9 14.8 15.8 16.6
min 2.55 3.55 4.55 5.45 6.32 7.22 8.22 8.94 9.84 10.64 11.54 12.54 13.44 14.34 15.34 16.14
h max 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2
min 0.35 0.35 0.55 0.65 0.75 0.75 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 1.14
d1 min 1 1 1 1.2 1.2 1.2 1.2 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.7 2
Nominal Diameter d 19 20 21 22 24 25 26 28 29 30 32 34 35 36 38 40
d max 17.6 18.63 19.63 20.63 22.41 23.41 24.41 26.11 27.11 28.11 29.81 31.75 32.45 33.45 35.45 36.89
min 17.14 18.08 19.08 20.08 21.78 22.78 23.78 25.48 26.48 27.48 29.18 31 31.7 32.7 34.7 35.6
h max 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75
min 1.14 1.14 1.14 1.14 1.14 1.14 1.14 1.44 1.44 1.44 1.44 1.44 1.44 1.69 1.69 1.69
d1 min 2 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5
Nominal Diameter d 42 45 48 50 52 55 56 58 60 62 63 65 68 70
d max 38.89 41.89 44.89 46.19 48.19 51.26 52.26 54.26 56.26 58.26 59.26 61.26 63.96 65.96
min 37.6 40.6 43.6 44.9 46.9 49.7 50.7 52.7 54.7 56.7 57.7 59.7 62.4 64.4
h max 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5
min 1.69 1.69 1.69 1.93 1.93 1.93 1.93 1.93 1.93 1.93 1.93 2.43 2.43 2.43
d1 min 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3
