Split washers

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    "E" Rings,Lock Washers,GB896,DIN6799

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    M0.8-M6,Custom-made

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

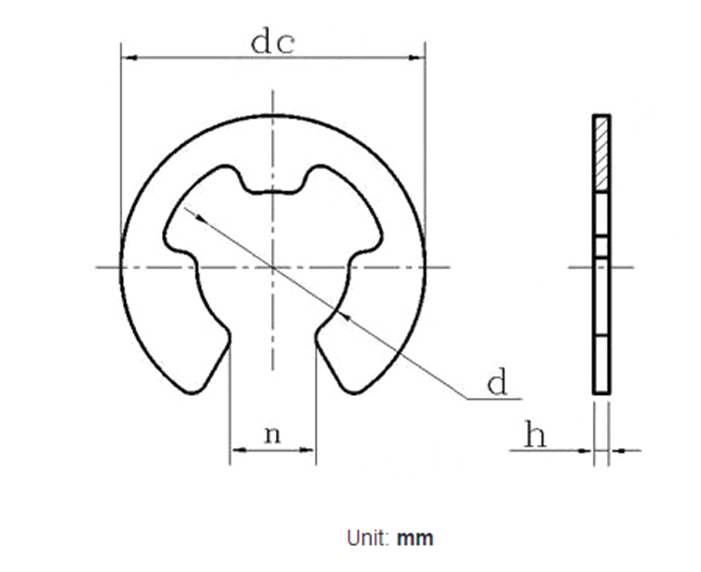

Nominal Diameter d 0.8 1.2 1.5 1.9 2.3 3.2 4 5 6
n max 0.62 1.05 1.32 1.65 1.98 2.74 3.388 4.158 5.308
min 0.58 1.01 1.28 1.61 1.94 2.7 3.34 4.11 5.26
h Nominal Size 0.2 0.3 0.4 0.5 0.6 0.6 0.7 0.7 0.7
max 0.22 0.32 0.42 0.52 0.62 0.62 0.72 0.72 0.72
min 0.18 0.28 0.38 0.48 0.58 0.58 0.68 0.68 0.68
dc 2 3 4 4.5 6 7 9 11 12
per 1000 units≈kg - 0.009 0.021 0.04 0.069 0.088 0.158 0.236 0.255
Nominal Diameter d 7 8 9 10 12 15 19 24
n max 5.888 6.578 7.688 8.378 10.52 12.68 15.99 21.964
min 5.84 6.52 7.63 8.32 10.45 12.61 15.92 21.88
h Nominal Size 0.9 1 1.1 1.2 1.3 1.5 1.75 2
max 0.92 1.03 1.13 1.23 1.33 1.53 1.78 2.03
min 0.88 0.97 1.07 1.17 1.27 1.47 1.72 1.97
dc 14 16 18.5 20 23 29 37 44
per 1000 units≈kg 0.474 0.66 1 1.12 1.77 3.37 6.42 8.55
