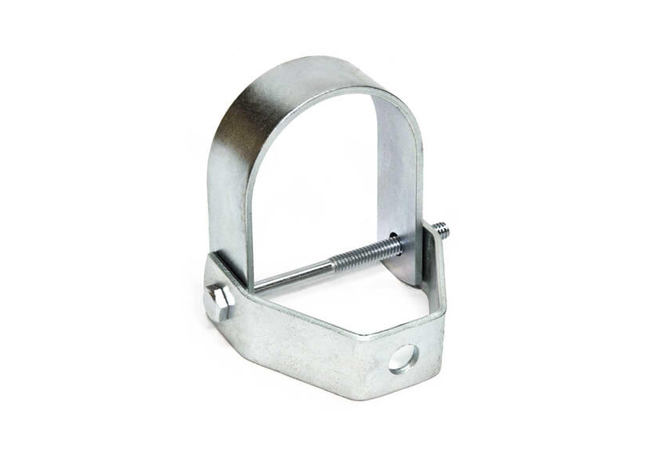

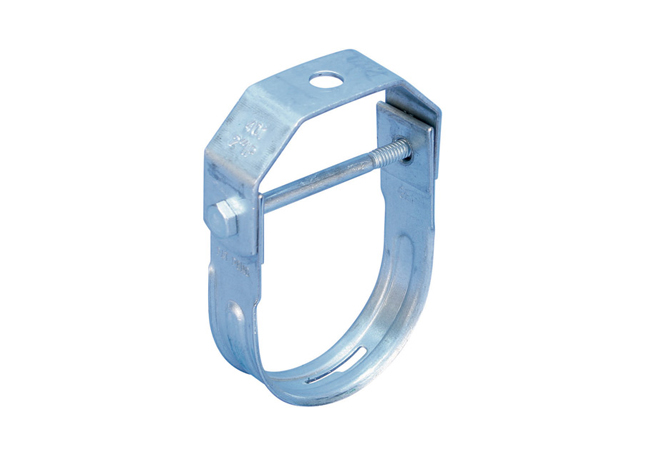

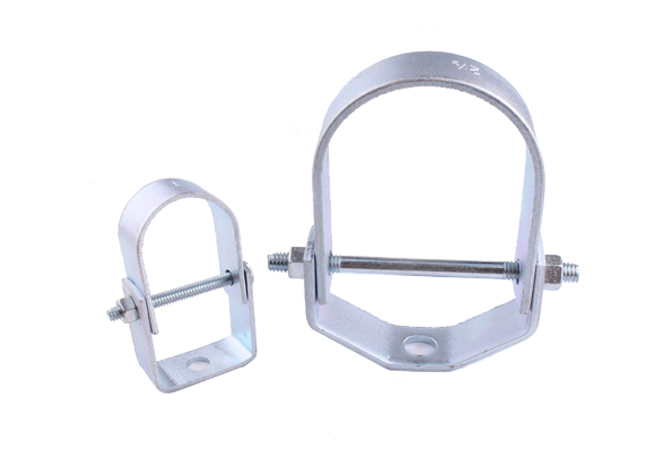

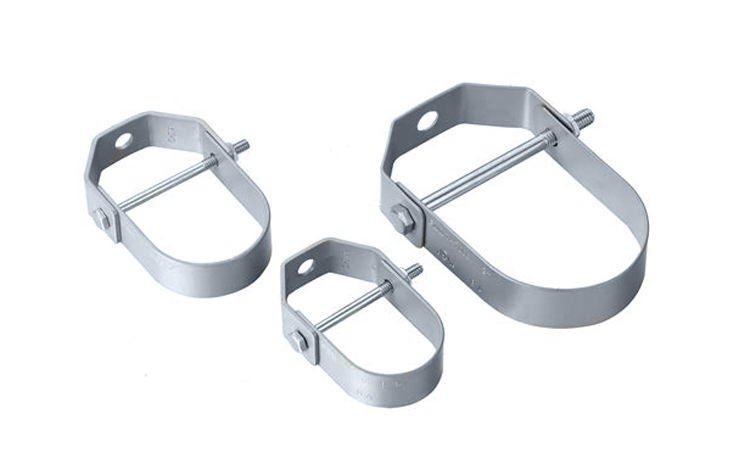

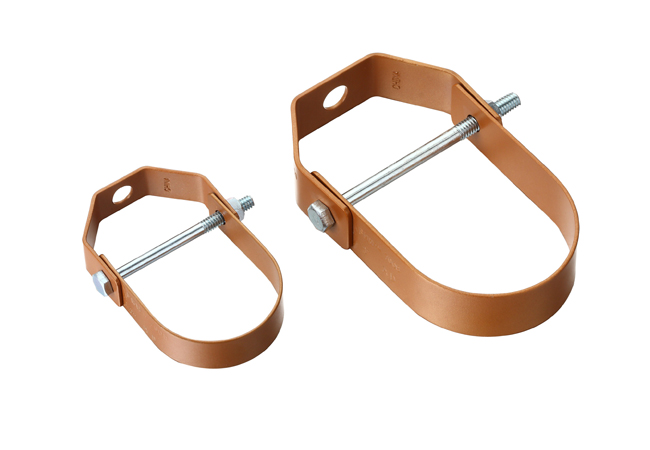

A clevis hanger is a pipe attachment providing vertical adjustment, consisting of a clevis type top bolted to a formed steel bottom strap. They are recommended for the suspension of non-insulated, stationary pipe lines. Fig. 89: Clevis Hanger for Insulated Lines Fig. 195: Roller Hanger
Recommended for the suspension of non-insulated, stationary pipe lines.MAX. TEMP: 650°F.
FEATURES: Designed with the yoke on outside of lower U-Strap so the yoke cannot slide toward the center of the bolt, thus bending of the bolt is minimized. Spacer sleeve used for size 16” thru 36”.
COMPONENTS: Top yoke, bottom strap, and bolt or stud with nut-assembled.
INSTALLATION: Hanger load nut ABOVE clevis must be tightened securely to assure proper hanger performance.
ORDERING: Specify figure number, pipe size, description and finish.
NOTE: Punched forming holes may be present on certain sizes of this clevis hanger. These holes are solely for the purpose of manufacturing and do not affect the structural integrity or load carrying capacities of these hangers.

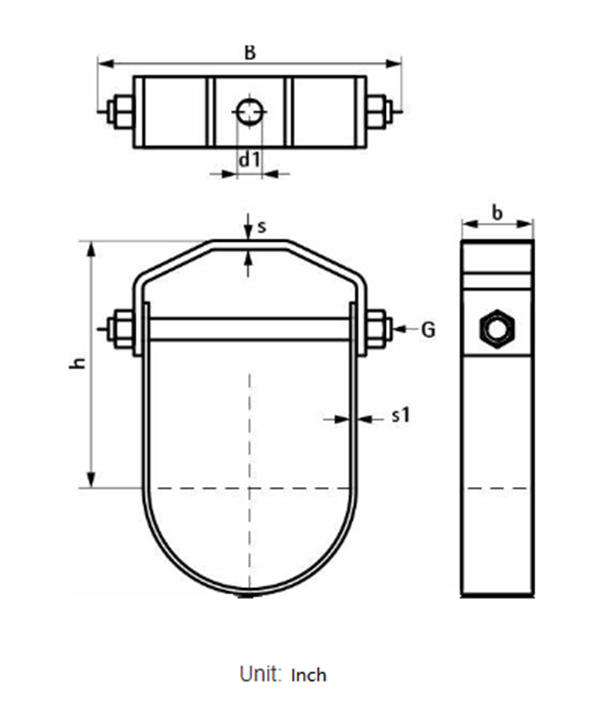

| Pipe Size | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | 5 | 6 | 8 | |
| Rode Size d1 | 3/8-16 | 3/8-16 | 3/8-16 | 3/8-16 | 3/8-16 | 3/8-16 | 1/2-13 | 1/2-13 | 1/2-13 | 5/8-11 | 5/8-11 | 3/4-10 | 3/4-10 | |
| h | 42.9 | 47.6 | 54 | 65.1 | 76.2 | 82.5 | 101.6 | 123.8 | 127 | 139.7 | 155.6 | 176.2 | 212.7 |
