Taper pins with internal thread

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    ISO8736,DIN7978,available for ISO ROHS,SGS

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    φ6-φ50

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

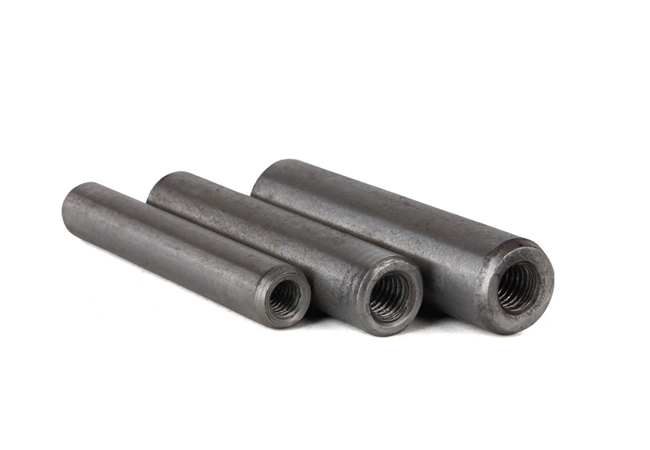

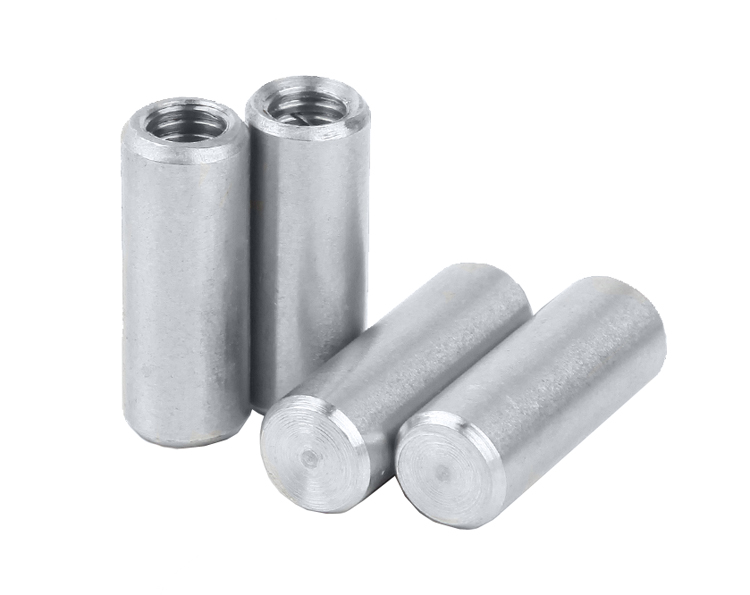

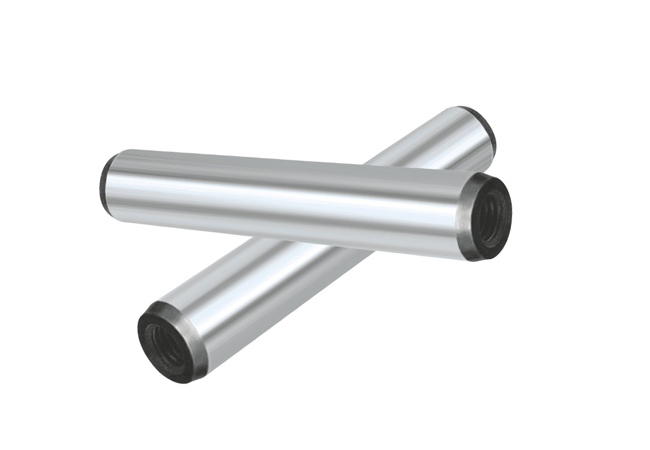

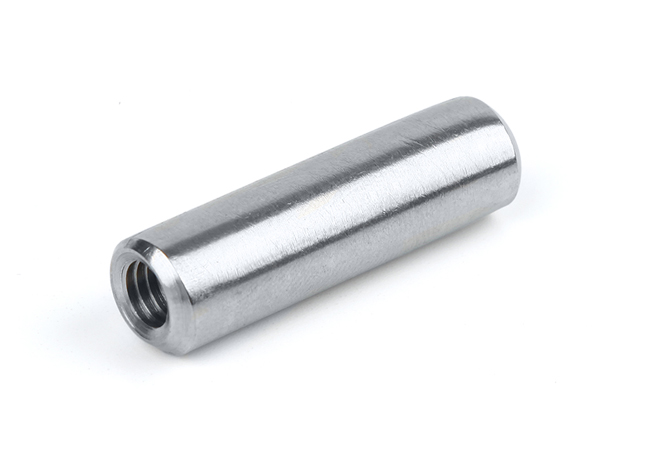

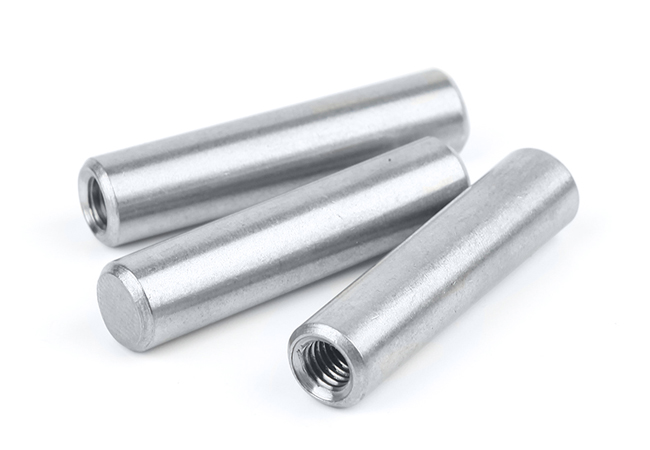

Internal / External Threaded Taper Pins are used for extraction of the pins more conveniently especially from blind holes. They are also used in very accurate constructed tools and gauges which have to be kept in absolute alignment. External & Internal Threaded Taper Pins are made and supplied in unhardened condition DIN 7977 & 7978 Ext. Thread Taper Pins can also be manufactured to DIN ? 258, ISO : 8736 or ISO : 8737 and to Customers Specifications.

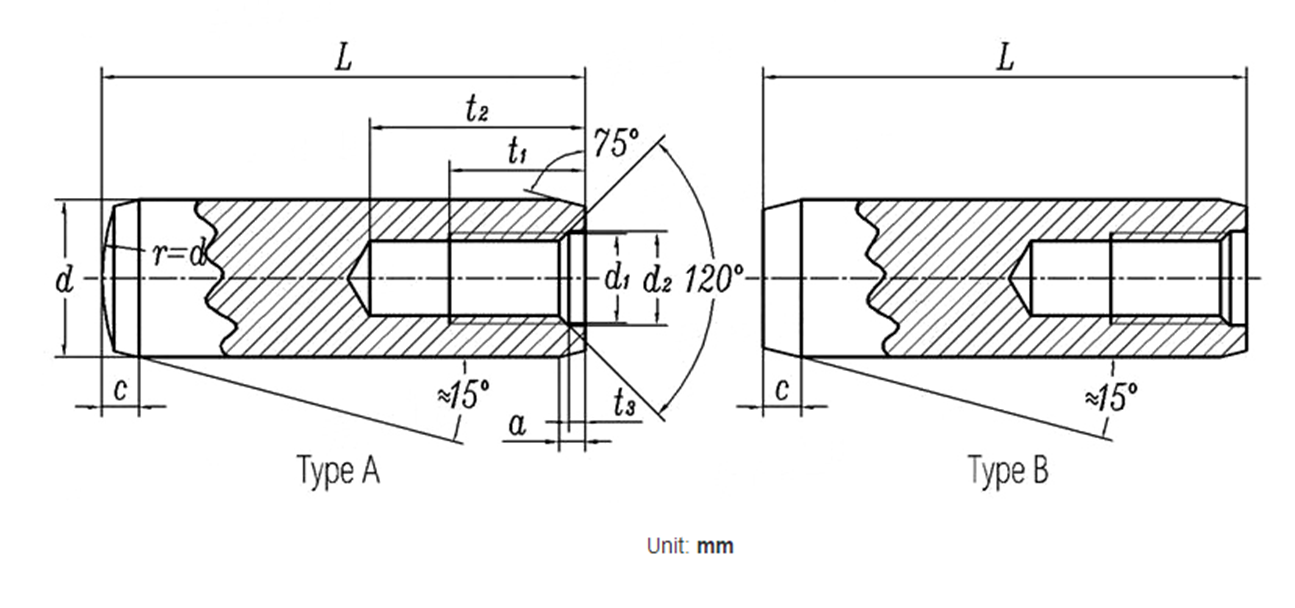

Nominal Diameter d Φ6 Φ8 Φ10 Φ12 Φ16 Φ20 Φ25 Φ30 Φ40 Φ50
d (m6) max 6.012 8.015 10.015 12.018 16.018 20.021 25.021 30.021 40.025 50.025
min 6.004 8.006 10.006 12.007 16.007 20.008 25.008 30.008 40.009 50.009
a ≈ 0.8 1 1.2 1.6 2 2.5 3 4 5 6.3
c 2.1 2.6 3 3.8 4.6 6 6 7 8 10
d1 M4 M5 M6 M6 M8 M10 M16 M20 M20 M24
P Pitch 0.7 0.8 1 1 1.25 1.5 2 2.5 2.5 3
d2 4.3 5.3 6.4 6.4 8.4 10.5 17 21 21 25
t1 6 8 10 12 16 18 24 30 30 36
t2 min 10 12 16 20 25 28 35 40 40 50
t3 1 1.2 1.2 1.2 1.5 1.5 2 2 2.5 2.5
