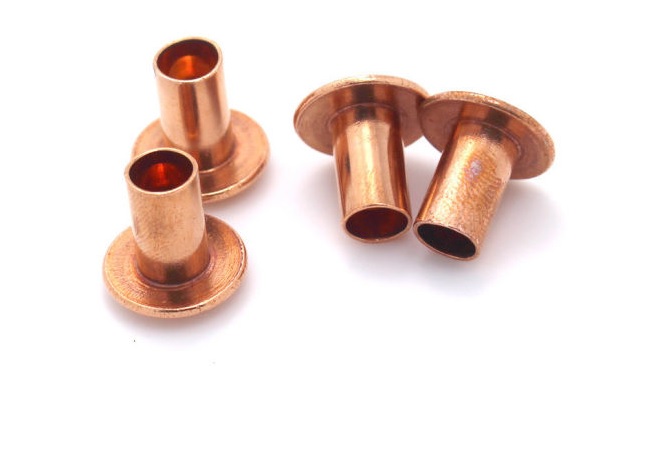

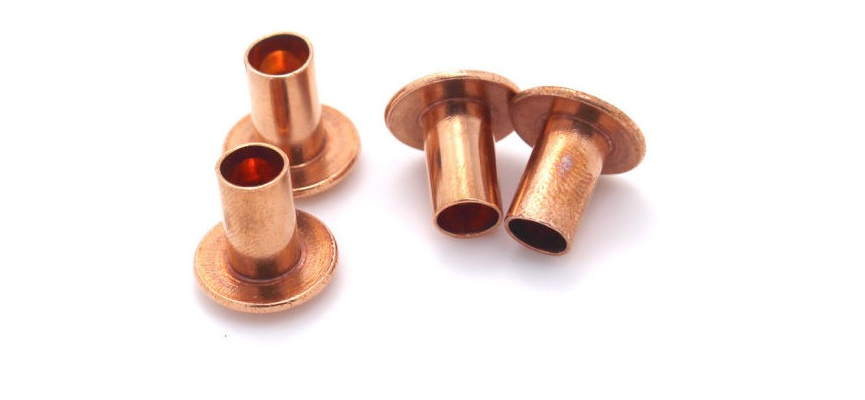

Red Copper knurling rivets are electrically conductive, nonmagnetic, and have good corrosion resistance.

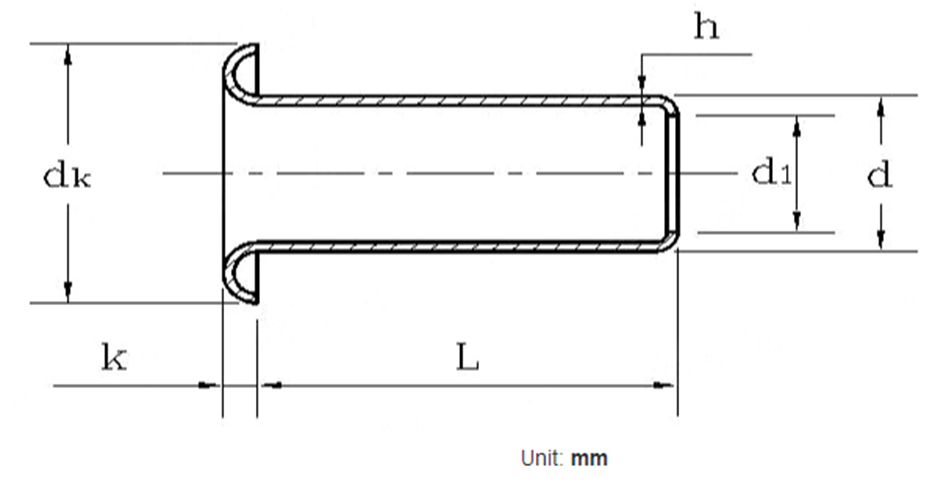

| Nominal Diameter d | Φ1.4 | (Φ1.6) | Φ2 | Φ2.5 | Φ3 | (Φ3.5) | Φ4 | Φ5 | Φ6 | |||
| d | max | 1.53 | 1.73 | 2.13 | 2.63 | 3.13 | 3.65 | 4.15 | 5.15 | 6.15 | ||
| min | 1.27 | 1.47 | 1.87 | 2.37 | 2.87 | 3.35 | 3.85 | 4.85 | 5.85 | |||
| dk | max | 2.6 | 2.8 | 3.5 | 4 | 5 | 5.5 | 6 | 8 | 10 | ||
| min | 2.35 | 2.55 | 3.2 | 3.7 | 4.7 | 5.2 | 5.7 | 7.64 | 9.64 | |||
| k | max | 0.5 | 0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.82 | 1.12 | 1.12 | ||
| min | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.58 | 0.88 | 0.88 | |||
| d1 | min | 0.8 | 0.9 | 1.2 | 1.7 | 2 | 2.5 | 2.9 | 4 | 5 | ||
| h | 0.2 | 0.22 | 0.25 | 0.25 | 0.3 | 0.3 | 0.35 | 0.35 | 0.35 | |||
