Brand:
T,TGR,XDM,OEM as requirementBrief:
Brass Solid RivetsSurface:
Wash light processingMaterial:
H56, H59, Copper, Brass, BronzeSize:
1.6-5,Custom-madeMOQ:
According to size

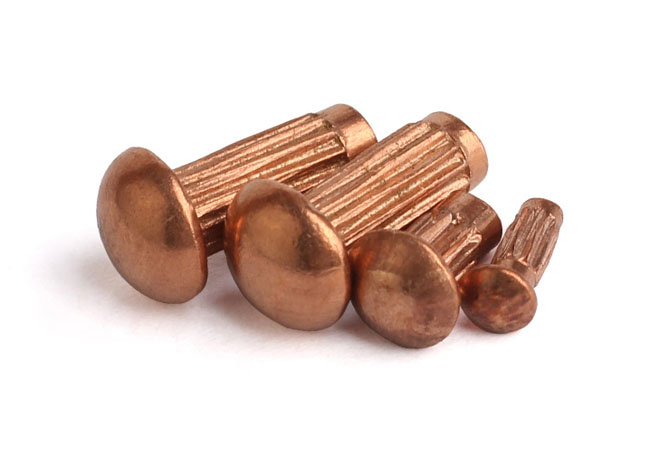

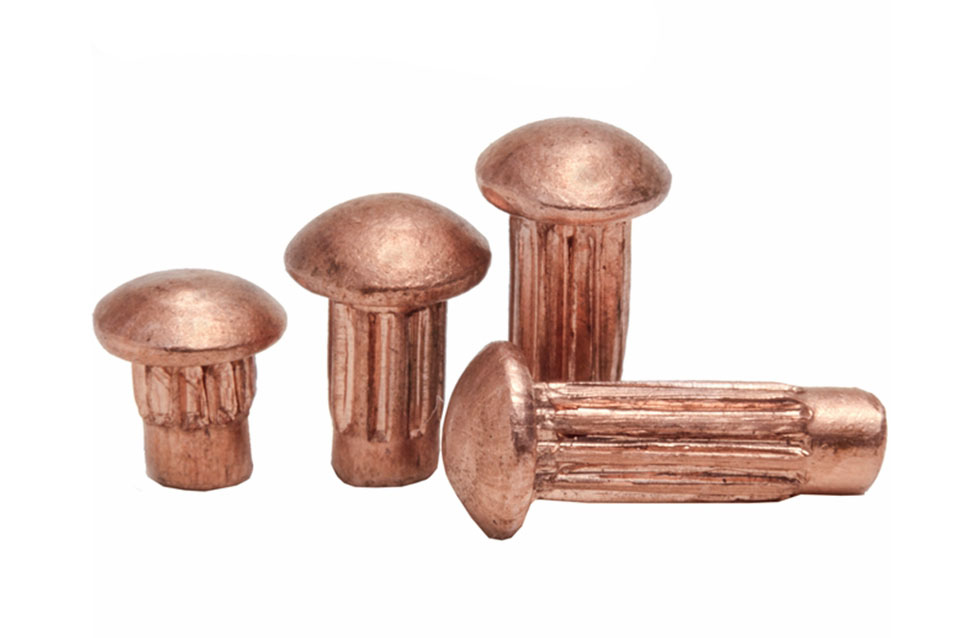

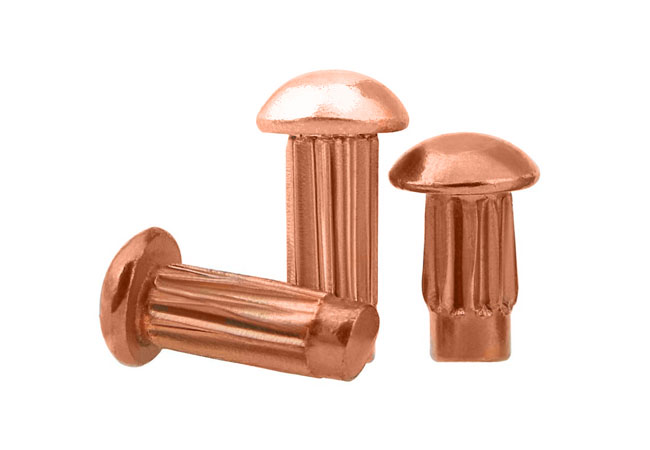

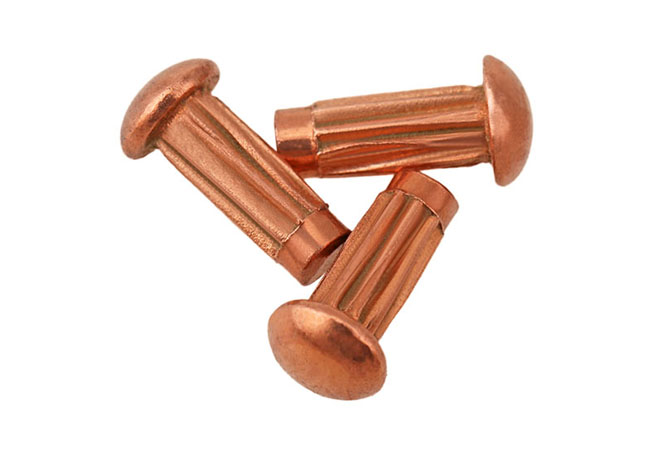

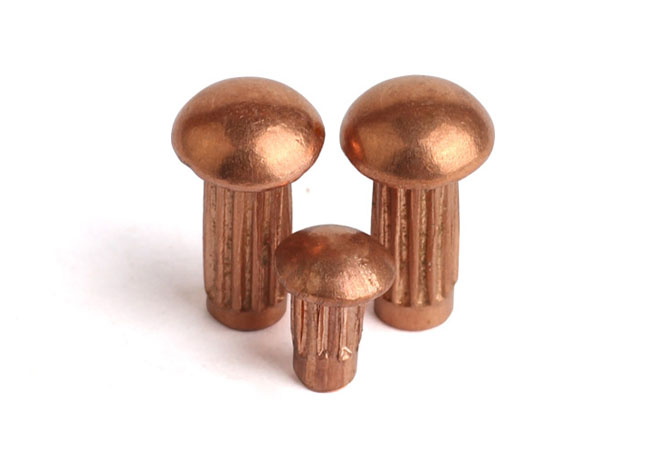

Red Copper knurling rivets are electrically conductive, nonmagnetic, and have good corrosion resistance.

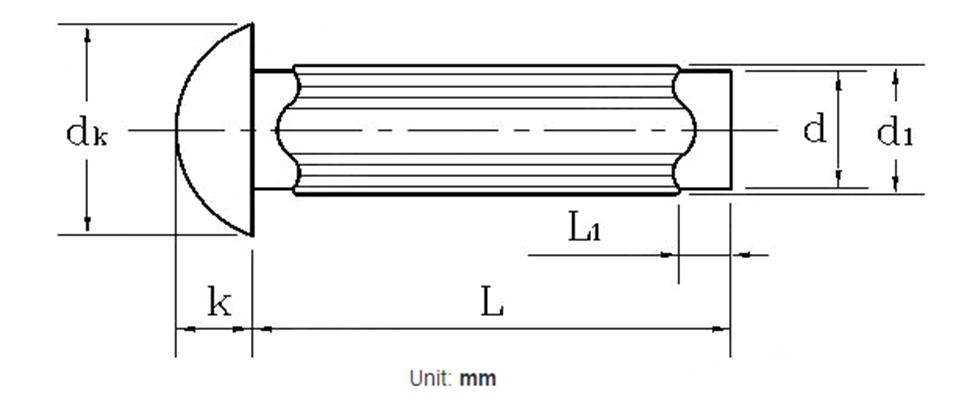

| Screw Thread d | (Φ1.6) | Φ2 | Φ2.5 | Φ3 | Φ4 | Φ5 | ||||||
| dk | max | 3.2 | 3.74 | 4.84 | 5.54 | 7.39 | 9.09 | |||||
| min | 2.8 | 3.26 | 4.36 | 5.06 | 6.81 | 8.51 | ||||||
| k | max | 1.2 | 1.4 | 1.8 | 2 | 2.6 | 3.2 | |||||
| min | 0.8 | 1 | 1.4 | 1.6 | 2.2 | 2.8 | ||||||
| d1 | min | 1.75 | 2.15 | 2.65 | 3.15 | 4.15 | 5.15 | |||||
| L1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | ||||||
