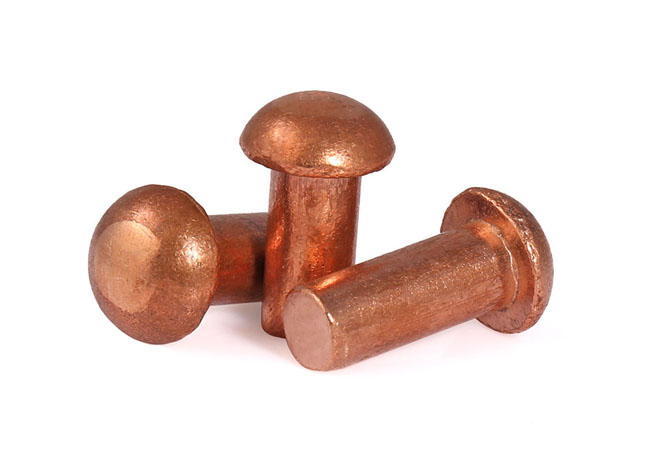

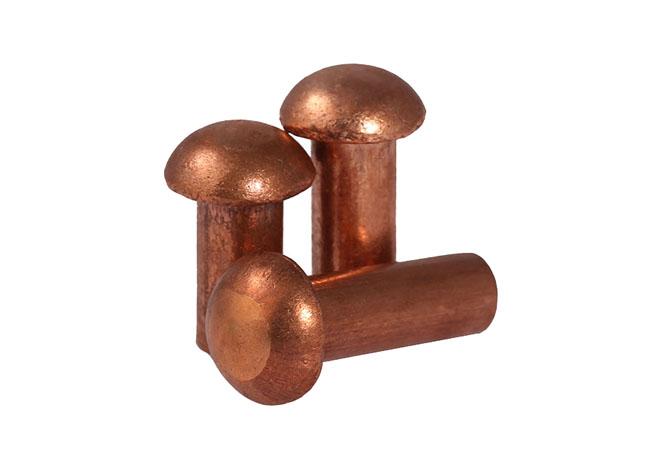

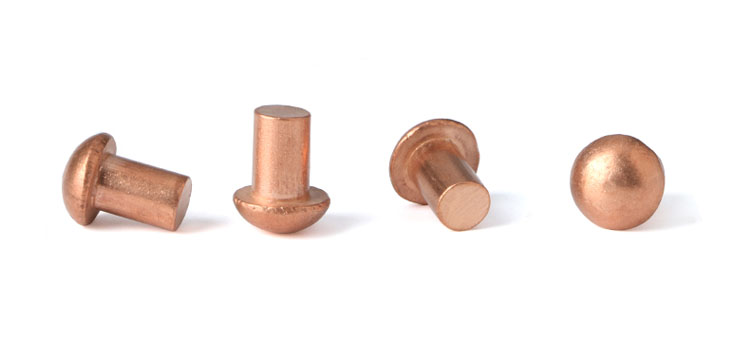

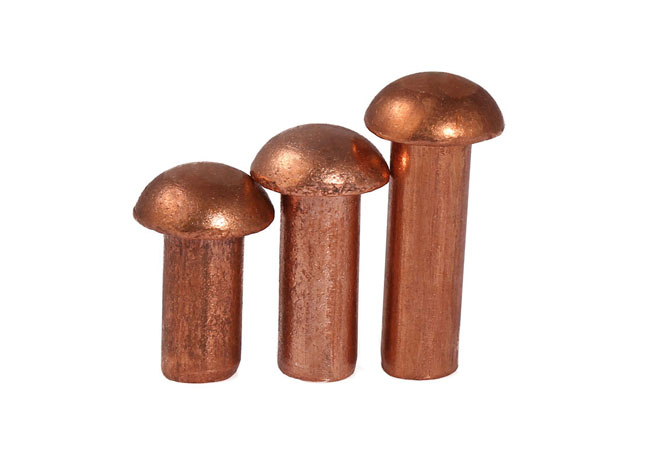

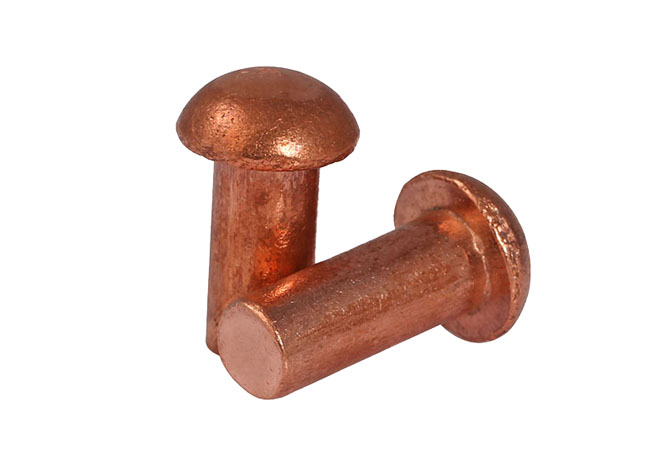

Red Copper knurling rivets are electrically conductive, nonmagnetic, and have good corrosion resistance.

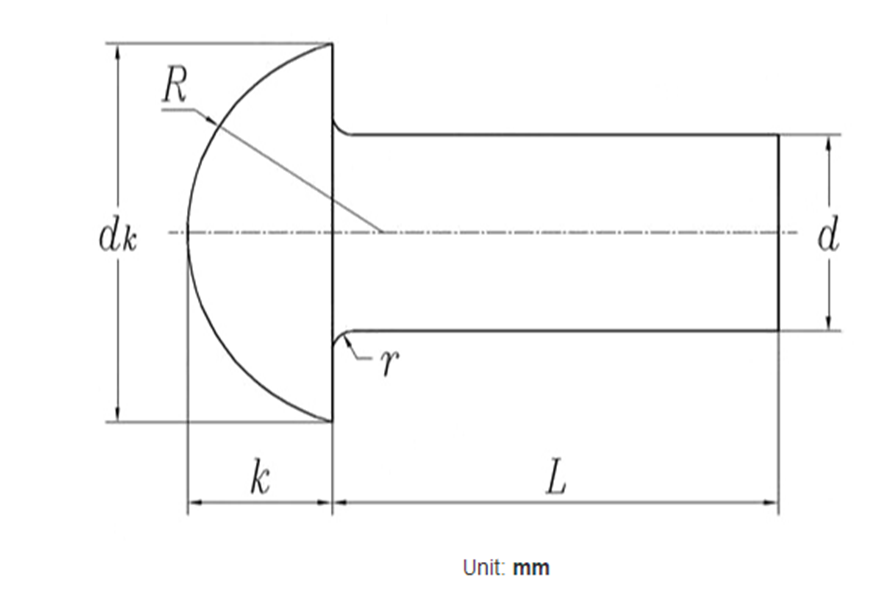

| Nominal Diameter d | Φ2 | Φ3 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | (Φ14) | Φ16 | ||
| d | max | 2.06 | 3.06 | 4.08 | 5.08 | 6.08 | 8.1 | 10.1 | 12.12 | 14.12 | 16.12 | |
| min | 1.94 | 2.94 | 3.92 | 4.92 | 5.92 | 7.9 | 9.9 | 11.88 | 13.88 | 15.88 | ||
| dk | max | 3.74 | 5.54 | 7.39 | 9.09 | 11.35 | 14.35 | 17.35 | 21.42 | 24.42 | 29.42 | |
| min | 3.26 | 5.06 | 6.81 | 8.51 | 10.65 | 13.65 | 16.65 | 20.58 | 23.58 | 28.58 | ||
| k | max | 1.4 | 2 | 2.6 | 3.2 | 3.84 | 5.04 | 6.24 | 8.29 | 9.29 | 10.29 | |
| min | 1 | 1.6 | 2.2 | 2.8 | 3.36 | 4.56 | 5.76 | 7.71 | 8.71 | 9.71 | ||
