Ti Alloy Nylon Nut

  • Brand:

    T,TGR,XDM,OEM as requirement
  • Brief:

    hex nylon lock nut
  • Surface:

    Black oxide,Nickel, Possivation, Tin, Zinc Clear, Zinc Yellow, Zinc black
  • Material:

    TA0,TA1,TA2 ,TC4(Ti-6Al-4V),TB5
  • Size:

    M3-M48,#2-1-1/2,Custom-made
  • MOQ:

    According to size
inquiry now
product details

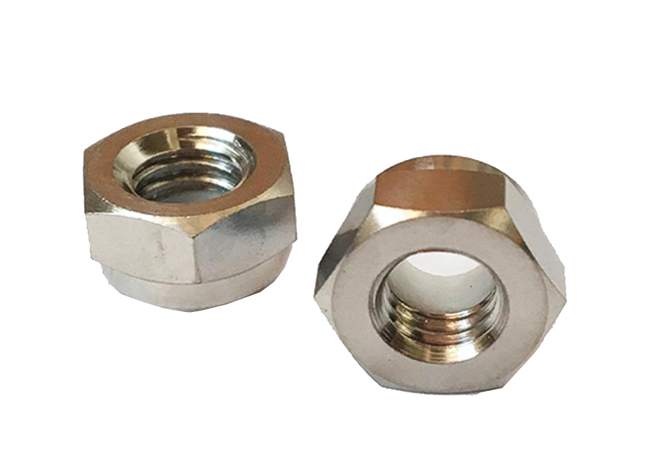

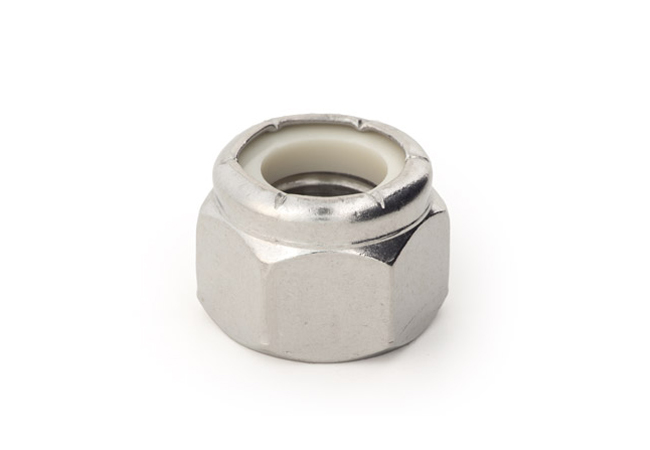

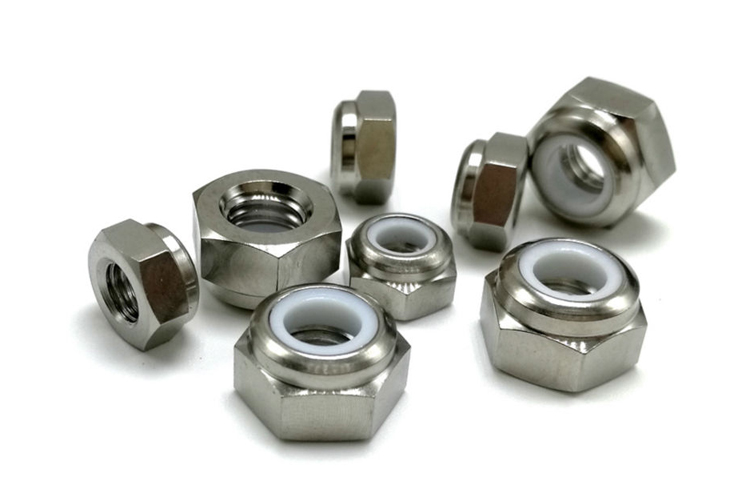

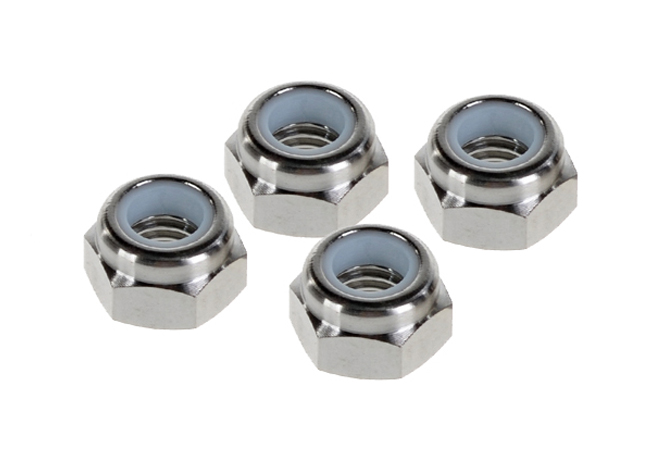

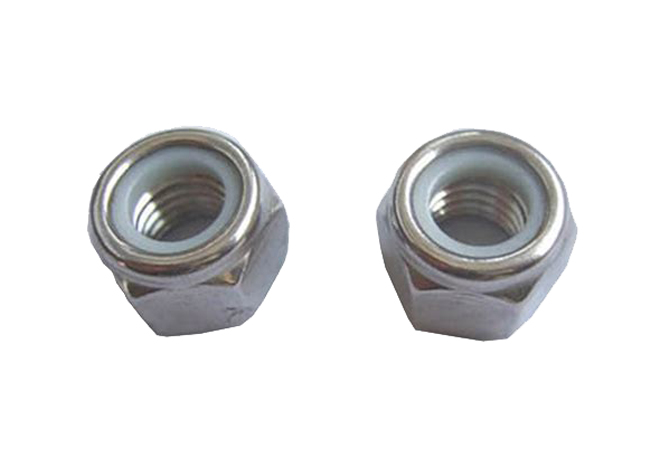

This nylon lock nut made by Titanium alloy. Nylon lock nuts differ from a standard hex nut in that they have a nylon insert secured within the nut. The nylon insert is located in a tapered section located at the back of the nut. When you install the nylon lock nut onto a bolt or threaded stud, the nylon insert wraps around the threads and locks the nut in place. They're reusable, but their holding power lessens with each use.

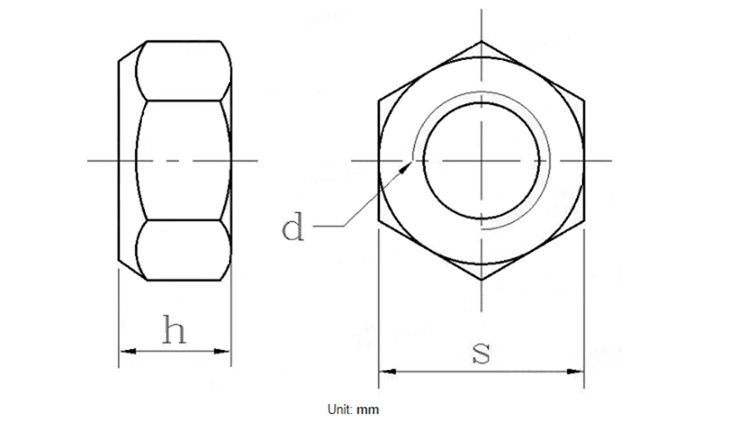

Screw Thread d M3 M3.5 M4 M5 M6 M8 M10 M10 M12 M14 M16 M20 M24 M30 M36
P Pitch 0.5 0.6 0.7 0.8 1 1.25 1.5 1.5 1.75 2 2 2.5 3 3.5 4
s max 5.5 6 7 8 10 13 16 15 18 21 24 30 36 46 55
min 5.32 5.82 6.78 7.78 9.78 12.73 15.73 14.73 17.73 20.67 23.67 29.16 35 45 53.8
h Class 5、10 All Metal max 3.1 3.5 4 5.3 5.9 7.1 9 9.7 11.6 13.2 15.2 19 23 26.9 32.5
min 2.65 3 3.5 4.8 5.4 6.44 8.04 8.7 10.37 12.1 14.1 16.9 20.2 24.3 29.4
Class 5、10 Top Insert max 4.5 5 6 6.8 8 9.5 11.9 12.5 14.9 17 19.1 22.8 27.1 32.6 38.9
min 3.9 4.3 5.3 6 7.2 8.5 10.9 11.5 13.9 15.8 17.9 21.5 25.6 30.6 36.9
Class 9 All Metal max 3.1 3.5 4 5.3 6.7 8 10.5 11.2 13.3 15.4 17.9 21.8 26.4 31.8 38.5
min 2.65 3 3.5 4.8 5.4 7.14 8.94 9.6 11.57 13.4 15.7 19 22.6 27.3 33.1
Class 9 Top Insert max 4.5 5 6 7.2 8.5 10.2 12.8 13.5 16.1 18.3 20.7 25.1 29.5 35.6 42.6
min 3.9 4.3 5.3 6.4 7.7 9.2 11.8 12.5 15.1 17.1 19.5 23.8 28 33.6 40.6
Nominal Diameter d 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 1-1/8
d Nominal Diameter 0.25 0.31 0.38 0.44 0.5 0.56 0.625 0.75 0.875 1 1.125
PP UNC 20 18 16 14 13 12 11 10 9 8 7
UNF 28 24 24 20 20 18 18 16 14 12 12
UNEF 32 32 32 28 28 24 24 20 20 20 18
s max 0.506 0.57 0.69 0.75 0.88 0.94 1.067 1.255 1.444 1.632 1.82
min 0.489 0.55 0,675 0.74 0.86 0.92 1.045 1.231 1.417 1.602 1.788
e min 0.556 0.62 0.76 0,829 0.97 1.04 1.175 1.382 1.589 1.796 2.002
h max 0.39 0.45 0,562 0.61 0.72 0.81 0.874 1.015 1.14 1.312 1.469
min 0.36 0.42 0.53 0.58 0.69 0.78 0.844 0.985 1.11 1.25 1.407
m min 0.29 0.34 0.39 0,464 0.54 0.66 0.677 0.79 0.883 1 1.096
Nominal Diameter d 1-1/4 1-3/8 1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 2-1/2 2-3/4 3
d Nominal Diameter 1.25 1.38 1.5 1.63 1.75 1.88 2 2.25 2.5 2.75 3
PP UNC 7 6 6 - 5 - 4.5 4.5 4 4 4
UNF 12 12 12 - - - - - - - -
UNEF 18 18 18 18 - - - - - - -
s max 2.008 2.2 2.38 2.57 2.76 2.95 3.137 3.514 4.015 4.015 4.64
min 1.973 2.16 2.34 2.53 2.72 2.9 3.086 3.457 3.875 3.875 4.5
e min 2.209 2.42 2.62 2.89 3.04 3.24 3.449 3.862 4.618 4.618 5.102
h max 1.672 1.83 1.95 2.17 2.38 2.42 2.469 2.876 3.204 3.204 3.704
min 1.61 1.77 1.89 2.11 2.25 2.3 2.343 2.75 3.078 3.078 3.578
m min 1.25 1.38 1.41 1.64 1.83 1.88 1.75 2.063 2.475 2.35 2.75
