Open end countersunk head blind rivet

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

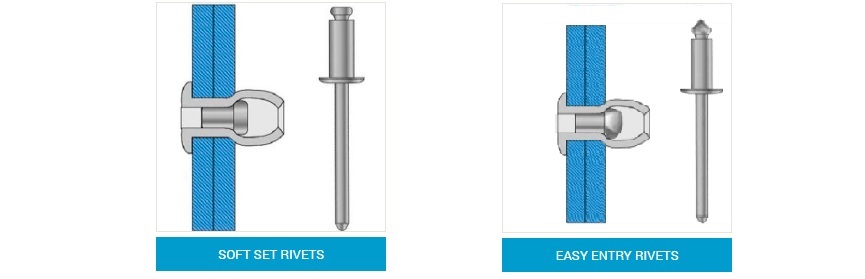

    Easy Entry Rivets, Soft Set Rivet

  • Surface:

    Black Oxide, Brass, Nickel, Passivation, Tin, Zinc Clear, Zinc Yellow, Zinc Black

  • Material:

    Aluminum/Aluminum,Aluminum/Steel,Steel/Steel,
    Stainless/Stainless,Stainless/Steel,Copper/Steel,
    Copper/Steel

  • Size:

    Φ3-Φ5,3/32-1/4,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Countersunk style are ideal when a flush surface installation is needed because they have a 120 degree angled head. Most blind rivets are Open End, which means that the rivet body is completely hollow.

Screw Thread d Φ2.4 Φ3 Φ3.2 Φ4 Φ4.8 Φ5
d max 2.48 3.08 3.28 4.08 4.88 5.08
min 2.25 2.85 3.05 3.85 4.65 4.85
dk max 5 6.3 6.7 8.4 10.1 10.5
min 4.2 5.4 5.8 6.9 8.3 8.7
k max 1 1.3 1.3 1.7 2 2.1
d1 max 1.55 2 2 2.45 2.95 2.95
L1 min 25 25 25 27 27 27
