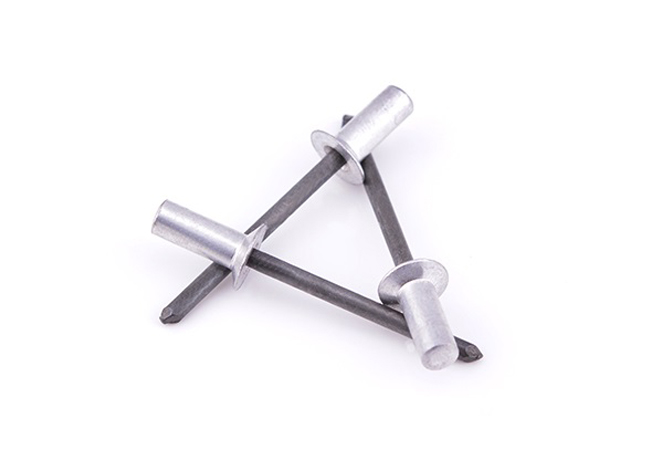

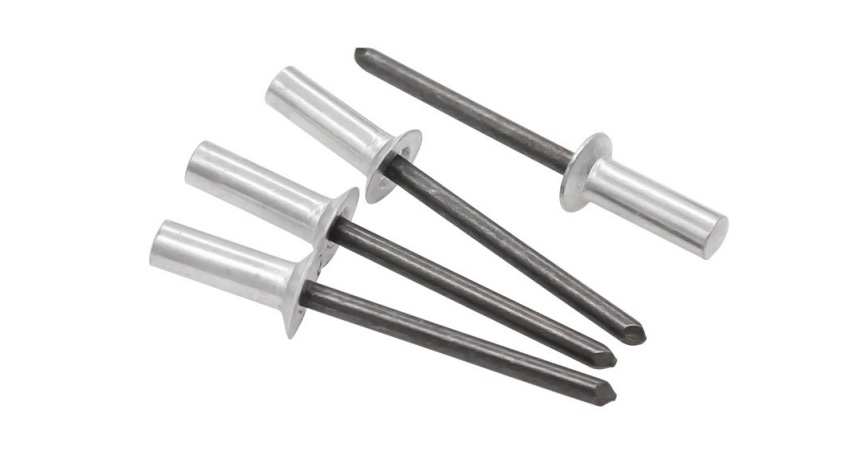

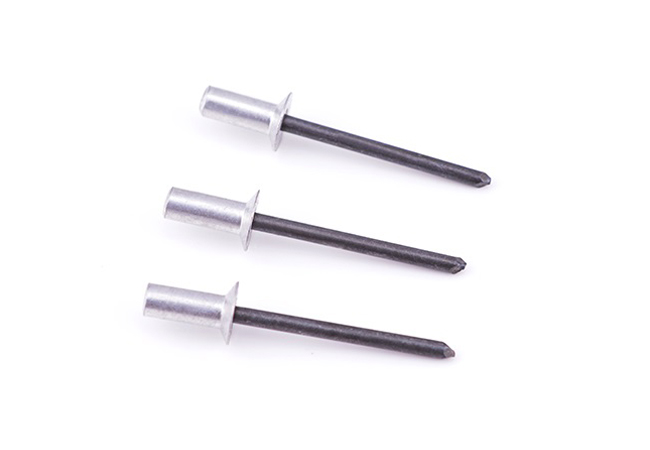

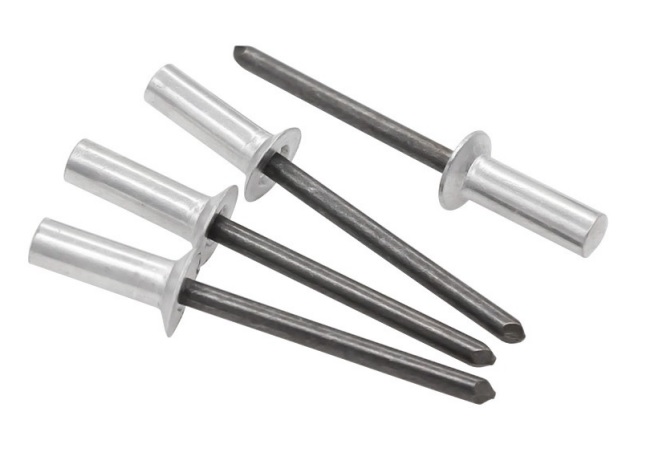

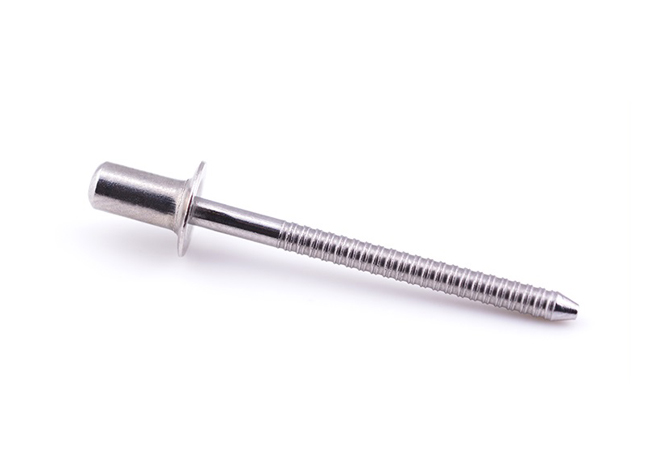

Closed end countersunk head blind rivet

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Dome Blind Rivets, Large Flange Rivets.

  • Surface:

    Black Oxide, Brass, Nickel, Passivation, Tin, Zinc Clear, Zinc Yellow, Zinc Black

  • Material:

    Aluminum/Aluminum,Aluminum/Steel,Steel/Steel,
    Stainless/Stainless,Stainless/Steel,Copper/Steel,
    Copper/Steel

  • Size:

    Φ3.2-Φ6.4,1/8-1/4,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Closed-End rivets prevent the passage of vapor or liquid through the set rivet. They also provide 100% mandrel retention. This means the head of the mandrel that breaks off stays in the set rivet. This assures that it won’t fall into your assembly and rattle around or short out electronics

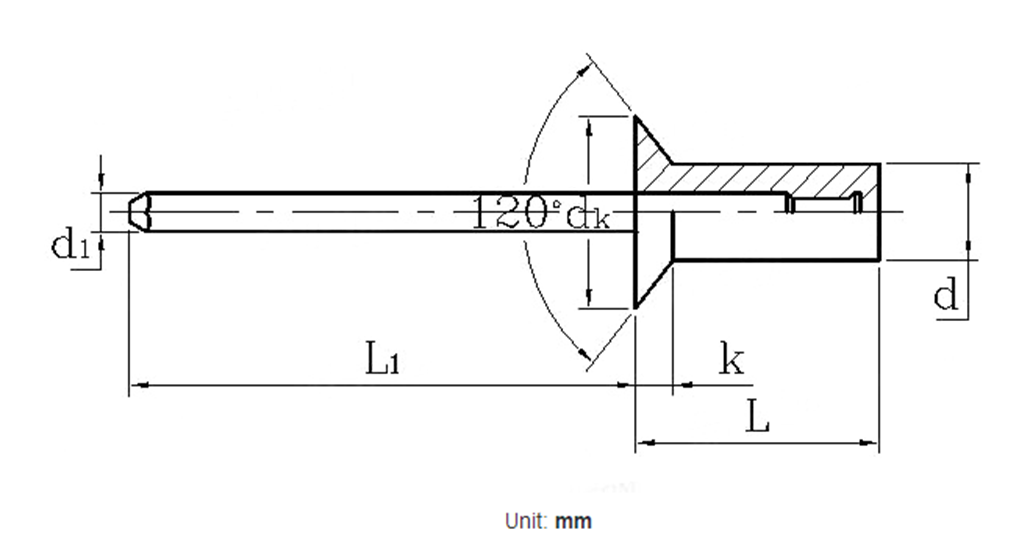

Nominal Diameter d Φ3 (Φ3.2) Φ4 Φ5 Φ6
d max 3.07 3.29 4.09 5.09 6.09
min 2.93 3.11 3.91 4.91 5.91
dk max 6.24 6.24 8.29 9.89 12.35
min 5.76 5.76 7.71 9.31 11.65
k max 1.2 1.2 1.4 1.6 2
d1 ≈ 1.8 1.8 2.18 2.8 3.6
L1 min 26 26 27 27 31
