Aerospace Blind Rivets: AN460, AN461, AN462, AN463, M24243, MS20600 - 20606, MS21140, MAS21141, MS21200, MAS21001, MS24661, MS24662, MS60353 - 90354, NAS454, NAS455, NAS1329, NAS1330, NAS1398, NAS1399, NAS1400, NAS1738, NAS1739, NAS1740, NAS1768, NAS1769, NAS1900, NAS1919, NAS1921, NAS9301 - NAS9312

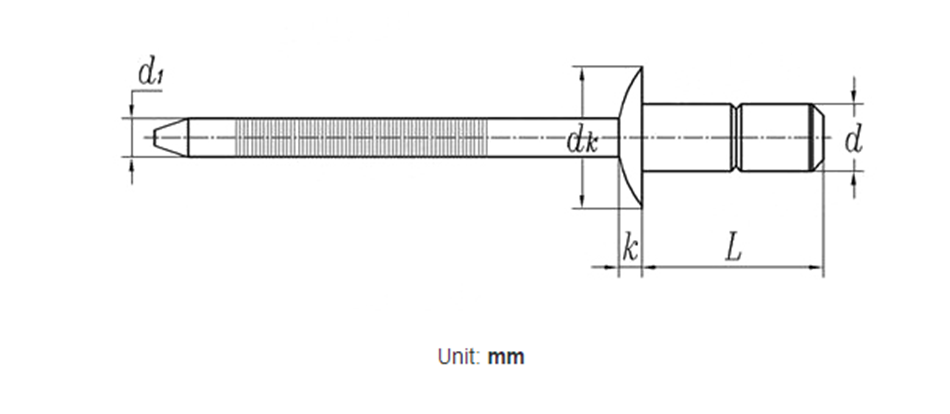

| Nominal Diameter d | 3.2 | 3.2 | 3.2 | 4 | 4 | 4 | 4.8 | 4.8 | 4.8 | 6 | 6 | 6 | 6 | ||
| L | max | 8.7 | 11.3 | 13.6 | 10.1 | 12.1 | 15.1 | 12.1 | 14.6 | 17.6 | 14.2 | 17.2 | 20.2 | 23.2 | |
| dk | max | 6.8 | 6.8 | 6.8 | 8 | 8 | 8 | 9.6 | 9.6 | 9.6 | 12.3 | 12.3 | 12.3 | 12.3 | |
| k | max | 1.4 | 1.4 | 1.4 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.1 | 2.1 | 2.1 | 2.1 | |
| d1 | max | 2.1 | 2.1 | 2.1 | 2.6 | 2.6 | 2.6 | 3.1 | 3.1 | 3.1 | 4 | 4 | 4 | 4 | |
