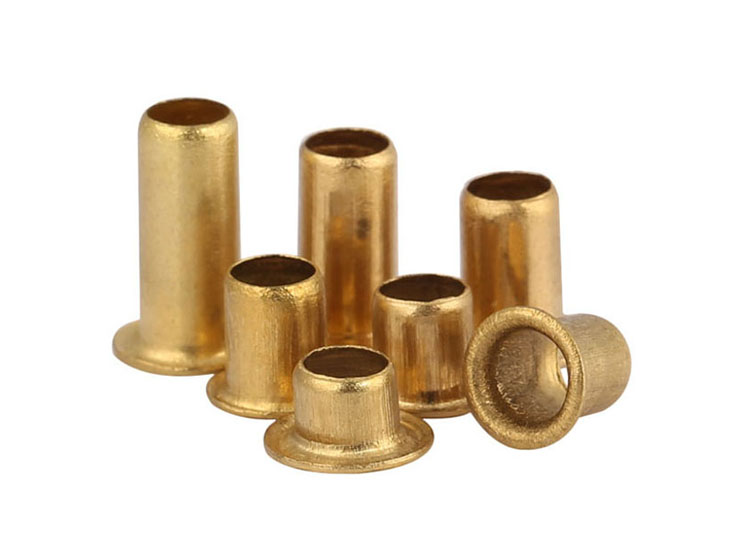

Tubular rivet

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Speed Fastening Rivet, Brake Lining Rivets

  • Surface:

    Black Oxide, Brass, Nickel, Passivation, Tin, Zinc Clear, Zinc Yellow, Zinc Black

  • Material:

    Aluminum,Steel,Stainless Steel,Copper

  • Size:

    1.4-6,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Aerospace Tubular rivets: AN450, MS20450, MS16535, MS16536, MS51499, MS51942, MS75112, LS1120,LS1121, LS10052, LS13971

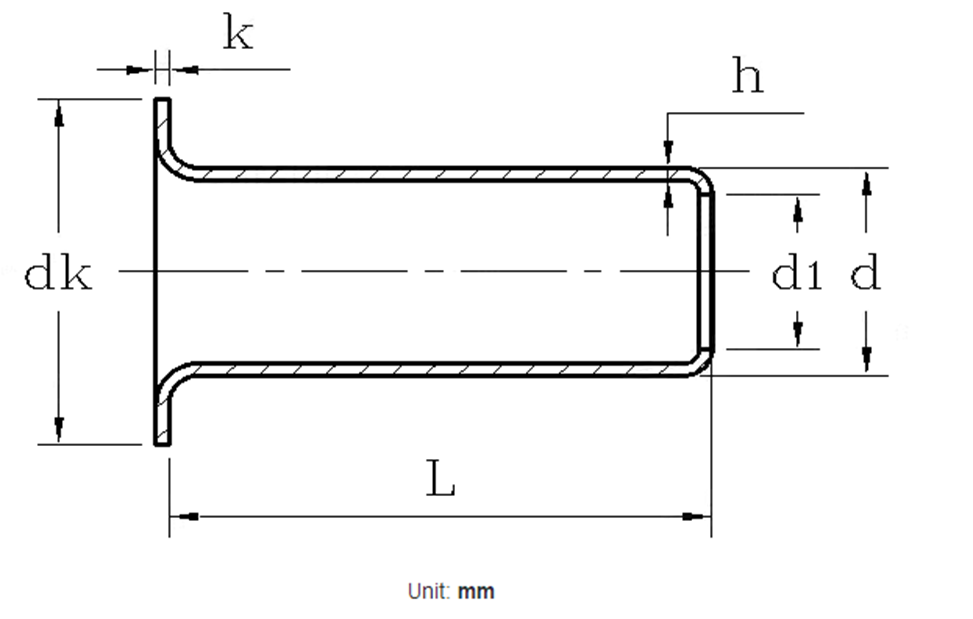

Nominal Diameter d Φ1.5 Φ2 Φ2.5 Φ2.5 Φ3 Φ3 Φ4 Φ4 Φ5 Φ5 Φ6
d max 1.53 2.03 2.55 2.55 3.07 3.07 4.07 4.07 5.07 5.07 6.1
min 1.47 1.97 2.45 2.45 2.93 2.93 3.93 3.93 4.93 4.93 5.9
dk max 3.3 3.8 4.3 4.8 5.3 6.3 6.875 8.375 8.375 10.375 10.375
min 2.7 3.2 3.7 4.2 4.7 5.7 6.125 7.625 7.625 9.625 9.625
d1 max=nominal size 1.096 1.53 2.01 1.9 2.49 2.27 3.38 3.05 4.38 3.83 5.02
min 0.696 1.13 1.61 1.5 2.09 1.87 2.98 2.65 3.98 3.43 4.62
h Nominal Size 0.17 0.2 0.2 0.25 0.2 0.3 0.25 0.4 0.25 0.5 0.4
max 0.187 0.22 0.22 0.275 0.22 0.33 0.275 0.44 0.275 0.55 0.44
min 0.153 0.18 0.18 0.225 0.18 0.27 0.225 0.36 0.225 0.45 0.36
