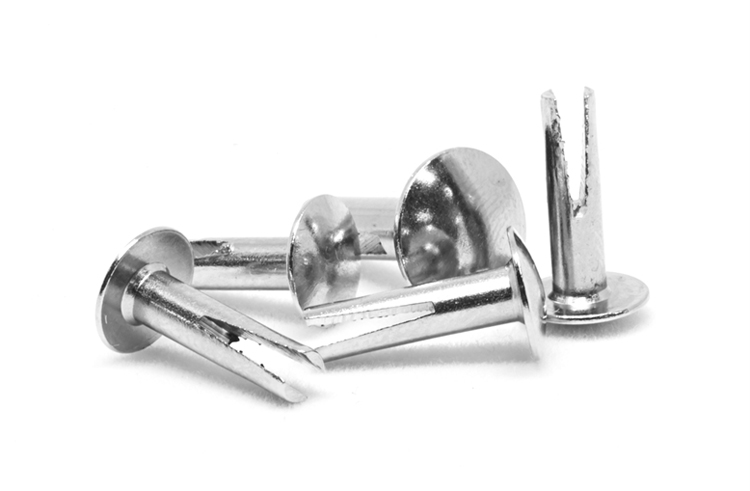

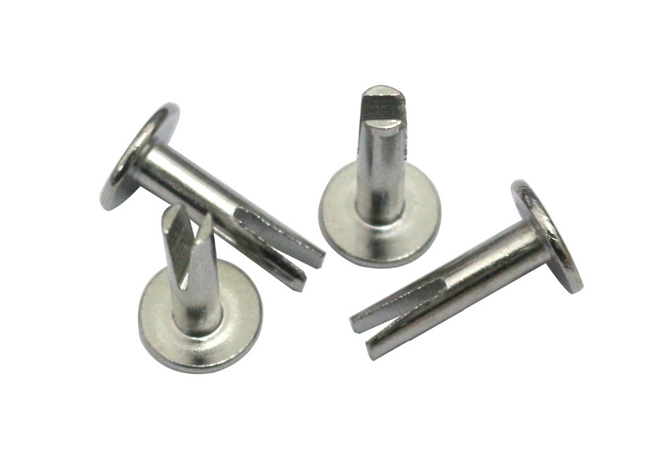

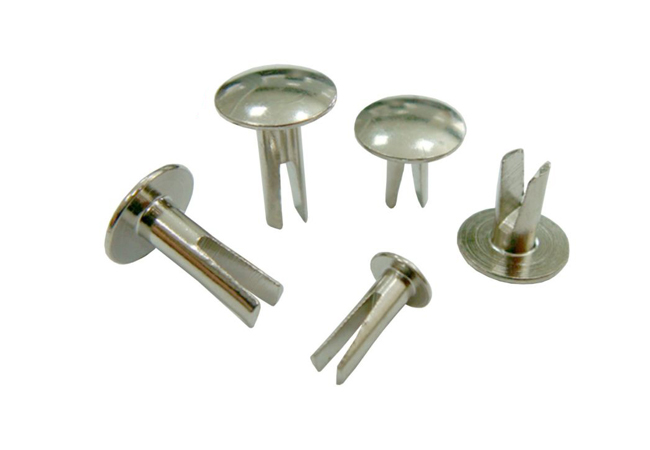

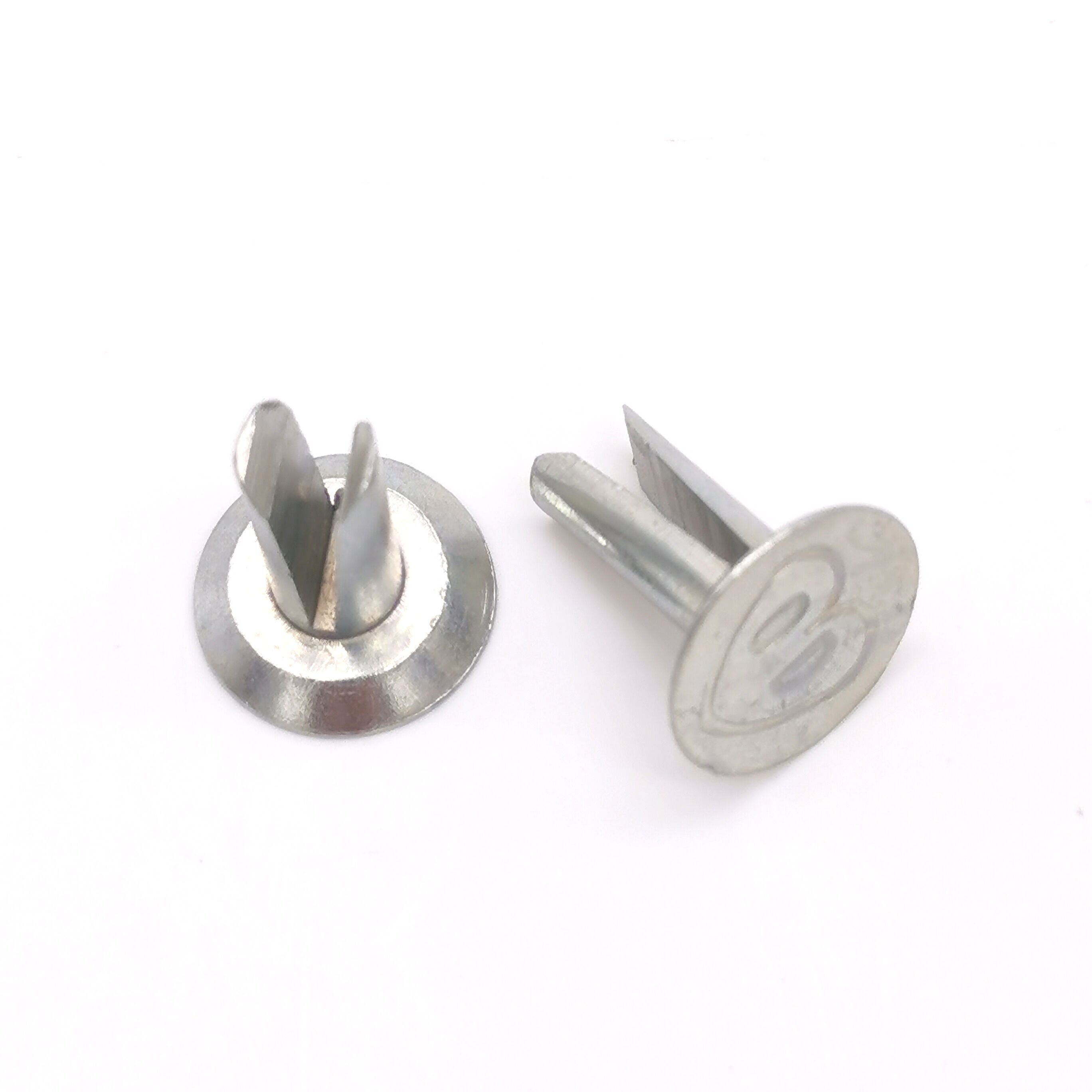

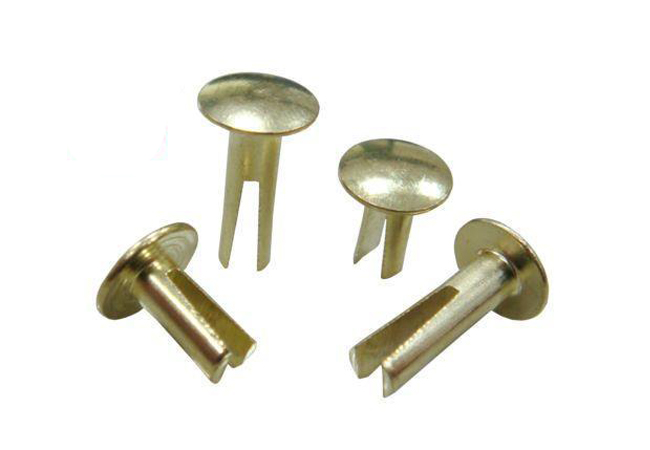

Split rivets contain a cone-shaped head and two tinelike legs. Our split rivets pierce soft materials, such as wood, light metals, leather and fibers. Possessing prong ends designed to roll back into the material, our split rivets provide a strong, smooth clinch. Minimum quantities start at 50,000 pieces.

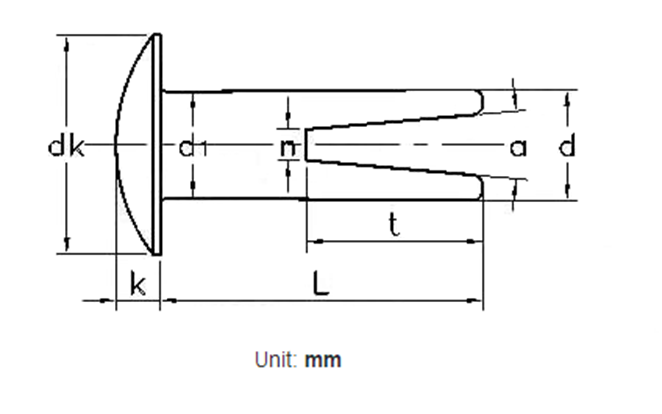

| size | d |
d1 min |
dk | n | k | |||||||
| max | min | max | min | max | min | max | min | |||||
| 2 | 2.05 | 1.95 | 1.9 | 4.2 | 3.72 | 0.75 | 0.5 | 0.7 | 0.56 | |||
| 2.5 | 2.55 | 2.45 | 2.4 | 5 | 4.52 | 0.85 | 0.6 | 0.88 | 0.74 | |||
| 3 | 3.05 | 2.95 | 2.9 | 6 | 5.52 | 1 | 0.75 | 1.05 | 0.91 | |||
| 4 | 4.06 | 3.94 | 3.9 | 8 | 7.42 | 1.25 | 1 | 0.28 | 1.03 | |||
| 5 | 5.06 | 4.94 | 4.9 | 9.7 | 9.12 | 1.45 | 1.2 | 1.6 | 1.35 | |||
