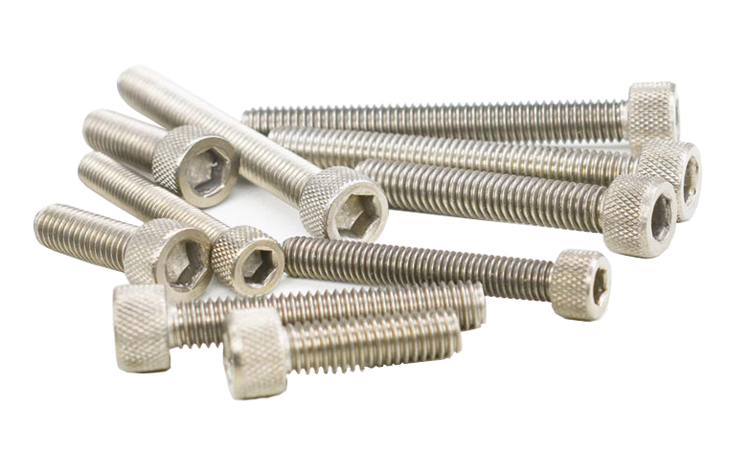

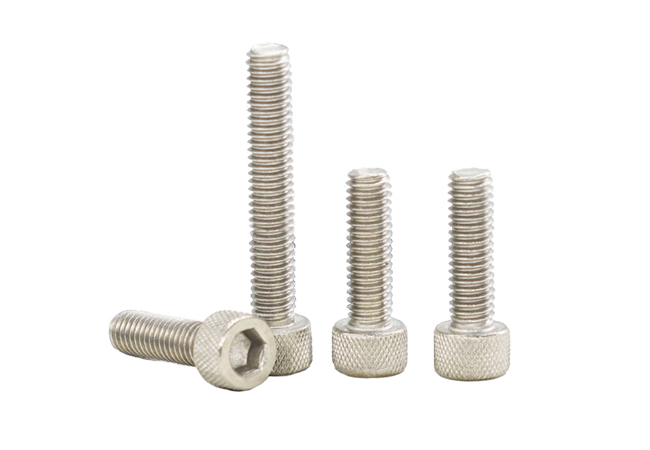

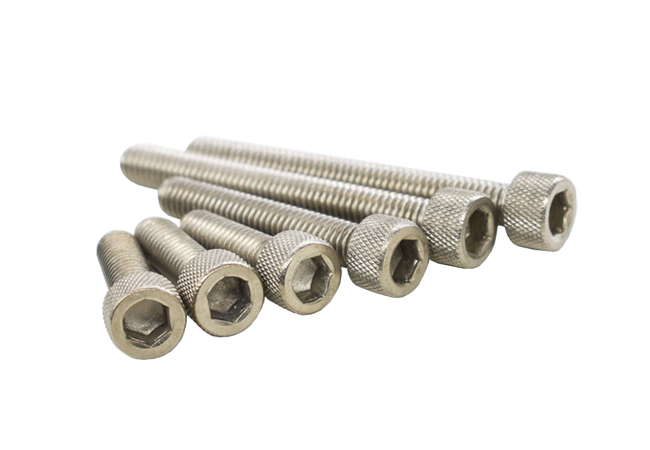

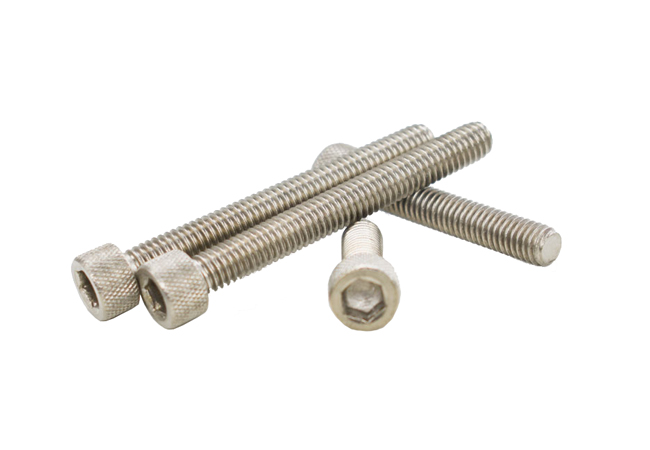

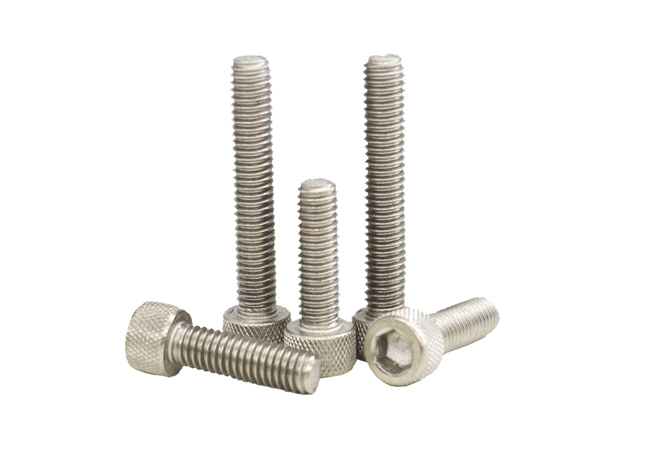

Ti Alloy Hexagon Socket Head Cap Screws

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN912,ISO4762,available for ISO ROHS,SGS

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    Customized

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

Relevant Standard:
ISO4762-1997,DIN912-1983,JISB1176-1988,ANSIB18.3.1M-1982,ANSIB18.3.1M-1993,JB/ZQ4352-2006,JISB1176-2006,UNI5931,ISO4762-2004,BS4168-1-1981,GB/T70-1985,JB/ZQ4725-2006,AS1420-2008,ASMEB18.3.1M-1987,NFE25-125-2004

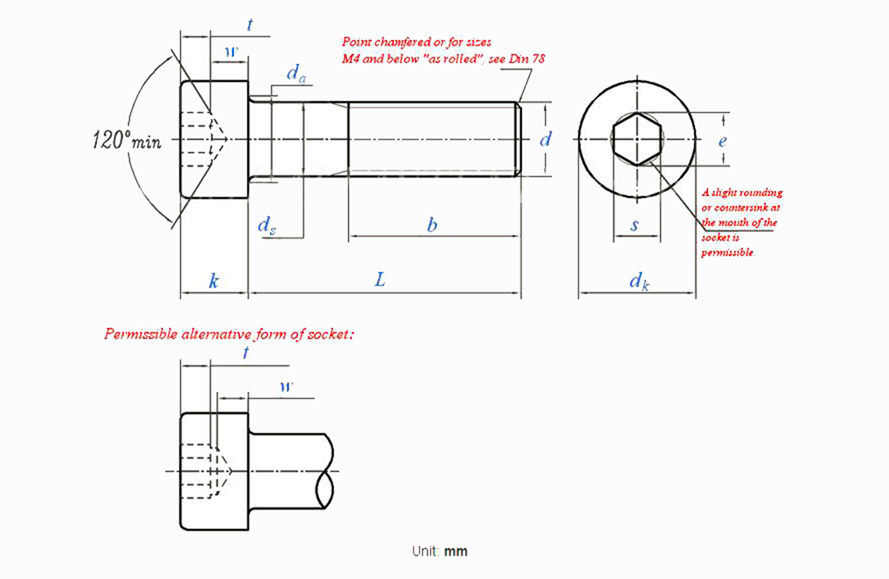

Screw Thread d M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
P Pitch Coarse thread 0.3 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
Fine thread pitch-1 - - - - - - - - 1 1.25 1.25 1.5 1.5 1.5 1.5
Fine thread pitch-2 - - - - - - - - - 1 1.5 - - 2 2
b Ref. 14 15 16 17 18 20 22 24 28 32 36 40 44 48 52
dk plain head max 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30
knurled heads max 2.74 3.14 3.98 4.68 5.68 7.22 8.72 10.22 13.27 16.27 18.27 21.33 24.33 27.33 30.33
min 2.46 2.86 3.62 4.32 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67
da max 1.8 2 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4
ds max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
e min 1.5 1.73 1.73 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72 16 16 19.44
k max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48
s Nominal Size 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12 14 14 17
min 1.32 1.52 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 12.032 14.032 14.032 17.05
max 1.36 1.56 1.56 2.06 2.58 3.08 4.095 5.14 6.14 8.175 10.175 12.212 14.212 14.212 17.23
t min 0.6 0.7 1 1.1 1.3 2 2.5 3 4 5 6 7 8 9 10
w min 0.5 0.55 0.55 0.85 1.15 1.4 1.9 2.3 3 4 4.8 5.8 6.8 7.8 8.6
Screw Thread d (M22) M24 (M27) M30 (M33) M36 M42 M48 M56 M64 M72 M80 M90 M100 　
P Pitch Coarse thread 2.5 3 3 3.5 3.5 4 4.5 5 6.5 6 6 6 6 6 　
Fine thread pitch-1 1.5 2 2 2 2 3 3 3 4 4 4 4 4 4 　
Fine thread pitch-2 2 - - - - - - - - - - - - - 　
b Ref. 56 60 66 72 78 84 96 108 124 140 156 172 192 212 　
dk plain head max 33 36 40 45 50 54 63 72 84 96 108 120 135 150 　
knurled heads max 33.39 36.39 40.39 45.39 50.39 54.46 63.46 72.46 84.54 96.54 108.54 120.54 135.63 150.63 　
min 32.61 35.61 39.61 44.61 49.61 53.54 62.54 71.54 83.46 95.46 107.46 119.46 134.37 149.37 　
da max 24.4 26.4 30.4 33.4 36.4 39.4 45.5 52.6 63 71 79 87 97 107 　
ds max 22 24 27 30 33 36 42 48 56 64 72 80 90 100 　
min 21.67 23.67 26.67 29.67 32.61 35.61 41.61 47.61 55.54 63.54 71.54 79.54 89.46 99.46 　
e min 19.44 21.73 21.73 25.15 27.43 30.85 36.57 41.13 46.83 52.53 62.81 74.21 85.61 97.04 　
k max 22 24 27 30 33 36 42 48 56 64 72 80 90 100 　
min 21.48 23.48 26.48 29.48 32.38 35.38 41.38 47.38 56.26 63.26 71.26 79.26 89.13 99.13 　
s Nominal Size 17 19 19 22 24 27 32 36 41 46 55 65 75 85 　
min 17.05 19.065 19.065 22.065 24.065 27.065 32.08 36.08 41.08 46.08 55.1 65.1 75.1 85.12 　
max 17.23 19.275 19.275 22.275 24.275 27.275 32.33 36.33 41.33 46.33 55.4 65.4 75.4 85.47 　
t min 11 12 13.5 15.5 18 19 24 28 34 38 43 48 54 60 　
w min 9.4 10.4 11.9 13.1 13.5 15.3 16.3 17.5 19 22 25 27 32 34
