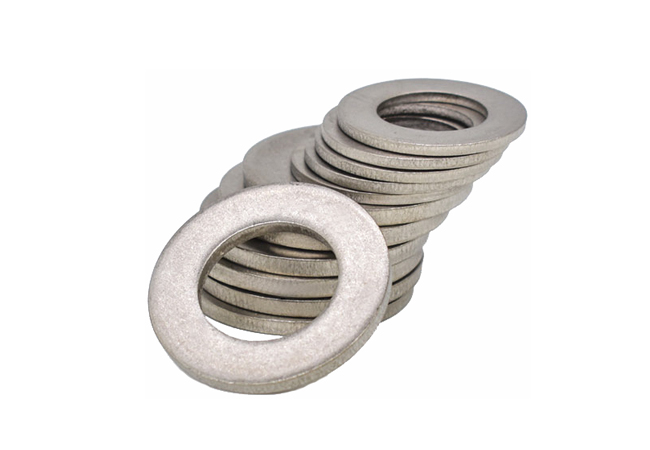

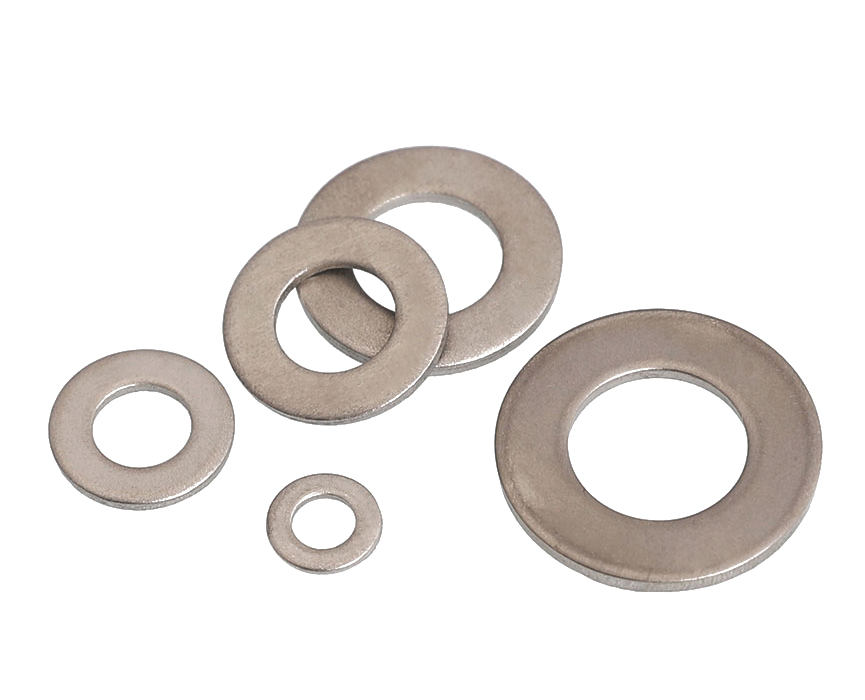

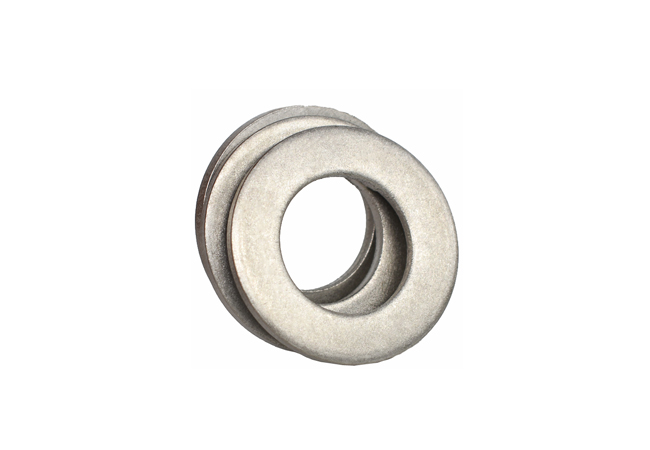

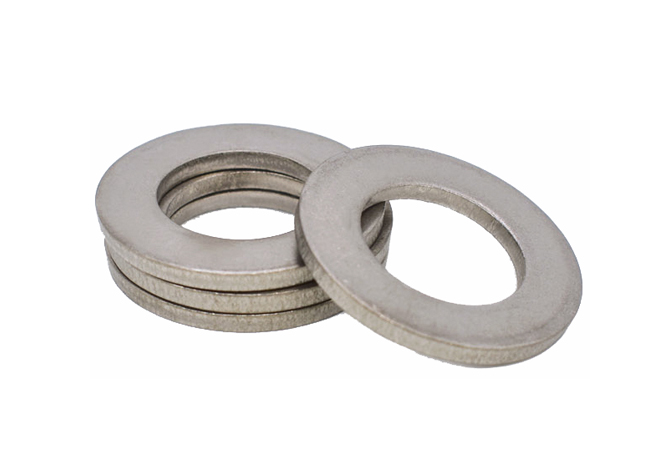

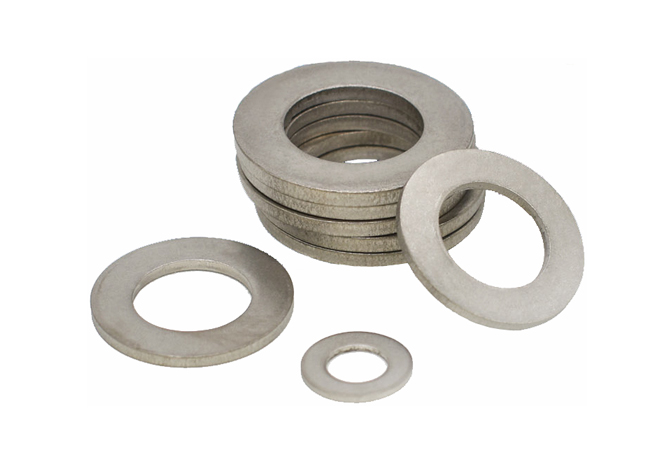

Ti Alloy Flat Washers

  • Brand:

    T,TGR,XDM,OEM as requirement
  • Brief:

    Titanium Washer, Ti Plain Washer
  • Surface:

    Plain Color, Bright.
  • Material:

    TA0,TA1,TA2 ,TC4(Ti-6Al-4V),TB5
  • Size:

    Φ1.7-Φ165,6#-3,Custom-made
  • MOQ:

    According to size
inquiry now
product details

Titanium washers are extremely corrosion resistant for use in marine environments and chemical-processing plants.

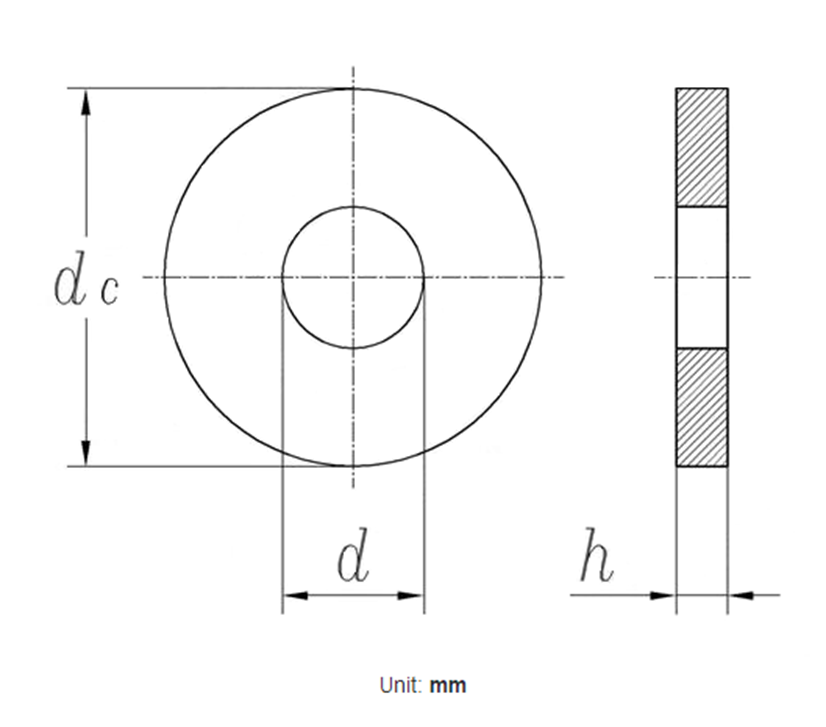

Nominal Diameter d Φ1.6 Φ2 Φ2.5 Φ3 (Φ3.5) Φ4 Φ5 Φ6 Φ8 Φ10 Φ12 (Φ14) Φ16 (Φ18) Φ20
d min 1.7 2.2 2.7 3.2 3.7 4.3 5.3 6.4 8.4 10.5 13 15 17 19 21
max 1.84 2.34 2.84 3.38 3.88 4.48 5.48 6.62 8.62 10.77 13.27 15.27 17.27 19.33 21.33
dc max 4 5 6 7 8 9 10 12 16 20 24 28 30 34 37
min 3.7 4.7 5.7 6.64 7.64 8.64 9.64 11.57 15.57 19.48 23.48 27.48 29.48 33.38 36.38
h Nominal Size 0.3 0.3 0.5 0.5 0.5 0.8 1 1.6 1.6 2 2.5 2.5 3 3 3
max 0.35 0.35 0.55 0.55 0.55 0.9 1.1 1.8 1.8 2.2 2.7 2.7 3.3 3.3 3.3
min 0.25 0.25 0.45 0.45 0.45 0.7 0.9 1.4 1.4 1.8 2.3 2.3 2.7 2.7 2.7
Nominal Diameter d (Φ22) Φ24 (Φ27) Φ30 (Φ33) Φ36 (Φ39) Φ42 (Φ45) Φ48 (Φ52) Φ56 (Φ60) Φ64
d min 23 25 28 31 34 37 42 45 48 52 56 62 66 70
max 23.33 25.33 28.33 31.39 34.62 37.62 42.62 45.62 48.62 52.74 56.74 62.74 66.74 70.74
dc max 39 44 50 56 60 66 72 78 85 92 98 105 110 115
min 38.38 43.38 49.38 55.26 58.8 64.8 70.8 76.8 83.6 90.6 96.6 103.6 108.6 113.6
h Nominal Size 3 4 4 4 5 5 6 8 8 8 8 10 10 10
max 3.3 4.3 4.3 4.3 5.6 5.6 6.6 9 9 9 9 11 11 11
min 2.7 3.7 3.7 3.7 4.4 4.4 5.4 7 7 7 7 9 9 9
