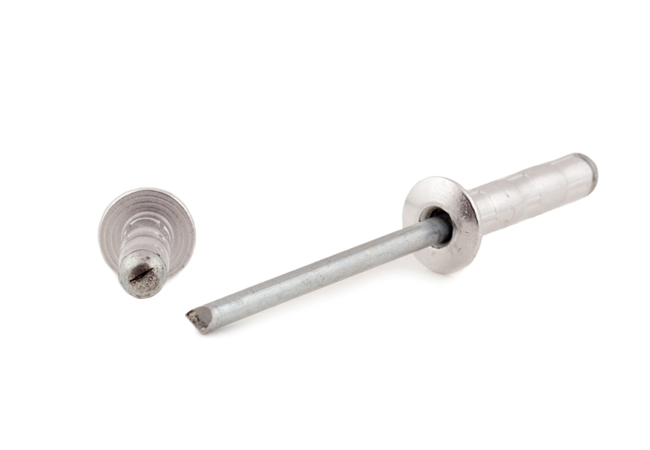

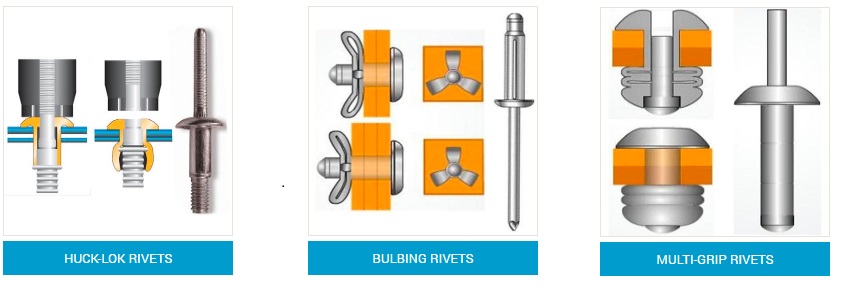

Ideal for projects where access to the joint is limited to only one side. Blind rivets (or “pop” rivets) are available in standard, structural, closed end and various other styles for a wide range of applications.

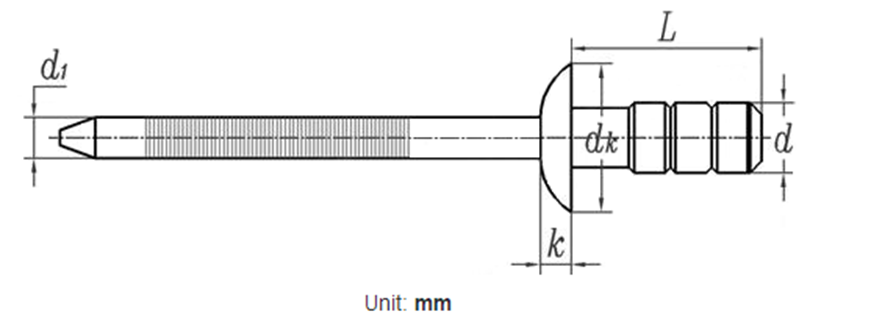

| Nominal Diameter d | 3.2 | 3.2 | 4 | 4 | 4.8 | 4.8 | 4.8 | 4.8 | 6.4 | |||
| L | max | 11 | 14.2 | 12.2 | 15.7 | 12.2 | 13.7 | 17 | 20.1 | 16.8 | ||
| dk | max | 7.6 | 7.6 | 8.4 | 8.4 | 10.1 | 10.1 | 10.1 | 10.1 | 10.1 | ||
| k | max | 1.1 | 1.1 | 1.5 | 1.5 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | ||
| d1 | max | 2.1 | 2.1 | 2.6 | 2.6 | 3.1 | 3.1 | 3.1 | 3.1 | 4 | ||
