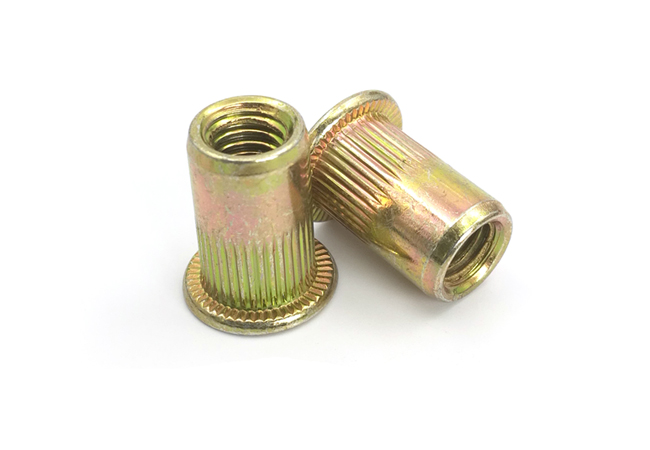

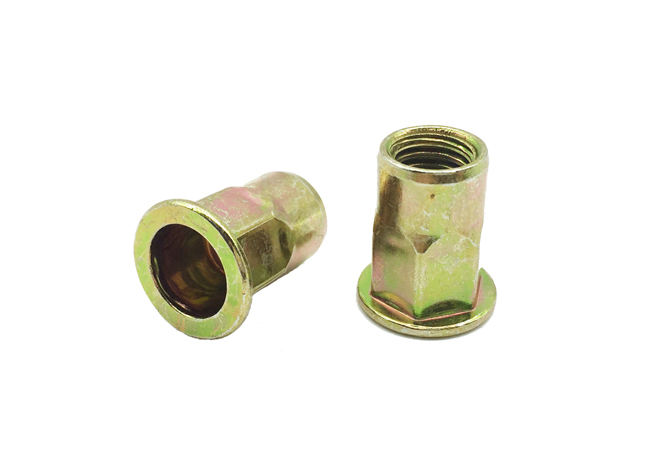

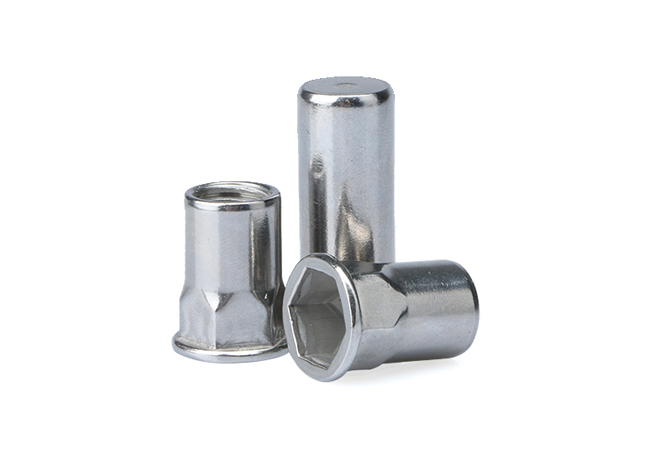

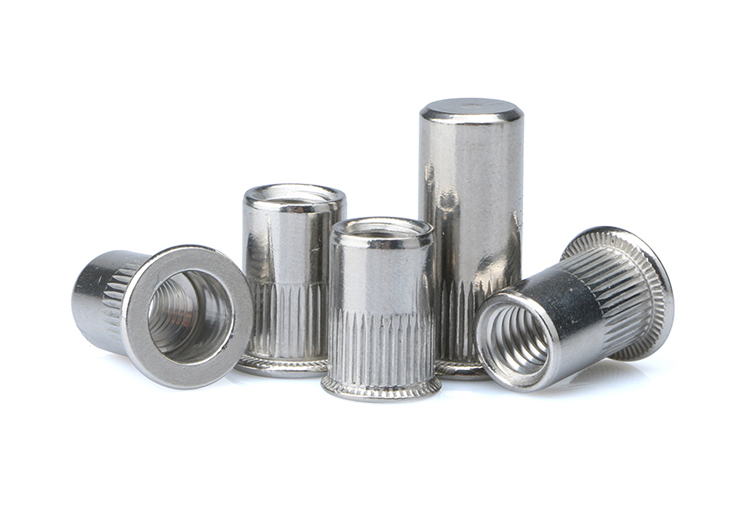

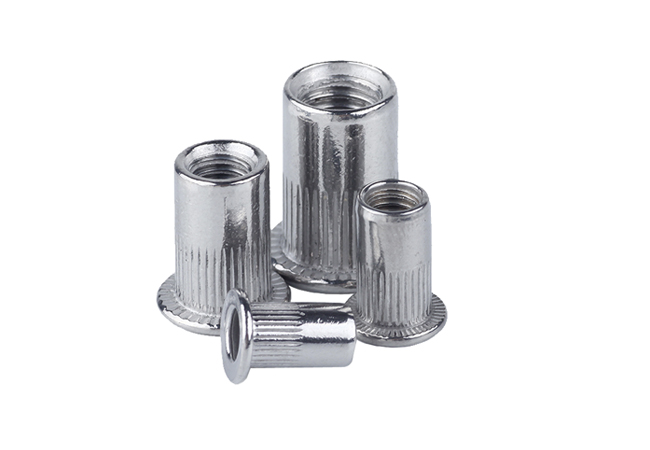

Rivet nuts (also know as rivnuts, blind nuts or nut-serts) are internally threaded inserts, used in applications with small material (wall) thickness. They create a strong thread in thin sheets of material for high strength fastening from bolts and other threaded articles.
They are easy-to-install, reliable fasteners that can provide a strong load-bearing thread into thin materials.

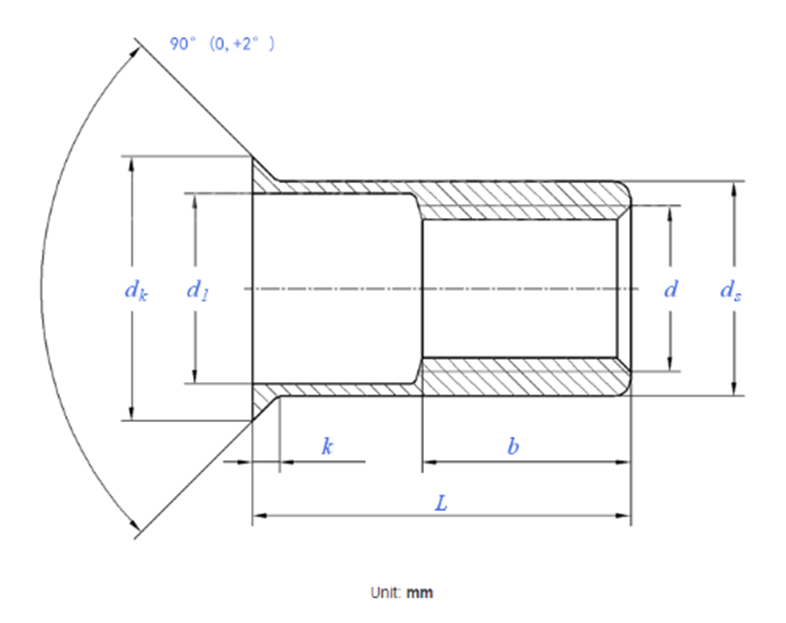

| Screw Thread d | M3 | M4 | M5 | M6 | M8 | M10 | M10 | M12 | M12 | ||
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1 | 1.5 | 1.75 | |
| ds | Nominal Size | 5 | 6 | 7 | 9 | 11 | 13 | 13 | 15 | 15 | |
| max | 4.97 | 5.97 | 6.97 | 8.97 | 10.97 | 12.97 | 12.97 | 14.97 | 14.97 | ||
| min | 4.9 | 5.9 | 6.9 | 8.9 | 10.9 | 12.9 | 12.9 | 14.9 | 14.9 | ||
| d1 | max | 4.12 | 4.92 | 5.72 | 7.65 | 9.35 | 11.18 | 11.18 | 13.18 | 13.18 | |
| min=nominal size | 4 | 4.8 | 5.6 | 7.5 | 9.2 | 11 | 11 | 13 | 13 | ||
| dk | max | 5.5 | 6.75 | 8 | 10 | 12 | 14.5 | 14.5 | 16.5 | 16.5 | |
| k | 0.35 | 0.5 | 0.6 | 0.6 | 0.6 | 0.85 | 0.85 | 0.85 | 0.85 | ||
