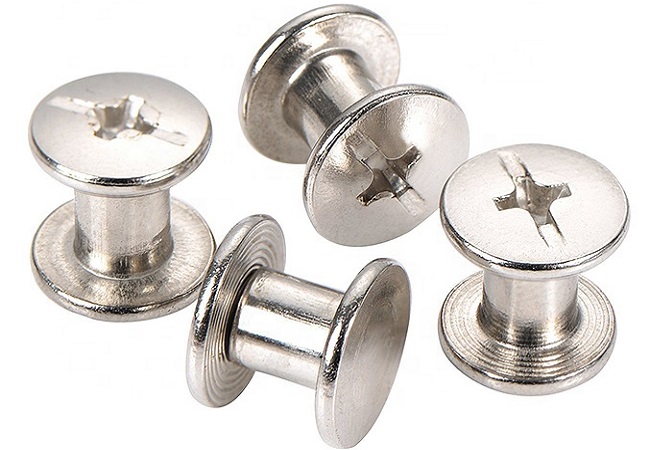

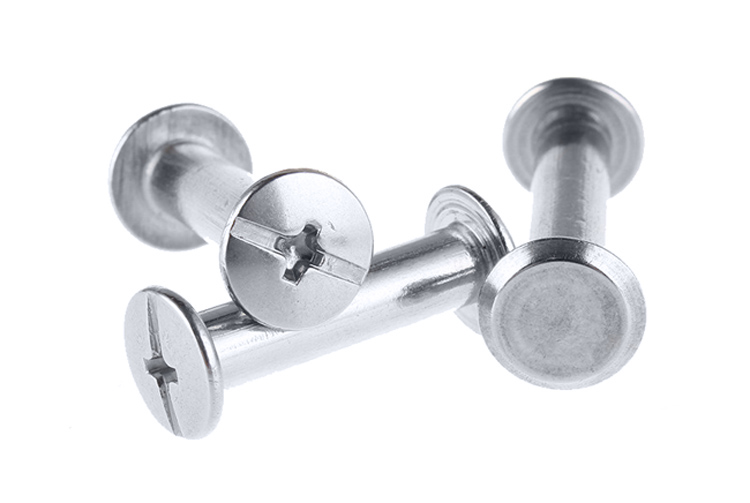

Stainless Steel Low-Profile Binding Barrels and Screws

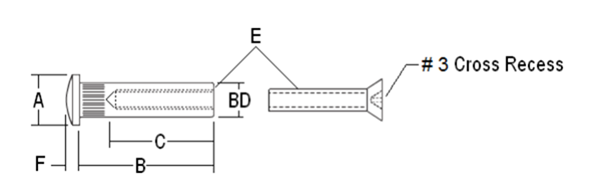

Made from stainless steel, these binding barrels and screws are chemical resistant and may be mildly magnetic. A thin head provides a nearly flush finish with the material surface. Barrel length and screw length are measured from under the head.

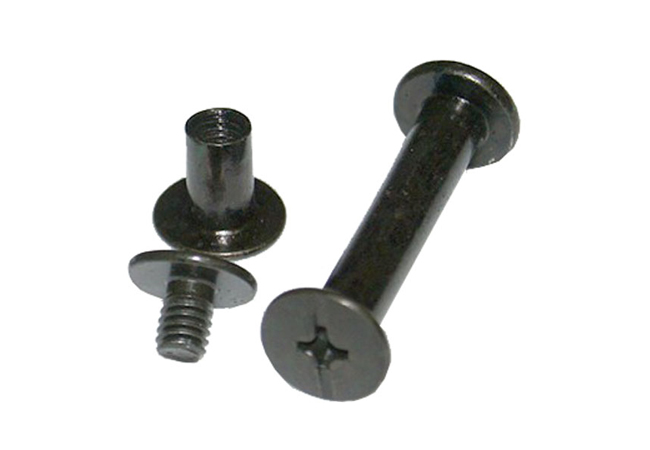

All 18-8 stainless steel barrels and screws have good chemical resistance. Black-oxide 18-8 stainless steel barrels and screws have a matte-black finish.
316 stainless steel barrels and screws have excellent chemical resistance and can be used in saltwater environments.
Open-end barrels are tapped through the head to provide more thread engagement when fastening thin materials.
| Thread | Thread | A | B |
| qty per inch | Min. (1) | Thread Length Code | |
| 0-80 | 80 | 0.187 | 0.094 |
| 2-56 | 56 | 0.187 | 0.156 |
| 4-40 | 40 | 0.25 | 0.187 |
| 6-32 | 32 | 0.375 | 0.25 |
| 8-32 | 32 | 0.437 | 0.375 |
| 10-32 | 32 | 0.5 | 0.375 |
| 12/24 | 24 | 0.5 | 0.375 |
| 1/4-20 | 20 | 0.625 | 0.5 |
| 5/16-18 | 18 | 0.625 | 0.5 |
| 3/8-16 | 16 | 0.625 | 0.625 |
| 7/16-14 | 14 | 0.625 | 0.625 |
